Biocare 3160A-3 Owner's Manual

Blood Pressure Owner's Manual
Dear 3160 System Owner :
Thank you for purchasing the Blood Pressure Monitoring System. This system is a fully
automatic, digital blood-pressure measuring device for use on the upper arm, it enables
very fast and reliable measurement of the systolic and diastolic blood-pressure as well as
the pulse frequency by way of the oscillometric method of measuring.
This manual provides important information to help you operate this system correctly.
Blood Pressure Monitoring System
Before using this product, please read the following contents thoroughly and carefully.
With the compact size and easy operation of this Blood Pressure Monitoring System, you
can easily monitor your blood pressure by yourself at any time or place. In addition, this
system can help you and your healthcare professionals to monitor and adjust your
treatment plans, and keep your blood pressure under control.
If you have other questions regarding this product, please contact the place of purchase.
Type BF applied part.
1. Use this device ONLY for the intended use described in this manual.
2. Do NOT use accessories which are not speci ed by the manufacturer.
3. Do NOT use the device if it is not working properly or damaged.
4. Do NOT use the equipment where aerosol sprays are being used, or where oxygen is
being administered.
5. Do NOT use under any circumstances on newborns.
6.This device does NOT serve as a cure for any symptoms or diseases. The data measured
are for reference only. Always consult your doctor to have the results interpreted.
7.Keep the equipment and its exible cord away from hot surfaces.
8.Do NOT apply the cu to areas other than the place directed.
9.Do NOT remove plastic wrapping membrane to ensure the waterproof function.
10.Proper maintenance and periodically calibration are essential to the longevity of
your device. If you are concerned about your accuracy of measurement, please
contact local customer service for help.
INTENDED USE
The 3160A-3 system is a system designed to measure the systolic and diastolic blood
pressure and pulse rate by using a non-invasive technique in which an in atable cu is
wrapped on the upper arm. It is intended for individuals age 18 and above for use at home
and in clinical settings. The device is not to be used for the diagnosis of hypertension or for
testing on newborns.
TEST PRINCIPLE
Blood pressure is measured non-invasively at the upper arm based on oscillometric
method. If you have been diagnosed with a severe arrhythmia or irregular heartbeat, atrial
or ventricular premature beats or atrial brillation, measurements made with this
instrument should only be evaluated after consultation with the doctor or your healthcare
Owner's Manual
professionals.
Electromagnetic interference
The device contains sensitive electronic components. Avoid strong electromagnetic elds
Model : 3160A-3 in the direct vicinity of the device (e.g. mobile phones, microwave ovens. Electrical
interference can lead to temporary impairment of the measuring accuracy).
Blood Pressure Owner's Manual

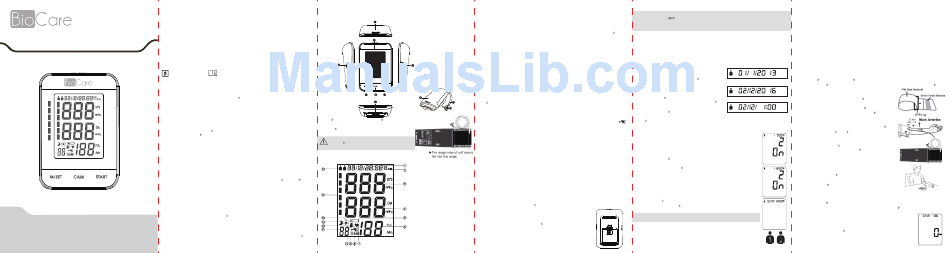

MONITOR OVERVIEW
Device
Read the instructions carefully before using this device.
IMPORTANT SAFETY PRECAUTIONS
READ THIS BEFORE USE
3160 o ers a wide range fan-type cu , measuring size :
22~38cm, suitable for most of arm circumferences;
Large cu (measuring range 32~42cm) is available as
special accessories.
Do not use accessories or equipment which are
not certi ed by manufacturer, they might increase
emissions or decrease immunity of this system.
DISPLAY SCREEN
KEEP THESE INSTRUCTIONS
BEFORE YOU BEGIN
Blood Pressure Owner's Manual
ADVANTAGES OF AUTOMATIC BLOOD PRESSURE
MONITOR
Blood Pressure Rate Indicator.
❶ O/I button
❷ Cuff socket Blood pressure rate indicator is located along the left side in the display. The classi cation
❸ M/SET Button corresponds to ESH (European Society of Hypertension) ranges described in the table of
❹ CAM Button the section «7.1. reference values».
❺ Start Button After the measurement, there appears the color bars in the left part of the display: green
❻ Battery Compartment zone - optimal blood pressure, yellow - elevated, orange - too high, red – dangerously
❼ DC Jack high. This function helps you to self-orient in the measurement results.
❽ LCD Display CAM technology – Clinically Accurate Measurement
❾ Air Tube
CAM Technology - Clinically Accurate Measurement - provides you with the maximally
❿ Air Plug
accurate results of blood pressure measurement at home. Cardiologists recommend
Cuff
always take several repeated measurements and calculate their average values. The device
in the CAM mode automatically takes 2 measurements in succession, analyzes the results
and displays the ready values.
Irregular Heartbeat Detection Advanced
I
HB advanced is an oscillometric waveform technology which is more sensitive, but not
speci c, to identify varying rhythm symptom such as skipped heartbeats, abnormally
rapid (Tachycardia), or slow (Bradycardia) pulse and Atrial Fibrillation occurring during the
measurement, while regular IHB (Irregular Heart Beat) feature in the market is to detect a
condition where the heartbeat rhythm varies by more than certain percentage from the
average heartbeat detected during the measurement, If the symbol of IHB advanced
appears on the display that means that certain abnormality in heart beat frequency was
detected during the measurement. In this case, the result may deviate from your normal
blood pressure – repeat the measurement. In most cases, this is no cause for concern.
However, if the symbol appears on a regular basis (e.g. several times a week with
measurements taken daily) we advise you to tell your doctor.
Please show your doctor the following explanation :
Information for the doctor on frequent appearance of the Irregular Heartbeat
Detector This instrument is an oscillometric blood pressure monitor that also
analyses pulse frequency during measurement. The instrument is clinically tested.
1.Time Date
2. Alarm Clock The symbol is displayed after the measurement, if pulse irregularities occur during
3. Systolic Pressure measurement. If the symbol appears more frequently (e.g. several times per week
on measurements performed daily) we recommend the patient to seek medical 10
4. Diastolic Pressure
5. Low battery Icon advice. The instrument does not replace a cardiac examination, but serves to detect
6. Pulse Rate pulse irregularities at an early stage.
7. AF Icon
8. CAM Mode
SETTING THE MONITOR
9. Heartbeat Icon
Before using your monitor for the rst time, check and update these settings. Make sure
10. Irregular Heartbeat Detector
you complete the steps below and save the desired settings.
11. Memory Set
12. Memory Icon
INSERT BATTERIES
13. Night Time Icon
After you have unpacked your device, rst insert the attached
14. Day Time Icon
batteries (4 x size AAA 1.5V) with the indicated polarity. The battery
15. Traffic Light Indicator
compartment is located at the bottom side of the device (see
16. User Icon
illustration).
Blood Pressure Owner's Manual Blood Pressure Owner's Manual
TESTING YOUR BLOOD PRESSURE
NOTE
• After the warning appears, device is blocked till the batteries have been replaced.
BEFORE MEASUREMENT
• Please use «AAA» 1.5V Batteries.
• Avoid caffeine, tea, alcohol and tobacco for at least 30 minutes before measurement.
• If the blood-pressure monitor is left unused for long periods, please remove the batteries.
• Wait 30 minutes after exercising or bathing before measurement.
• Sit or lie down for at least 10 minutes before measurement.
USE A MAINS ADAPTOR
• Do not measure when feeling anxious or tense.
The 3160 Series Blood Pressure Monitor can be operated with a mains adapter (output 5 V
• Take a 5-10 minutes break between measurements. This break can be longer if necessary,
DC / 600 mA).
depending on your physical condition
a. Connect the micro plug to the socket at the device right side.
• Keep the records for your doctor as reference.
b. Plug the mains adapter (output 5 V DC / 600 mA) to a 100-240V electrical power socket.
• Blood pressure naturally varies between each arm. Always measure your blood pressure
on the same upper arm.
ENTER THE SETTING MODE
Insert batteries or press the O/I button at the back
FITTING THE CUFF PROPERLY
side of the device, then touch and hold M/SET
button for 3 seconds until the "2013" ashes on
a. Plug the cu connector to the cu socket on the device left side.
the upper right corner.
b. Assemble the cu as shown below. The smooth surface should be inside of the cu loop
and the metal D-ring should not touch your skin.
SETTING THE DATE AND TIME
c. Stretch your left (right) arm in front of you with your
a. When the year ashes, press M/SET button until the
palm facing up. Slide and place the cu onto your
correct year appears.Press CAM button to con rm
arm to let the air tube and artery mark region toward
and change to Month setting.
the lower arm. Wrap and tighten the cu above your
b. When the month ashes, press M/SET button until
elbow. The artery mark on the edge of the cu should
the correct month appears. Press CAM button to
be approx. 0.8" to 1.2" (2 cm to 3 cm) above your elbow.
con rm and change to date setting.
Align the tube over the main arteries on the inside.
c. Set the day, hour and minute in the same way as
d.Leave a little free space between the arm and the cu :
described above.
you should be able to t two ngers between them.
Remove all clothing covering or constricting the
SETTING THE ALARM
measurement arm.
This 3160 Series upper arm blood pressure monitor allows you to set
e. Press the hook material rmly against the pile material.
2 alarm clocks as a reminder to take medication or measurements.
The top and bottom edges of the cu should be
a. Device in standby status, hold M/SET then hold CAM button. Release
tightened evenly around your upper arm.
both buttons, "1" ashes on the screen, press M/SET button to toggle
between alarm "1" and "2".
PROPER MEASUREMENT POSITION
b. Touch CAM button, hour ashes, touch M/SET button to set the
Sit down for at least 10 minutes before measuring.
desired hours and touch CAM button for the next minute setting.
a. Place your elbow on a at surface. Relax your hand with
the palm facing up.
b. Make sure the cu is about the same height as the location
c. At the time of alarm, the meter beeps automatically. You can touch
of your heart.
any button to silence it immediately.
c. Press the O/I button to switch on the monitor.
d. Remain still and do not talk or move during the measurement.
How to switch o the alarm permanently : hold CAM button when the
WARNING If the cu is relatively lower (higher) than the heart, the obtained blood pressure
alarm number "1" or "2" is ashing, release as "On" is changed to "OFF"
value could be higher (lower) than the actual value. A 15 cm di erence in height may result
on the display
in an error around 10 mmHg.
NOTE : The alarm times must be re-entered each time the batteries are
TAKING MEASUREMENTS
replaced.
USER NUMBER SELECTION. TAKING A SINGLE MEASUREMENT
This 3160 Series system supports measurement for two users. Before
Always apply the pressure cu before turning on the monitor.
measurement, make sure you set the unit for the intended user: device
a. Turn on the monitor by pressing the O/I button at the back side.
in standby status, hold START then M/SET button, till user icon switches
to another one.
