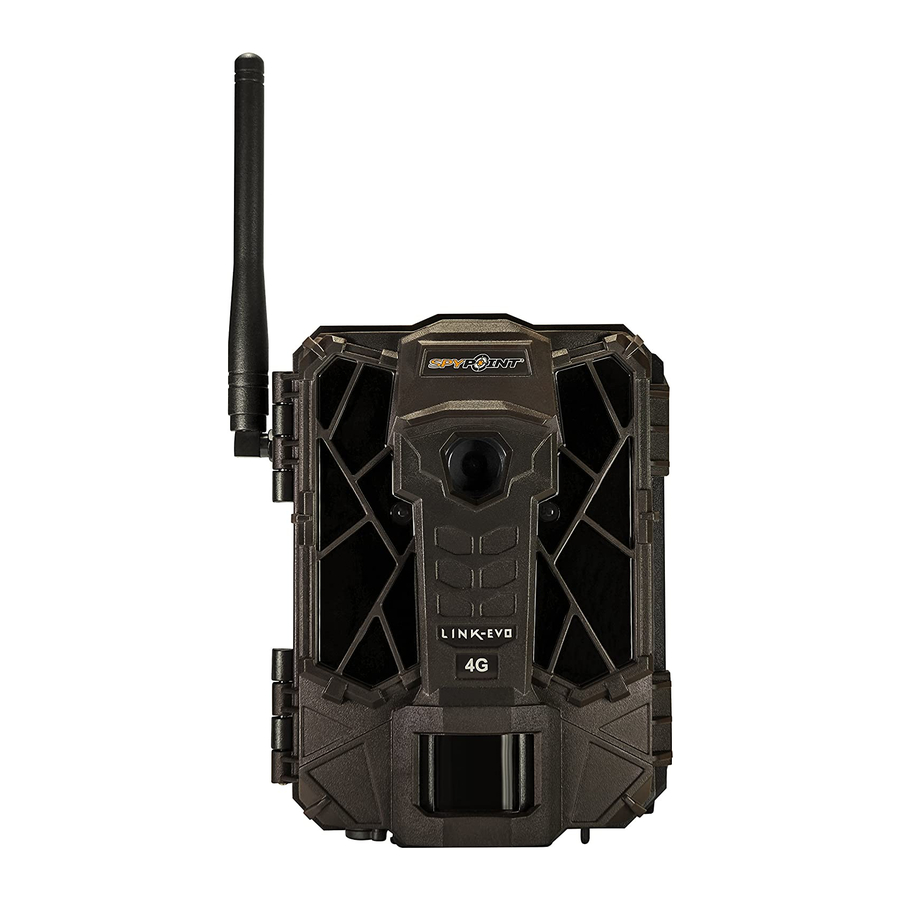

Spypoint LINK-EVO Quick Start Manuals

IN THE BOX & COMPONENTS
Note: Memory card and batteries are sold separately.
QUICK START GUIDE
LINK-EVO
LINK-EVO-V
( US ONLY )
• TRAIL CAMERAS
• HUNTING TABLET
*Micro SIM card is preactivated and inserted in the camera
1 Antenna
LEDs
2
• ACTION CAMERAS
3 Photo lens
4 Light sensor
Test light
5
& ACCESSORIES 6 Signal meter
ON / OFF Switch
7
8 SD card slot
User manual, latest firmware
9 Detection lens
& FAQ available at:
10 Battery case &
www.support.spypoint.com
Micro SIM card reader
support@spypoint.com

1-888-779-7646

v1.3

Mounting Quick start
Camera
bracket guide


Micro Installation
SIM card* strap
Slot for installation strap
11
Locking latch
12
Cable lock hole
13
14 12V jack
Tripod mount
15
16 Battery door push button
 Steel security boxes may reduce the
wireless functionalities of the product.
CAMERA BASICS
REMOVE CAMERA FROM THE MOUNTING BRACKET
1
• Push the tab to release the camera from the mounting bracket.
• Remove the camera.
2
3 CHOOSE A POWER SOURCE
4
You can use either 8 alkaline or lithium AA batteries; our LIT-09/
LIT-C-8 lithium battery pack; an external 12V power source. In order
5
to get best results and longer battery life, we recommend the use of an
external 12V source like the ones below.
6
7
8
9
Rechargeable 12V 12V DC 12-volt
battery, charger Power cable AC Adaptor
& housing kit
To open the battery compartment door for the AA batteries or our
lithium battery pack, push the button under the camera. To ensure
10
maximum performance of the camera with AA batteries and prevent
battery leak, we recommend the use of 8 new batteries. Make sure
11 to insert each AA battery with the correct polarity. Do not mix battery
type - use ALL alkaline or ALL lithium. Rechargeable AA batteries are not
recommended as the lower voltage they produce can cause operational
12
issues.
13
Observe the proper battery polarity orientation according
to the (+) and (-) marks when installing AA batteries.
14
15
16
INSERT THE MEMORY CARD
Before inserting or removing a memory card, always turn off the camera
to prevent loss or damage of the photos already recorded. Also make
sure that the switch on the side of the card is not in the LOCK position.
THANK YOU
Insert an SD/SDHC memory card (up to 32 GB capacity) in the card
slot, gold contacts facing down as shown on the camera. The card is
inserted correctly when a click is heard.

We suggest to format your SD card if it's been in another electronic
device to make sure you will have the maximum capacity of your
memory card.
Our goal is to design & manufacture
FINDING THE SIM ID
innovative,
hunting industry and to cater to all hunters
The SIM ID number can be found in the battery case. You will need
passionate about the lifestyle that is
this number to complete the registration of the LINK-EVO camera and
hunting. We strive on offering all customers
connect to the application.
a positive, user friendly experience that will
have a lasting impression.
