- Page 1 I N S TA L L AT I O N & S E T U P G U I D E i D E V I C E S S M A R T H O M E S O L U T I O N S...
- Page 2 • Wi-Fi 2.4 GHz 802.11 b/g/n Compatible Network ® • Router Security Settings Supported: WPA, WPA2, Or None • Free iDevices Connected App ® • 120VAC “Line” (usually black, blue or red) And “Neutral”(usually white) Wires • Controlling this HomeKit-enabled accessory requires an iPhone, iPad, or iPod touch with iOS 8.1 or later...
- Page 3 ® mechanical motion, or could create a hazardous condition when operated while unattended. • The iDevices Wall Outlet is not user-serviceable. Do not attempt to open the enclosure for any reason. ® • The iDevices Wall Outlet must be installed in a manner that conforms to all applicable national, ®...
-
Page 4: Before You Start
B E F O R E Y O U S TA RT • Read through this Installation Guide in its entirety before starting installation of your iDevices Wall Outlet or removal of your old ® outlet. Incorrect installation can be dangerous and can damage your iDevices Wall Outlet or your home. - Page 5 Wi-Fi signal strength. ® • Check that your mobile device is compatible with the iDevices ® Wall Outlet at iDevicesinc.com/Compatibility • It is YOUR responsibility to be sure that products are installed in accordance with applicable building codes.

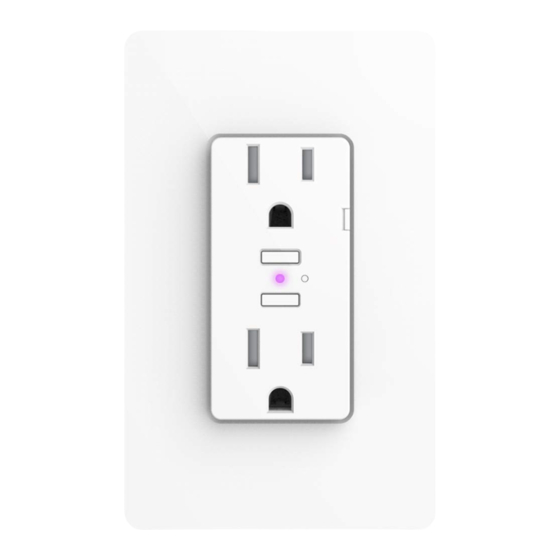

- Page 6 G E T T I N G T O K N O W T H E i D E V I C E S WA L L O U T L E T ® Top Outlet ON/OFF. Pressing this button will turn the individual outlet DEVICE RESET: ON or OFF.
- Page 7 Pull Out Tab. Refer to this when prompted to enter your HomeKit™ code during the setup on a iOS device. Device Reboot. Pressing this cycles power to the entire unit.
-
Page 8: Installation
I N S TA L L AT I O N STEP 1 Take a photo of your existing wiring for future reference. Turn OFF the power to the circuit at your breaker or fuse panel. If you are replacing an existing outlet, verify that the outlet no longer has power before proceeding.* STEP 2 Wire the receptacle in place of an existing receptacle according to... - Page 9 NEUTRAL (WHITE) NEUTRAL (USUALLY WHITE) LINE LINE (USUALLY BLACK) (BLACK) GROUND GROUND (USUALLY BARE COPPER (BARE COPPER) OR GREEN)
- Page 10 STEP 3 Secure the iDevices Wall Outlet back into the gang box. ® STEP 4 Turn the power back ON at the breaker. If the outlet is connected properly, you should see the LED indicator rapidly flash blue to indicate the unit is ready to connect to the app.
- Page 11 LED will rapidly flash blue when it’s ready to connect to the app.
-
Page 12: Connecting To Your Network
C O N N E C T I N G T O Y O U R N E T W O R K iDEVICES CONNECTED APP ® Download the iDevices Connected app and connect to your ® home’s Wi-Fi network. To proceed with setup please be sure ®... - Page 13 POWER ON OUTLET Ensure the power/breaker is turned back ON and the LED on the iDevices Wall Outlet ® is rapidly flashing blue. Note: If the LED is not flashing blue rapidly, hold either of the ON/ LED will OFF buttons until the LED...
- Page 14 C O N N E C T O U T L E T Launch the iDevices Connected app and you will be guided through ® the process of connecting your Wall Outlet. For iOS devices you will need the HomeKit setup code, located on the pull out tab. ™...
- Page 15 HomeKit™ setup code is located on the pull out tab of the iDevices Wall Outlet. ® XXX-XX-XXX XXX-XX-XXX...
- Page 16 Solid Blue the LED will turn solid blue again. Pairing mode has expired and Wall Outlet is waiting for the user to press either ON/OFF button for about 3 seconds to re-enter pairing mode. The LED slowly Slow Blue Flash flashes blue.
- Page 17 ON/OFF button down for 10 seconds until the LED rapidly flashes red. When the button is released the unit will reboot and re-enter the pairing Red Flash mode. When Wall Outlet receives a request to identify itself, or a software update is being performed, it flashes purple. Purple Flash...
-
Page 18: Troubleshooting And Support
S U P P O RT If at any time you require assistance, please contact our Customer Experience Team. Call: 888.313.7019 Email: Support@iDevicesinc.com Visit: iDevicesinc.com/Support T R O U B L E S H O O T I N G A N D S U P P O RT A DEVICE RESET CAN RESOLVE MOST ISSUES. -
Page 19: Regulatory Information
FCC: 2ABDJ-OUTLET IC: 11569A-OUTLET The iDevices Wall Outlet IDEV0010 is certified to comply with applicable ® FCC and IC rules and regulations governing RF and EMI emissions. This device complies with Part 15 of the FCC Rules. Operation is subject... - Page 20 FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 21 • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician to help. • Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Page 22 Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. References Requires the iDevices Connected app. ® For warranty information please visit iDevicesinc.com/Warranty...
