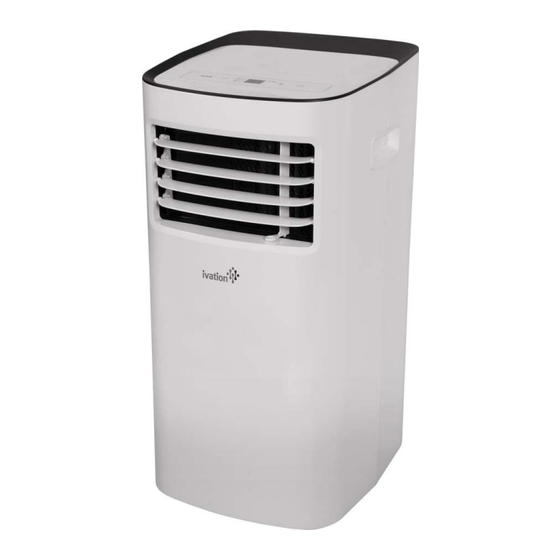

Portable Air Conditioner

QUICK START GUIDE

IVAPAC8KBTU
IVAPAC10KBTU
IIVAPAC12KBTU
Before installing your air conditioner, make sure that you have the following tools (not included):
• Medium Phillips screwdriver
• Tape measure or ruler
• Knife or scissors

1. Check to box and ensure that all parts are accounted for:

1. Unit adapter
2. Exhaust hose
3. Window slider adapter
4. Bolt
5. Window slider A
6. Window slider B
7. Adhesive foam seal A (2)
8. Adhesive foam seal B (2)
9. Foam seal C
10. Security bracket
11. Screws (2)
12. Drain hose
13. Remote controller with 2 AAA batteries

2. Check the window length and type

Measure the length of the window, then choose the slider that
will fit. If 2 sliders are needed, use the bolt to fasten them.
Window slider A
Windows Type
Window slider A
Hung Window
1
6
10
Bolt
Window slider B
Window slider A
Sliding Window
2
7
11
12

3. Prepare the exhaust hose assembly

Insert the exhaust hose into the window slider adapter and
unit adapter. Then clamp together with the elastic buckles
of the adapter.
Exhaust hose
Unit adapter
3
4
8
9
Exhaust hose
assembly
Window slider
adapter
5
13
