Summary of Contents for Ivation IVAPACWIFI8K

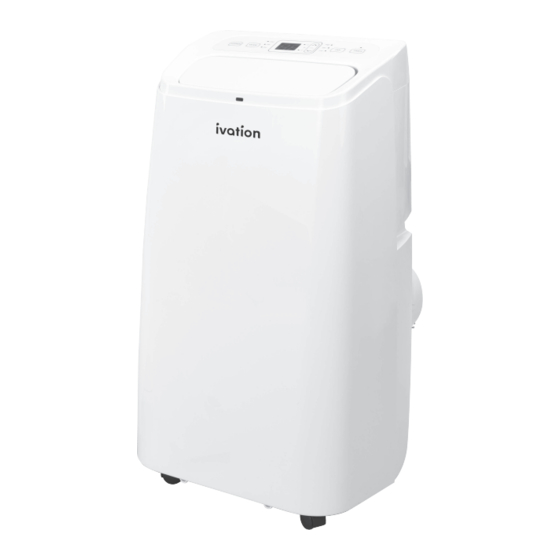

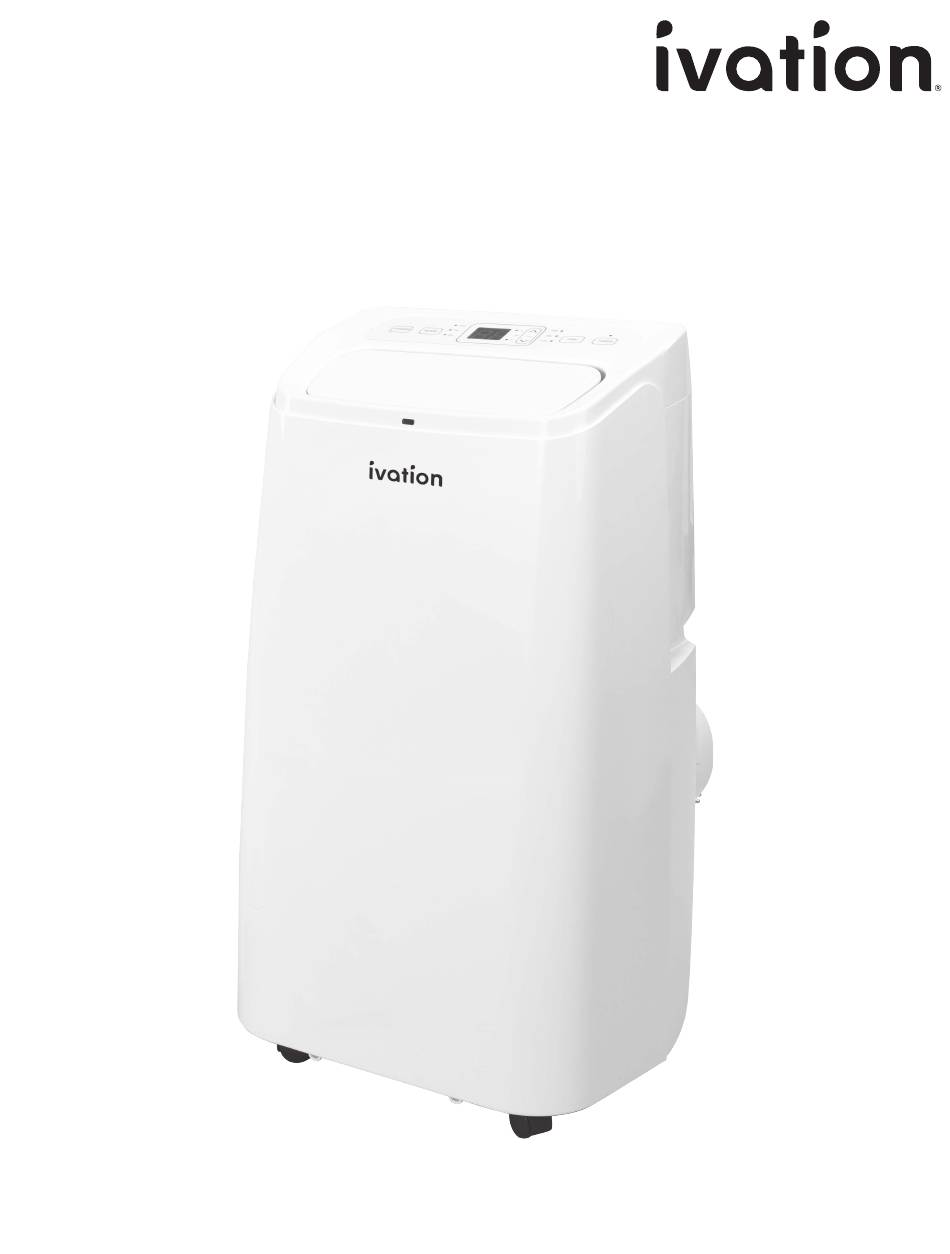

- Page 1 Portable Air Conditioner with Wi-Fi® User Guide SKUs: IVAPACWIFI8K / IVAPACWIFI10K / IVAPACWIFI12K / IVAPACWIFI13K...
-
Page 2: Table Of Contents
Thank you for purchasing the Ivation® Portable Air Conditioner with Wi-Fi®. This User Guide is intended to provide you with guidelines to ensure that operation of this product is safe and does not pose risk to the user. Any use that does not conform to the guidelines described in this User Guide may void the limited warranty. -
Page 3: Features
• Wi-Fi® connectivity lets you control your air conditioner from your smartphone • All-in-one device cools, dehumidifies, and purifies air • Air swing function adjusts air outlet direction • Included remote control for simple operation • Large, easy-to-read LCD display •... -
Page 4: Safety Precautions
Doing so can cause machine malfunction, property damage, or personal injury. In case of malfunction, contact Ivation® customer service or a qualified professional. • Do not place liquids or other objects on the air conditioner to prevent damage from accidental spills. - Page 5 GET TO KNOW YOUR AIR CONDITIONER Power cord hook Control panel Handle Top cover Exhaust vent Swing leaf air vent Continuous drainage port Rear housing CON filter Front housing Air inlet grill Omni-directional wheel Drainage cover Exhaust hose assembly Power cord Window sealing plate assembly Power plug Remote control...
-
Page 6: Product Overview
CONTROL PANEL Power button: Power your air conditioner on and off. Mode selection button: When powered on, select between cooling, ventilation, and dehumidification mode. LCD display: View selected temperature and operating conditions. Down button: Lower your selected temperature or timing value. Up button: Raise your selected temperature or timing value. - Page 7 REMOTE CONTROL Power: Power your air conditioner on and off. Mode: Select between cooling, ventilation, and dehumidification mode. Up: Raise selected temperature or timing value. Down: Lower selected temperature or timing value. Fan: Toggle between high, medium, and low fan speeds. °C °F: Toggle between Fahrenheit (°F) and Celsius (°C).
-
Page 8: Installation
AIR CONDITIONER PLACEMENT When selecting a place to install your air conditioner, consider the following: • Before powering on your air conditioner, let it stand upright for at least two (2) hours. • Keep your air conditioner upright whenever you move it. •... - Page 9 USING YOUR AIR CONDITIONER WITH WI-FI® Download the My Ivation® App Scan the QR Code below with your smartphone to download the My Ivation® app in the App Store® or Google Play™. NOTE: Allow the app to access network and location services for best use.
- Page 10 Add Device (EZ Mode) • Plug the unit into an outlet, but do not power on the unit. Hold the Fan button for three (3) seconds until the unit beeps and the indicator light blinks rapidly. • From the Home Page, press “Add Device” or press + in the top right corner of the screen.
- Page 11 • Your phone will automatically enter its settings menu (or Wi-Fi® list for Android™). Select the Wi-Fi network “SL-Ivation-XXXX”. • Navigate back to the My Ivation App and press “Next”. Your phone will initiate connection. NOTE: Connection may take up to 60 seconds.
- Page 12 Using the My Ivation® App 1. Device Settings Access device name, location, and sharing settings 2. Temperature Display Toggle between Celsius and Fahrenheit temperature readings by tapping the °C or °F next to the number 3. Mode Icons Displays your device’s current operating settings 4.
- Page 13 Automatic Defrosting If the air conditioner detects frost buildup, the unit will automatically defrost. Defrosting is indicating by a heating symbol flashing on the LCD screen. Automatic Thermal Protection Should the air conditioner become too hot, the unit will enter automatic thermal protection.
-
Page 14: Care
CARE & MAINTENANCE Before performing any cleaning or maintenance on your air conditioner, power off and unplug the unit. Cleaning the Housing Clean the front and rear housings with a damp cloth. Do not use chemicals like benzene or alcohol to avoid damaging the air conditioner. -
Page 15: Troubleshooting
TROUBLESHOOTING Issues Possible Causes Probable Solutions The air conditioner Electricity is not flowing to the air Connect the air conditioner does not operate. conditioner. to an appropriate outlet. The reservoir is full, indicated by the LCD Drain the water from inside display reading “FL”. -
Page 16: Specifications
IVAPACWIFI8K Cooling Capacity: 8,500 BTU/hr SACC: 5,500 BTU/hr Dehumidification: 55 pts/day Cooling Power Usage: 860 W / 7.5 A Air Flow: 175 CFM Power Source: 115 V / 60 Hz Noise Level: 53 dB Product Weight: 46.3 lbs. (21 kg) Operating Temperature: 60 °F –... -
Page 17: Warranty
(g) Consumable parts, such as batteries, fuses, and bulbs; (h) Cosmetic damage; or (i) If any Ivation® Portable Air Conditioner with Wi-Fi® serial number has been removed or defaced. This Warranty is valid only in the country where the consumer purchased the Product, and only applies to Products purchased and serviced in that country. -
Page 18: Get In Touch
1-866-849-3049 IVATION is a trademark of C&A IP Holdings, LLC, in the U.S. WI-FI is a trademark of Wi-Fi Alliance in the U.S. and/or other countries. APP STORE is a trademark of Apple, Inc. in the U.S. and other countries.
