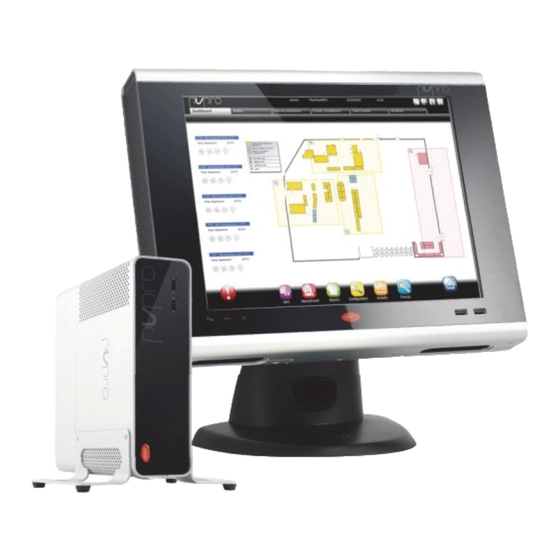

Summary of Contents for Carel PVPRO
Page 1

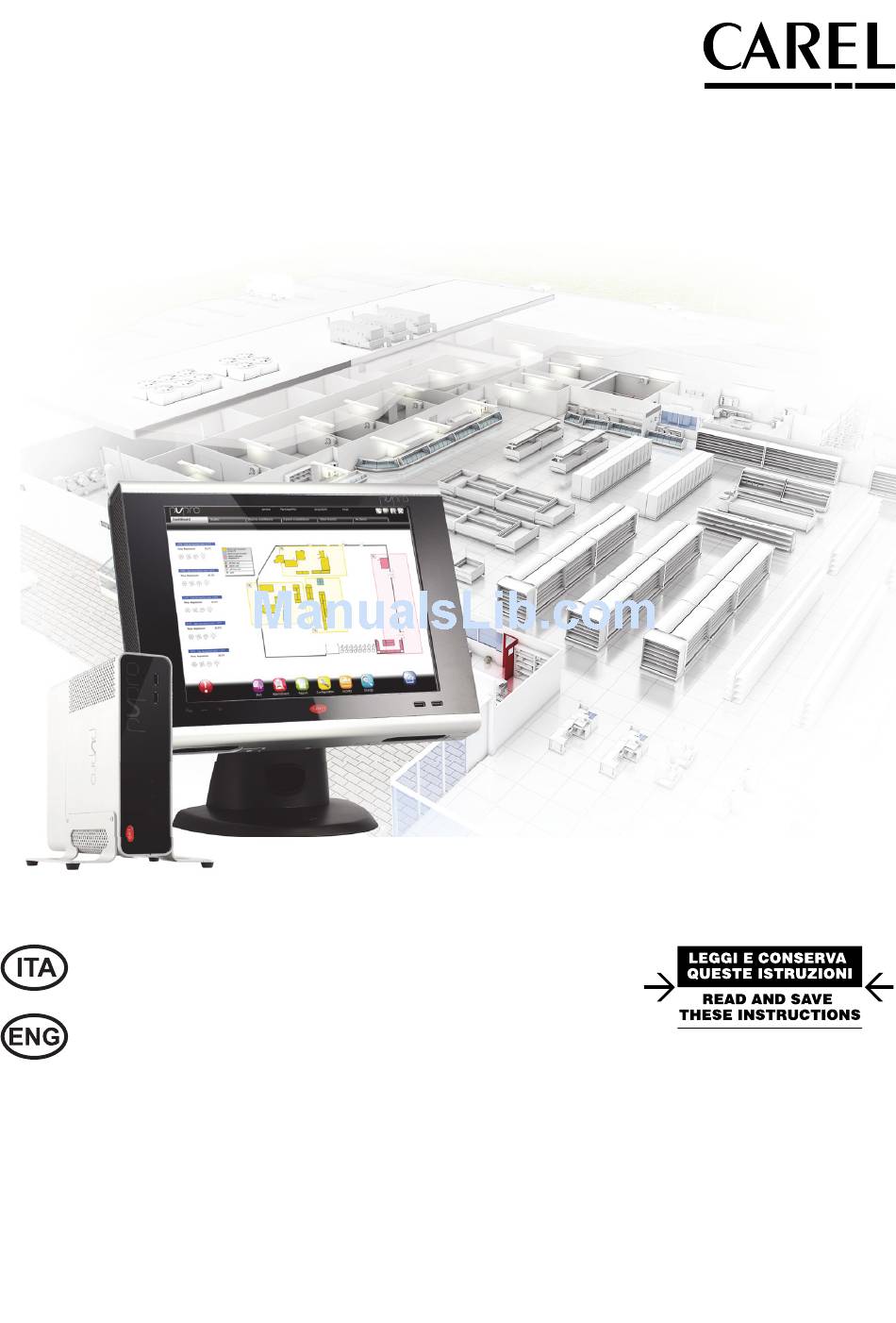

Floating suction & Smooth lines Plug-in PVPRO per centrali e utenze di refrigerazione Function for pRack application, MPXPRO and PVPRO Manuale d’uso User manual H i g h E f f i c i e n c y S o l u t i o n s...
Smooth lines sono elencati nella tabella che segue: Nome parametro Menu Descrizione Visibilità Setpoint di regolazione PVPRO & interfaccia utente Diff erenziale di regolazione PVPRO & interfaccia utente Setpoint di surriscaldamento PVPRO & interfaccia utente Off set di surriscaldamento PVPRO & interfaccia utente Off...
Se la funzione Smooth lines è abilitata, l’algoritmo indica al supervisore se l’MPXPRO sta funzionando con un determinato margine, cioè se il setpoint della pressione della linea di aspirazione corrispondente può essere aumentato senza pregiudicare la regolazione. In dettaglio, MPXPRO dichiara che il funzionamento è idoneo se il setpoint di surriscaldamento medio è...
Esiste anche la possibilità di defi nire il gradiente di aumento e diminuzione per ciascuna variazione, ed un tempo specifi co per diminuire il setpoint se viene persa la comunicazione con PVPRO . La porta per il monitoraggio dell’interruzione della comunicazione viene defi nita nella schermata Cad10a.
1.4 Floating suction su PVPRO PVPRO dispone della funzione Floating suction, che può essere abilitata e confi gurata facendo clic sul menù “Ottimizzazione Pressione Aspirazione” nel menù Energia, come illustrato nella Figura 1.h. Fig. 1.h Può essere utilizzata sia su utenze dotate dell’algoritmo Smooth lines sia su utenze senza questa funzione (es.
CONFIGURAZIONE FS SU PVPRO Dopo essere entrati nel menu “Ottimizzazione Pressione Aspirazione” il plug-in viene confi gurato in varie fasi, a partire dall’ultima scheda a destra fi no alla prima a sinistra. 2.1 Selezione rack Nella scheda “Centrali”, scegliere quali rack abilitare per la funzione Floating suction.
La procedura di confi gurazione è illustrata nella Figura 2.b. STEP 5 doble click STEP 3 STEP 2 STEP 4 STEP 2 STEP 2 STEP 1 STEP 1 Fig. 2.b 2.3 Maschera principale La scheda “Principale” mostra tutti i rack compressori selezionati per la funzione Floating suction. Un triangolo rappresenta lo stato di modifi...
Smooth lines, ma che sono state abbinate erroneamente, con il fl ag Smooth lines spuntato. Se un’utenza non è disponibile (offl ine per PVPRO) dopo il tempo di campionamento verrà indicata in nero e considerata come fosse non disponibile per l’aumento del setpoint di pressione. Questa utenza viene considerata come se fosse gialla, arancione o rossa a seconda di quante volte è...
Nella scheda “Dettagli” gli utenti possono avere una rassegna dettagliata dello stato dell’utenza. Viene mostrato un riassunto delle impostazioni, sia relative a PVPRO sia a pRack, ed il valore del setpoint di funzionamento, con alcuni campioni storici. In fondo alla pagina, una tabella riporta il conteggio delle utenze per ciascun colore, suddivise tra online e offl...
La soglia viene defi nita inserendo una percentuale per ciascuna utenza nella colonna “DC massimo” (ciclo di esercizio massimo). La tabella che segue riporta il signifi cato delle impostazioni PVPRO ed i relativi valori di default. Parametro...
Nella scheda “Dettaglio” gli utenti possono avere una panoramica dettagliata dello stato delle utenze. E’ riportato un riassunto delle impostazioni, sia relative al PVPRO sia al pRack, il valore del setpoint ed una tabella con i valori del ciclo di esercizio corrente, massimo e minimo registrato da PVPRO ad ogni rilevazione.
Page 15
Smooth lines on MPXPRO: how it works ............................ 5 Smooth lines on MPXPRO: confi guration ..........................6 Floating suction on pRack ................................... 7 Floating suction on PVPRO ................................. 8 2. FS CONFIGURATION ON PVPRO Rack selection ......................................9 Rack association ......................................9 Dashboard: main view ..................................
The parameters involved in the Smooth lines confi guration are listed in the following table: Parameter name Menu Description Visibility Control set point PVPRO & User interface Control diff erential PVPRO & User interface Superheat set point PVPRO & User interface Positive SH off set PVPRO &...
If the Smooth lines function is enabled, the algorithm tells the supervisor whether the MPXPRO is operating with a certain margin, i.e., the suction pressure set point on the corresponding line can be increased wi- thout jeopardising control. In detail, the MPXPRO declares that operation is suitable if the average working superheat set point is higher than P3 + THS.
There is also the possibility to defi ne the increase and decrease step for each variation, and a specifi c time for decreasing the set point if communication is lost with PVPRO . The port for monitoring communication failure is defi ned in screen Cad10a.
1.4 Floating suction on PVPRO PVPRO features the Floating suction function, which can be enabled and confi gured by clicking the Floating Suction Pressure menu from the Energy plugins, as shown in Figure 1.h. Fig. 1.h This can be used both on units featuring the Smooth line algorithm, and on units without this function (e.g.
FS CONFIGURATION ON PVPRO Once having entered the Floating Suction Pressure menu, the plug-in is confi gured in several steps, starting from the last tab on the right, to the fi rst on the left. 2.1 Rack selection In the “Racks” tab, choose which racks to enable for the Floating suction function.
The confi guration procedure is illustrated in Figure 2.b. STEP 5 doble click STEP 3 STEP 2 STEP 4 STEP 2 STEP 2 STEP 1 STEP 1 Fig. 2.b 2.3 Dashboard: main view The “Dashboard” tab shows all of the compressor racks selected for the Floating suction function. A triangle represents the status of the set point adaptation, from the minimum to the maximum value.
Smooth lines fl ag checked. If a unit is unavailable (offl ine for PVPRO) after the sample time, it will be indicated in black and is considered as being unavailable for pressure set point increases. This unit is considered as if it were yellow, orange or red, depending on how many times it has been found offl...
If a unit has been wrongly associated as a device featuring the Smooth lines yet does not actually feature such function , PVPRO will fail to acquire the operating conditions from this device and will indicate it as N/A. As modifying the suction pressure set point may aff ect control of the line, and PVPRO does not know the unit’s operating conditions, the plug-in will reset the set point to the minimum value.
(see paragraph 2.2 for details). For this group, the confi guration page will appear as shown in Figure 2.h. As the units do not feature any special smooth control function, from PVPRO the user can only confi gure the parameters relating to the supervisor itself and to the rack.
In the “Details” tab, users can have a detailed overview of unit status. There is a summary of the settings, both relating to PVPRO and to pRack, the current set point and a table showing the current, the maximum and the minimum duty cycle recorded by PVPRO in the sample time.
