Related Manuals for Papago GoSafe 30G
Summary of Contents for Papago GoSafe 30G

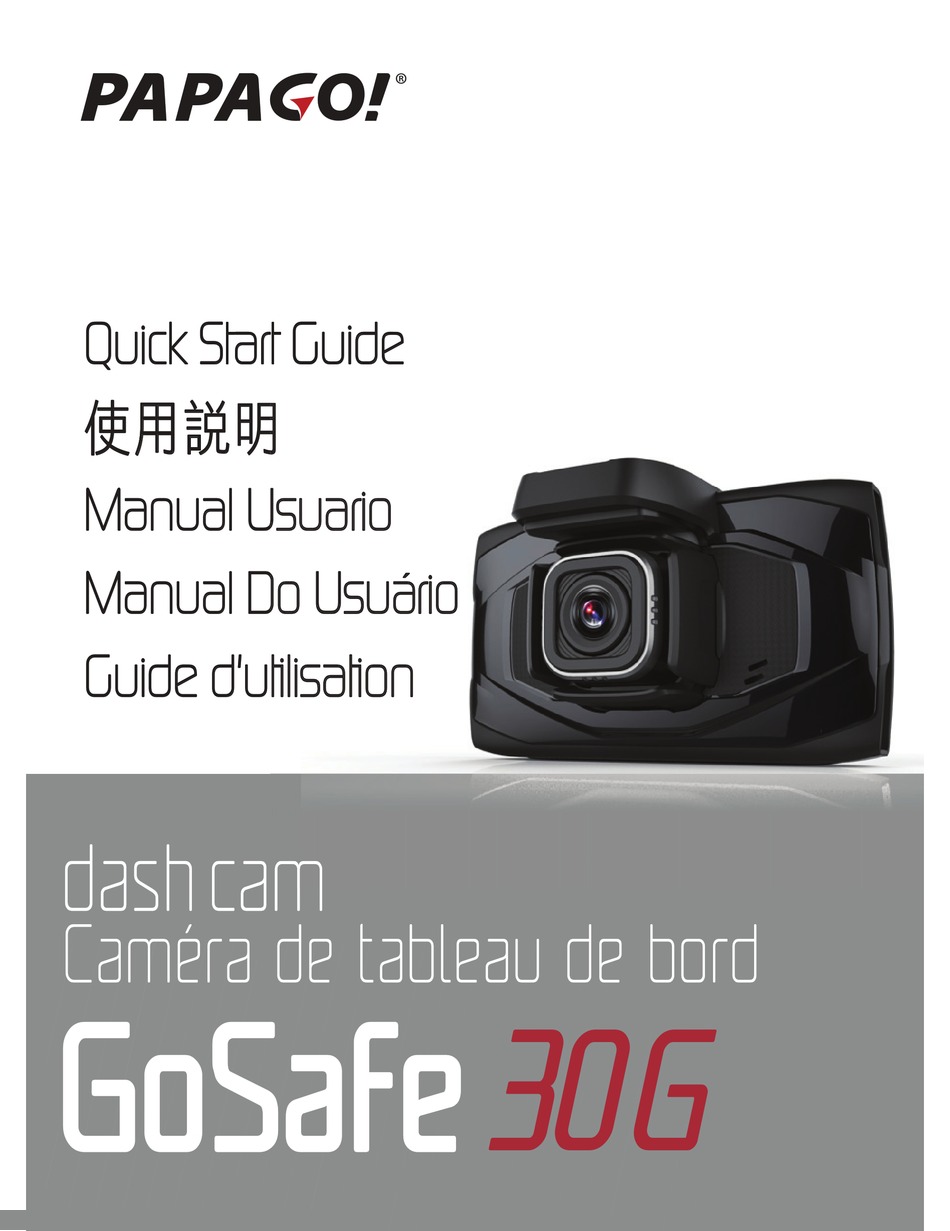

- Page 1 Quick Start Guide Manual Usuario uario Manual Do Usuário Usuário Guide d'utilisation tilis sation...
- Page 2 Disclaimer 1.Please follow the set-up and usage instructions in the print material that came with this Dashboard Camera (dash cam) product. 2.You should not set/install this dash cam at a place that would obstruct or reduce a driver’s view; make sure your usage comply with pertinent vehicle codes of your state, province, territory or country.
-
Page 3: About Micro Sd Card
Attention please About Usage If your vehicle still provides power when the vehicle is off, unplug the device when you plan to have your vehicle parked for a long period of time to avoid draining you vehicle's battery. ② The embedded Supercapacitors can help to save your recorded file even if the power is off. -
Page 4: Product Introduction
1. Product Introduction 1.1 Package Contents To check the items in your package with the list below. If any of the below items is damaged or missing, contact your retailer. Device Suction Cup Mount Car Charger Quick Start Guide Warranty Card 16GB MicroSD English 3... - Page 5 1.2 Driving Recorder Overview Mount Bracket Lens Speaker Microphone Display Buttons Power Switch Reset A, TPMS Slot (Optional) B, Mini USB Slot C, Micro SD Slot D, HD Out English 4...
-
Page 6: Installation And Removal
2. Installation and removal 2.1 Location Windshield Best mounting location Connect to car charger Caution: We are not responsible for any damage caused to, or caused by, the air bag due to incorrectly placing the device within the range of the safety bag area. For better view, try to install in the center of the windshield. -
Page 7: Start And Go
3. Start and Go 3.1 Power On Insert the car charger cable into the car’s cigarette lighter and the other end into the mini USB port on the device. Make sure to install the Micro SD Card into the Micro SD Card slot on device. After turning on, the system will start recording automatically. - Page 8 3.4 Buttons Buttons Behavior Recording mode Enter Emergency mode Playlist Back to previous menu Replay/Setting Back to camera mode Recording mode Enter Playback Menu Playlist/Setting Up Replay mode Delete Recording mode: One short click leads to settings menu One long press and device will take a snapshot Playlist/Setting Down Replay mode Lock / Unlock...
- Page 9 3.5 Recording Stop & Go Emergency Recording Time Recording Audio Recording Battery Indicator Motion Detection Monitor Mode Stop Sign Recognition 2015/08/26 2015/08/26 11:31:20 11:31:20 Current date/time English 8...
- Page 10 4. Settings Press the button to enter “Settings”. a. Automatic Recording b. Monitor Mode: When this mode is selected, your device will take snapshots every second while recording. c. Motion Detection: When this mode is selected, recording starts when dash cam detects movement. If there is no movement for more than 60 seconds, recording will stop and be switched to detection mode.
- Page 11 F.L. F.R. °C °C R.L. R.R. °C °C Tire Pressure & Temperature display Start the car engine, Temperature is White Blue no signal on white normal. word. Warning, please Pressure is Green check Tire. normal. ne : Enable or disable voice recording. -1.0, -2/3, -1/3, +0.0, +1/3, +2/3, and +1.0.
- Page 12 Set date, time, and date format. Enable or disable daylight saving time. Screen Saver Set screen saver for stand-by. . Set Power sound on or off. a. Date Stamp Enable or disable date stamp on recordings. b. GPS Stamp Enable or disable coordinate stamp on recordings. Set display language.
-
Page 13: Record/Play/Delete Record Snapshot Function
5. Record/Play/Delete record Snapshot function 5.1 Video Recording Circulation It will start video recording circulation after powering on with the Micro SD Card plugged in. Each recorded file is 5 minutes long, with the old footage being replaced when the Micro SD Card is full. 5.2 Emergency Recording Manual File Backup Hold the button... - Page 14 Insert the Micro SD Card onto adapter. Insert adapter into the Micro SD Card reader and your computer will automatically detect the SD Card. There are video recording files located in folder \PAPAGO (circulating video recording files and emergency video recording files) on the “removable device”.
- Page 15 5.6 Play/Delete Video or Photo Hold down to enter playback menu and preview the recorded files. videos), Emergency (videos recorded in emergency mode) or Photos (snapshots taken). Press up/down button to browse the files. Click "OK" to choose which file you want to preview. Click to OK button to play file, or up button to delete the file.
