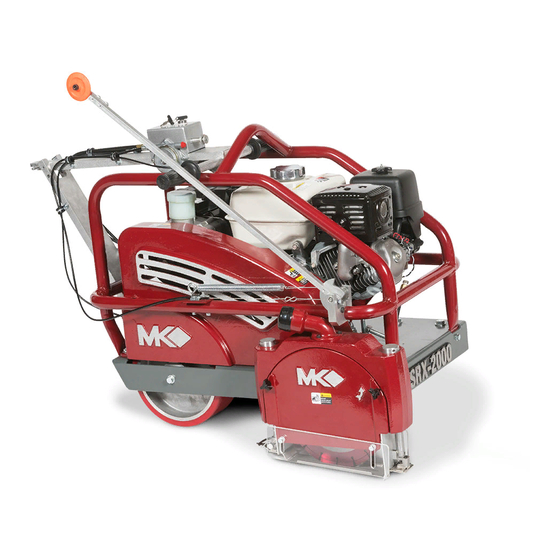

MK Diamond Products SRX-2000 Owner's Manual & Operating Instructions

Early eantry concrete saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.mkdiamond.com
Revision 101
Manual Part# 172235-OM
Caution: Read all safety and operating instructions
before using this equipment. This owner's manual
MUST accompany the equipment at all times.
08.02018
EARLY ENTRY CONCRETE SAW
OPERATING INSTRUCTIONS
OWNER'S MANUAL &
MODELS
SRX-2000
SRX-2000
SRX-2000
PART #
172235
172235-E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRX-2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MK Diamond Products SRX-2000

Summary of Contents for MK Diamond Products SRX-2000

  • Page 1 SRX-2000 www.mkdiamond.com EARLY ENTRY CONCRETE SAW OWNER’S MANUAL & OPERATING INSTRUCTIONS MODELS PART # SRX-2000 172235 SRX-2000 172235-E 08.02018 Revision 101 Manual Part# 172235-OM Caution: Read all safety and operating instructions before using this equipment. This owner’s manual MUST accompany the equipment at all times.
  • Page 2 INTRODUCTION Congratulations on your purchase of a the SRX-2000 Early Entry Concrete Saw. We are certain that you will be pleased with your purchase. MK Diamond takes pride in producing the finest construction power tools and diamond blades in the industry.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SAFETY Safety Messages Damage Prevention Message General Safety Precautions and Hazard Symbols California Proposition 65 Message Electric Requirements & Grounding Instructions 10-11 Safety Label Locations Product Specifications UNPACKING, TRANSPORT and ASSEMBLY Unpacking Contents Transport Assembly 16-18 STARTUP, OPERATION and SHUTDOWN Startup 18-19 Operation...

  • Page 4: Safety Messages

    EARLY ENTRY CONCRETE SAW SAFETY Read and follow all safety, operating and maintenance instructions. Failure to read and follow these instructions could result in injury or death to you or others. Failure to read and follow these instructions could also result in damage and/or reduced equipment life. Safety warnings and guidelines do not by themselves eliminate danger.
  • Page 5 EARLY ENTRY CONCRETE SAW SAFETY PERSONAL PROTECTIVE EQUIPMENT ALWAYS wear approved respiratory, head, ear and eye protection when operating this machine. ACCIDENTAL STARTS! Before starting the engine/motor, be sure the ON/OFF switch is in the OFF position to pre- vent accidental starting. Place the ON/OFF switch in the OFF position before performing any service operation.
  • Page 6 EARLY ENTRY CONCRETE SAW SAFETY USE PROPER APPAREL DO NOT wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry that may be caught in moving parts. Non-slip footwear is recommended. Wear protective hair cover- ing to contain long hair. SECURE WORK Clamps or a vise should be used to hold work whenever practical.
  • Page 7 EARLY ENTRY CONCRETE SAW SAFETY CHECK FOR DAMAGED PARTS Before using a power tool, check for damaged parts. A guard or any other part that is damaged should be carefully checked to determine if it would operate properly and perform its intended function. Always check moving parts for proper alignment or binding. Check for broken parts and mountings and all other conditions that may affect the operation of the power tool.

  • Page 8: California Proposition 65 Message

    EARLY ENTRY CONCRETE SAW SAFETY SILICA DUST WARNING Grinding/cutting/drilling of masonry, concrete, metal and other materials with silica in their composition may give off dust or mists containing crystalline silica. Silica is a basic component of sand, quartz, brick clay, granite and numerous other minerals and rocks. Repeated and/or substantial inhalation of airborne crystalline silica can cause serious or fatal respiratory diseases, including silicosis.
  • Page 9 EARLY ENTRY CONCRETE SAW SAFETY GAS ENGINE SAFETY Gasoline models are shipped from the factory dry, meaning without fuel or oil. Both must be added before equipment can be used. Check the engine Manufacturer Owner's Manual for instructions on fueling, break-in, servicing and proper engine care and use. GAS SAFETY PRECAUTIONS EXPLOSIVE FUEL! Gasoline is extremely flammable, its vapors can explode if ignited;...

  • Page 10: Electric Requirements & Grounding Instructions

    ELECTRICAL REQUIREMENTS AND GROUNDING INSTRUCTIONS In order to prevent electrical shock and injury, the following electrical safety precautions and symbols should be followed at all times! WARNING In case of a malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electric shock.
  • Page 11 ELECTRIC MOTOR SAFETY For maintenance care and operation of the electric motor, refer to your electric motor instruction book- let furnished with the electric motor. Protect the electric motor from dust as much as possible and keep ventilating openings clean. Before plugging in the machine, make sure that the outlet voltage is within the voltage marked on the machines's data plate.

  • Page 12: Safety Label Locations

    SAFETY OPERATION & SAFETY DECALS The SRX-2000 Early Entry Concrete Saw is equipped with a number of safety decals. These de- cals are provided for operator safety and maintenance information. Should any of these operation or safety decals become unreadable, replacements can be obtained by calling (800) 262-1575.

  • Page 13: Product Specifications

    SRX-2000 will provide years of dependable service. General Description The SRX-2000 is engineered as a portable concrete saw powered by a Honda gas engine. The saw is capable of 1-5/8" depth of cut with an 10" blade.

  • Page 14: Unpacking

    In the containers, you will find one (1) Early Entry Concrete Saw, one (1) Skid Plate, one (1) Early Entry Concrete Saw Owner’s Manual, one (1) Engine Owners Manual and one (1) Warranty Card. SRX-2000 www.mkdiamond.com EARLY ENTRY CONCRETE SAW OWNER’S MANUAL,...

  • Page 15: Transport

    EARLY ENTRY CONCRETE SAW TRANSPORT TRANSPORT CAUTION 1. The Early Entry Concrete Saw weighs approximately two-hundred ninety (290 pounds), use care when transporting. 2. Two people are required to lift and transport the Early Entry Concrete Saw. 1. Pointer Up/Down Control 2.

  • Page 16: Assembly

    EARLY ENTRY CONCRETE SAW ASSEMBLY Filling Oil Reservoir NOTE: The engine is shipped with no oil in the crankcase. Refer to the engine manual for details on the type and amount of oil required. To fill the crankcase with oil, place the engine level. In order for this to be accomplished the blade must not be installed, and the depth adjustment must be down (until the engine is level).
  • Page 17 EARLY ENTRY CONCRETE SAW ASSEMBLY Diamond Blade Installation NOTE: 1. When installing the blade retaining-bolt, ensure the threads of the bolt are aligned with the threads of the drive shaft so as not to "cross-thread" the bolt. 2. When installing the blade ensure that the blade shaft and flanges are free from dirt and all foreign material before mounting blade on the blade shaft.
  • Page 18 EARLY ENTRY CONCRETE SAW ASSEMBLY NOTICE The blade turns counterclockwise when facing the blade shaft. Ensure directional arrow on the blade indicates proper rotational direction. Match arrow on Blade Guard with directional arrow on blade. Incorrect rotation will reduce blade life. Skid Plate Installation Hook front of Skid Plate over pin Insert pin through Skid Plate...

  • Page 19: Startup

    EARLY ENTRY CONCRETE SAW START UP Pre-Start Inspection The pre-start inspection should be performed before beginning any job. If Diamond Blade is worn, replace the blade before starting work. Inspect Blade for damage or Inspect Engine for leaks. Inspect the saw for general cracks.
  • Page 20 2 minutes between cranking periods to prevent starter from overheating. Dust Collection Systems The SRX-2000 has a 2" port for connection with a dust collection system. The vacuum system required must have a CFM of 129 and a HEPA filter guaranteed 99.99% efficient at .3 micron.

  • Page 21: Operation

    OPERATION Adjusting Depth of Cut The common depth of cut for control joint cutting is 1". The SRX-2000 is factory set to a depth of 1". Raise the Raise/Release Lever. Adjust the Truck Stop screw to increase or decrease the depth of cut.
  • Page 22 Contraction joints are cut in concrete in order to relieve stresses in the concrete. The SRX-2000 controls random cracking through the early timing of a saw cut at predetermined loca- tions to create weakened planes in the concrete that subsequently crack at the bottom of the cut to relieve stress.
  • Page 23 EARLY ENTRY CONCRETE SAW OPERATION Recommended contraction joint spacing Concrete thickness, in (mm) Maximum spacing, ft. (m) 3.5 in (90mm) 8ft. (2,4m) 4, 4.5in (100, 114mm) 10ft. (3,0m) 5, 5.5in (125, 140) 12ft. (3,6m) 6in or greater (150mm) 15ft. (4,5m) The timing of concrete operations –...

  • Page 24: Shutdown

    EARLY ENTRY CONCRETE SAW CLEANUP Emergency Engine Shutdown Place Engine Master Switch in the OFF position. Cleanup Engine parts are extremely hot following use, allow engine to cool 1/2-hour before CAUTION cleaning. Use care during cleanup to avoid injury. 1. To extend operating life, the Early Entry Concrete Saw should be cleaned NOTE: following every use.

  • Page 25: Maintenance

    EARLY ENTRY CONCRETE SAW MAINTENANCE MAINTENANCE SAFETY • Always turn the master engine switch to the off position. • NEVER lubricate components or attempt service on a running machine. • Keep the machinery in proper running condition. • Fix damage to the machine immediately and always replace broken parts, or missing decals. New Maintenance Perform the following after initial purchase and operation of the saw.
  • Page 26 EARLY ENTRY CONCRETE SAW MAINTENANCE Weekly (50 hours) and Monthly (200 hours) The following should be performed monthly. Items should be lubricated using waterproof grease. Check oil level. Filled with SAE Change engine oil every 100 Clean engine Air Filter weekly hours.
  • Page 27 EARLY ENTRY CONCRETE SAW MAINTENANCE Check Fuel Level For all Engine related maintenance and troubleshooting refer to the Engine Manual. 1. Gasoline is highly flammable and explosive. You can be burned or seriously WARNING injured when handling fuel. 2. To fuel, stop engine if running and allow it to cool. 3.
  • Page 28 Engine maintenance and adjustment is necessary to keep the saw in good operation condition. Main- tenace operations include oil changes, filter changes, air cleaner, spark plug, fuel filter etc...Perform all maintenance procedures as recommended by the engine manual provided separately. Lower the SRX-2000 Saw to Remove the Diamond Blade. Free the Oil Drain Line.
  • Page 29 EARLY ENTRY CONCRETE SAW MAINTENANCE Spark Plug Adjustments and Replacement For all Engine related maintenance and troubleshooting refer to the Engine Manual. CAUTION DO NOT work around the engine while hot. When installing the Spark Plug, ensure the threads are aligned with the threads in the engine so as not to "cross-thread"...
  • Page 30 EARLY ENTRY CONCRETE SAW MAINTENANCE Belt Change Disengage idler arms by moving Remove the four bolts on Belt Remove outer & inner Blade belt to opposite side. Guard and remove guard. Flanges and shaft key. Remove belts from pulleys. Remove lower belts through Install new belts on Pulley.

  • Page 31: Troubleshooting

    EARLY ENTRY CONCRETE SAW TROUBLESHOOTING TROUBLESHOOTING When trouble occurs, be sure to check the simple causes which, at first, may seem too obvious to be considered. Refer to the table below for problems and their possible causes. Cause Faulty Improper Dirt in Incorrect Dirty Air...

  • Page 32: Accessories

    EARLY ENTRY CONCRETE SAW ACCESSORIES ITEM NO. DESCRIPTION PART # GC-10 10" x .100" Soft Bond 172620 Ultra Hard Aggregate 10" x .100" 171942 GC-20 Medium Soft Bond Hard Aggregate 10" x .125" 171943 10" x .100" 171953 GC-30 Medium Bond Medium/Hard Aggregate 10"...
  • Page 33 NOTES...

  • Page 34: Ordering Information

    EARLY ENTRY CONCRETE SAW ORDERING & RETURN ORDERING INFORMATION You may order MK Diamond products through your local MK Diamond distributor or, you may order direct from MK Diamond. When ordering direct from MK Diamond, please have the following information ready before calling: •...

  • Page 35: Warranty

    © COPYRIGHT 2018, MK DIAMOND PRODUCTS, INC. ALL RIGHTS RESERVED. The MK Diamond logo is a registered trademark of MK Diamond Products, Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the property of their re- spective owners and used with permission.
  • Page 36 SRX-2000 Early Entry Concrete Saw OWNER’S MANUAL & OPERATING INSTRUCTIONS MK Diamond Products, Inc. 1315 Storm Parkway Torrance, CA 90501 Toll-Free: (800) 421-5830 Phone: (310) 539-5221 Fax: (310) 539-5158 www.mkdiamond.com...
