FrSky FLD-02 Instruction Manual

1 Introduction

1.1 Specifications

Model: FLD-02
Compatibility: FrSky DFT, DJT and DHT
Dimension: 55*40*12mm
Pixel: 128*64

1.2 Features

1) Show all connected sensors data;
2) Capable of programming alarm thresholds and directions;
3) Firmware upgradable.

2 Installation

Connect FrSky FLD-02 to the UART and power connection on FrSky telemetry module (Rxd, Txd,
+5V, GND) by the provided cable. Confirm the orientation is correct and make sure both switches
on the telemetry module are OFF.

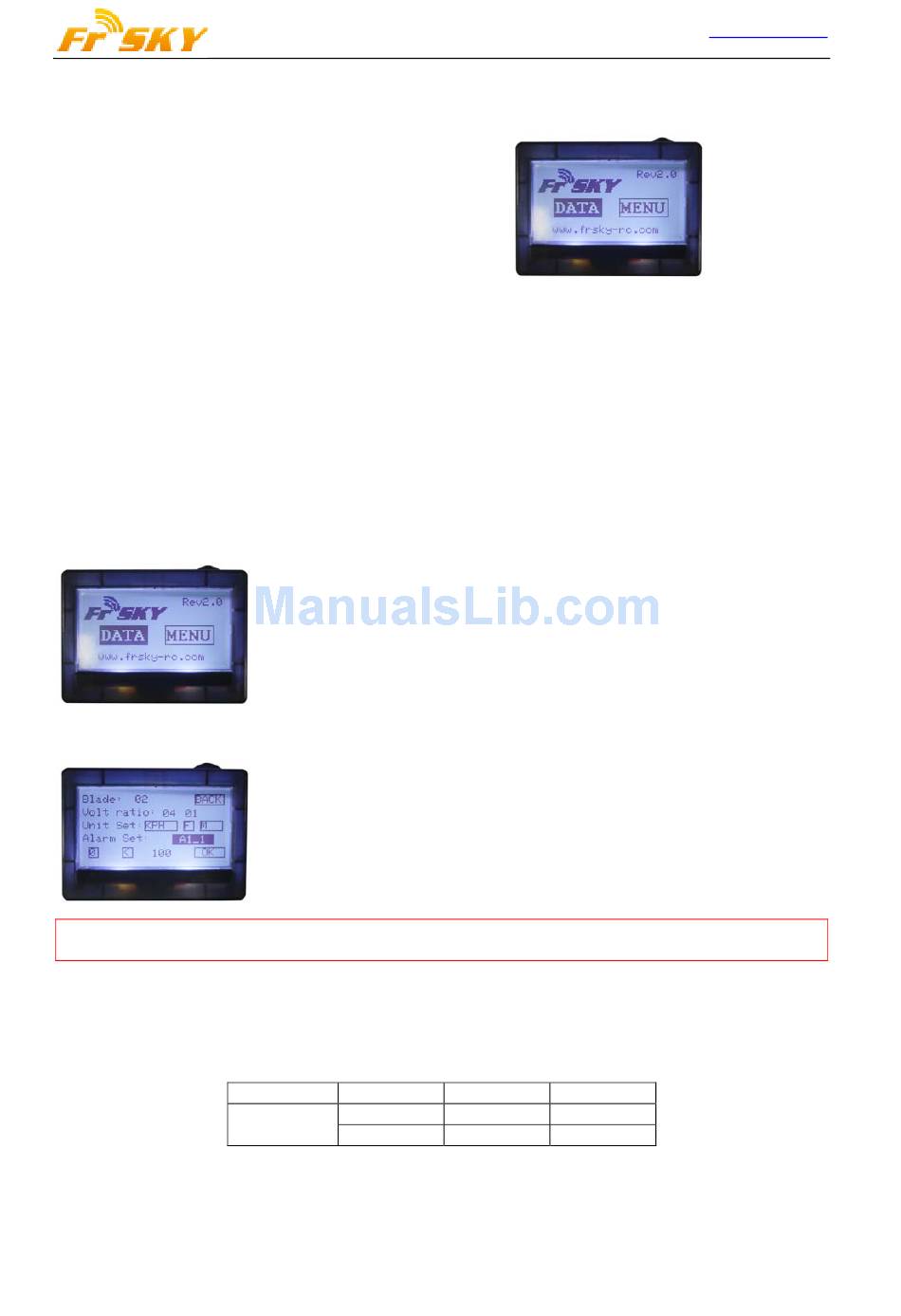

3 Screen Structures

3.1 Main Screen

3.2 Menu Screen

Note: Make sure the battery voltage division ratios are programmed in accordance with
those of connected battery voltage sensors.
The alarm thresholds and directions (either above or below threshold) can be programmed. After
alarm thresholds and directions are programmed, click "OK". "√" means these values have been
remembered by the module.
Below are FrSky default values for RSSI, users can change according to their requirements:
Instruction Manual for FrSky FLD-02
FrSky Logo
Version Number
Data Screen
Menu Screen
FrSky Website
Blade: Blade Number
Volt ratio: A1 & A2 Voltage Division Ratio
Unit Set: Speed (m/s or MPH)
Alarm Set: A1_1/2, A2_1/2, RSSI_1/2
Alarm
RSSI 1
2
Temperature (Celsius or Fahrenheit)
Altitude (M/Foot)
Than Value
＜
45
＜
42
