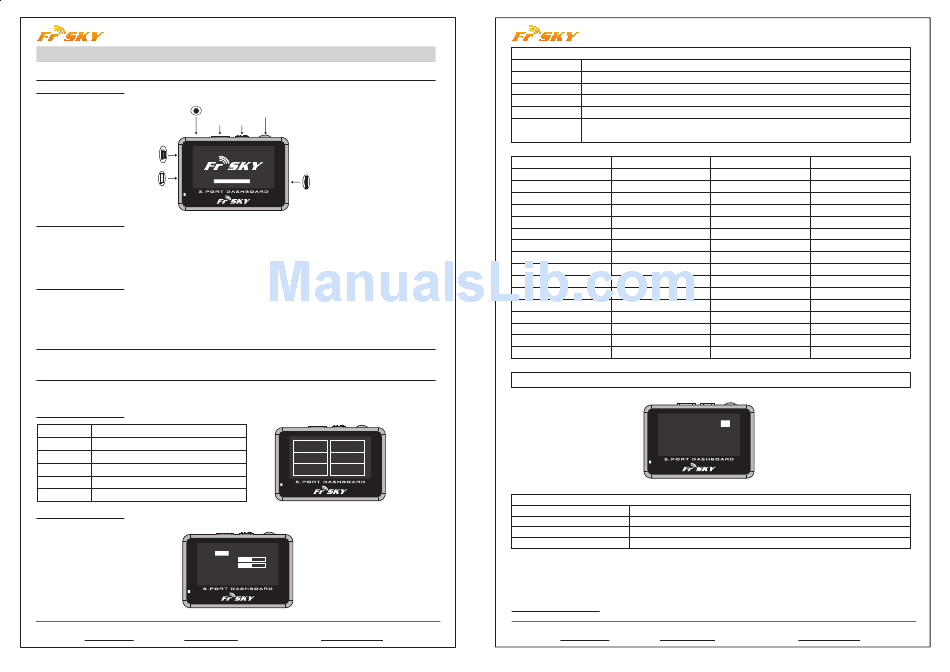

FrSky S.Port Dashboard Manual

Instruction Manual for FrSky S.Port Dashboard

1. Introduction

1.1 Overview:

Earphone Part
Page Power Switch
USB Port
-
+
S.Port

1.2 Specifications:

Model Names: FSD (FrSky S.Port Dashboard)
Compatibility: FrSky X Series Telemetry Modules
Voltage Range: 4.8~6V
Dimension: 75*50*13.8mm
Pixel: 128*64

1.3 Features:

1) Show all connected sensors data;
2) Capable of programming alarm thresholds and system settings;
3) Set Physical ID and Group Number for S.Port sensors;
4) Firmware upgradeable for all S.Port products.

2. Installation

Connect FrSky FSD to the S.Port on FrSky X series telemetry module (S.Port, VCC, GND) by the provided cable.

3. Screen Structures

Use "rotate switch" to choose, short press "rotate switch" to confirm, short press "page" to the next page, hold
"page" for 1 second to go back to previous screen.

3.1 Main screen:

SYSTEM System settings
VOICES Settings
UPDATE Upgrade S.Port devices
DATA Telemetry data display
IDSET Set phyID and GNum for S.Port sensors
INFO Firmware and Eeprom version

3.2 SYSTEM screen:

*System Set
Units: metric
Contrast:
Volume:
Log Interval: 1s
Time Zone: 000
Alarm: Height Dis < 000
FrSky Electronic Co., Ltd
Website:www.frsky-rc.com E-mail:frsky@frsky-rc.com
www.frsky-rc.com
Rotate Switch
TF Card Slot
SYSTEM DATA
VOICES IDSET
UPDATE INFO
celcius
- +
- +
Technical Support: sales4tech@gmail.com
System Set
Units
metric or imperial (selectable), fahrenheit or celcius (selectable)
Contrast adjust the contrast of the screen
Volume adjust the volume of the voice
Log Interval data log period (0.1s, 0.5s, 1s, 2s, 5s selectable)
Time Zone -11 to 12 time zone selectable ("-" is west and "+ "is east)
use "rotate switch" to choose, short press "rotate switch" to change the setting
Alarm
(see detailed chart below)
Alarm Sensor
Height Variometer
HeightC Variometer
A1 Receiver
A1C Receiver
A2 Receiver
A2C Receiver
A3 S.Port2UART
A3C S.Port2UART
A4 S.Port2UART
A4C S.Port2UART
RxBat Receiver
RxBatC Receiver
SWR Module
SWRC Module
RSSI Receiver
RSSIC Receiver
Note: "C" after the alarm name means "critical".
*S e n so r S e t
RP M S e n so r b l a d e :
A n o l o g S e n so r
Vo l t r a t i o :
0 4 04 0 4 0 4 0 4
G P S S e n so r E n ab l e d
Fl vss S e n s or E n a b l e d
Sensor Set
RPM Sensor blade Set the blade numbers for RPM Sensor
Anolog Sensor Volt ratio Voltage Division Ratio for A1, A2, A3, A4, RBat
GPS Sensor Enable or Disable the GPS data screen (Page 4 of DATA screen)
Flvss Sensor Enable or Disable the Lipo Voltage data screen (Page 5 of DATA screen)
Follow the steps below to change "System Set" and "Sensor Set":
Step 1: Short press "rotate switch" to open "system set";
Step 2: Use "rotate switch" to choose the position you want to change;
Step 3: Short press "rotate switch" to change the settings.

3.3 VOICES screen:

FrSky Electronic Co., Ltd
Website:www.frsky-rc.com E-mail: frsky@frsky-rc.com
www.frsky-rc.com
Direction Unit
> 10m
> 10m
0.1V
<
< 0.1V
< 0.1V
< 0.1V
< 0.1V
< 0.1V
0.1V
<
< 0.1V
< 0.1V
< 0.1V
>
>
<
<
02
