InnoMedia MTA 8328-1N Quick Install Manual

InnoMedia
MTA 8328-1N

Quick Install Guide

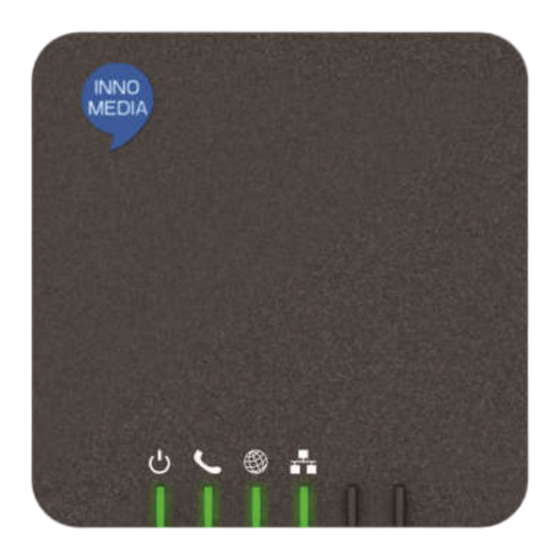

The InnoMedia MTA8328-1N is an integrated device providing telephony
service over a broadband network. This guide will help you to quickly install
and configure your unit so that you can start placing calls right away.

Package Contents

MTA8328-1N

 12V Power Supply
Ethernet Cable and Phone Cable

Getting to Know Your MTA

MTA Out of the Box Setup

Before starting the Installation, make sure your broadband Internet access
device is powered on and your connection is up. (Check your Internet
service provider's documentation).

Plug the supplied power adapter into the MTA8328-1N. The power
LED will show steady Green.

Connect your phone into the PHONE port on the MTA using the
supplied Phone Cable.

Setup the MTA to connect to your Home Router.
Connect the Yellow Ethernet cable (supplied) into the WAN port on
the MTA and connect the other end into an available Ethernet port
on the Home router.

Confirm that the MTA is successfully connected to the Home Router
and acquires an IP address as follows:
The WAN LED shows Green for 100BT connection, or shows Yellow
for 10BT.

Once the MTA connects to the voice service provider network, and
completes the registration and service provision process, you
should see a solid Green PHONE LED light displayed.
www.innomedia.com
Making Calls
You are now ready to place calls.
* Note that the MTA8328-1N supports FAX transmission.

Troubleshooting

Problem 1: When the network is not connected, the MTA IVR (Interactive
Voice Response) system announces messages such as: "Your Internet cable
is not connected," or "Check to see if your Internet service is down."
Recommendations: Ensure that all cables (power, Ethernet) are properly
connected to the MTA. Make sure your broadband access device is
properly set up.
Problem 2. When the Network is connected, but there is no phone service
available, the MTA IVR announces the message: "Your device is not
registered with your service provider."
Recommendations: Report the failure to your voice service provider for
their attention.
January 2017
