G2 Quick Start Guide In 4 Easy Steps
To Start With:

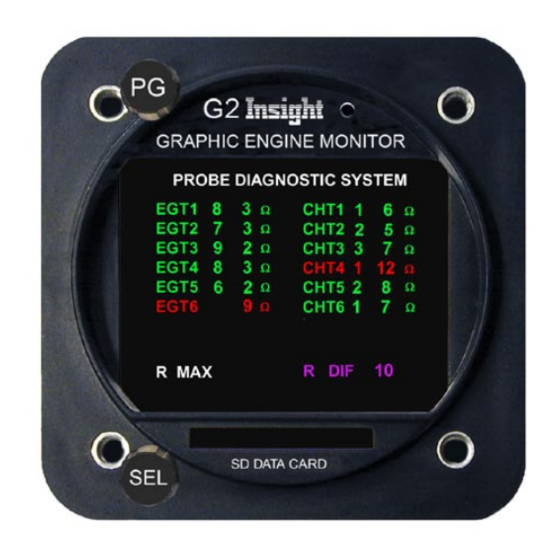

What is everything on the G2 screen?
The instrument has two control knobs that operate combination rotary and push button switches.
The top knob in general controls screen selection while the bottom knob controls items within the given screen.
Each screen assigns its own functional needs to the controls that may change depending on context.
A screen may also label the controls with guidance information like "Push to exit".
Advertisement
Related Manuals for INSIGHT G2
Summary of Contents for INSIGHT G2
- Page 1 G2 Quick Start Guide In 4 Easy Steps To Start With: What is everything on the G2 screen? The instrument has two control knobs that operate combination rotary and push button switches. The top knob in general controls screen selection while the bottom knob controls items within the given screen.
- Page 2 If you need to increase the EGT bar height, for better visablity. Push SEL and by turning SEL knob (This is preset from factory) Second push you can set target threshold for leaning by turning SEL knob. (Preset at Insight at 50 Push again to save and yellow screen will disapear.
- Page 3 Step 3 Set FUEL ONBOARD page The FUEL TOTALIZATION screen has been improved and is even easier to use. This change allows the pilot to see this screen before entering fuel on board. Also setting initial fuel can be checked and corrected in flight. Previously the pilot had to enter the amount of fuel onboard before he could view the FUEL TOTALIZATION page.
