Pronomic CLS-540 Operation Manual

Pronomic CLS-540/CLS660/CLS-880
IN-WALL FRAMELESS SPEAKER

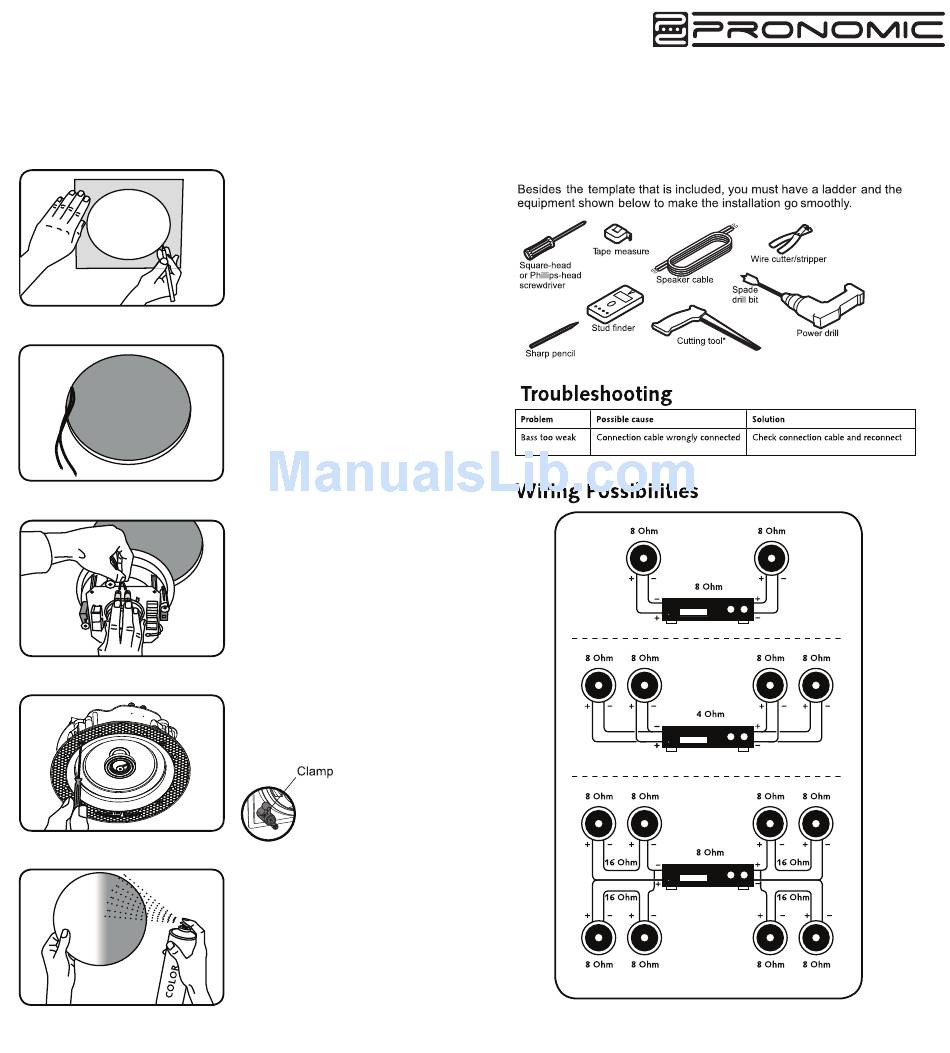

Use the enclosed template to mark out the
1
cutout, then simply cut along the line.
This is the only cut you'll need to make !

Installation

Installation depth

Model
dimenision(mm)
5.25" Φ180
6.5" Φ210
6.5" Angled Φ245
8" Φ258
2
When laying the loudspeaker cable from
the amplifier to the installation point, be
sure that the cable ends about 30 cm (12'')
beyond the wall cutout.
Please connect the speaker cable to
the screw clamps. Ensure that the
polarity is correct.
3
Tighten clamp screws until you can feel
the frame, press firmly against the wall.
This indicates that the clamp is extended
and is gripping the wall.
4
5
The grill to cover the speaker can simply be
coated with regular paint. lf the grill comes
with an additional coating this must be
removed before painting.
Speaker Operation Manual

Equipment You Will Need

(mm)
>81
>94
>120
>105
when required.
