SC&T EP01 Manual

ITEM NO: EP01
The EP01 Easy Passive POE (Power Over Ethernet), uses unused pairs of 100baseT network
cable to transmit power to remote. It is a low costs and easy solution of providing power for
network products which do not support Power Over Ethernet. Such as IP cameras, access
points, routers, modems, switchers, embedded computers or other network devices.
Over a short distance, its usually possible to use the power adapter of the powered device
such as wireless AP, IP camera, etc. The working distance normally around 30 – 40 meters.
The real distance depends on the power supply, cable type and powered device.
Easy POE – Passive
EP01
Send power to remote over unused pairs of 100baseT network cable.
Including 2 units/one pair, do not include power adapter.
Working distance depends on the power supply, cable type, and powered device.

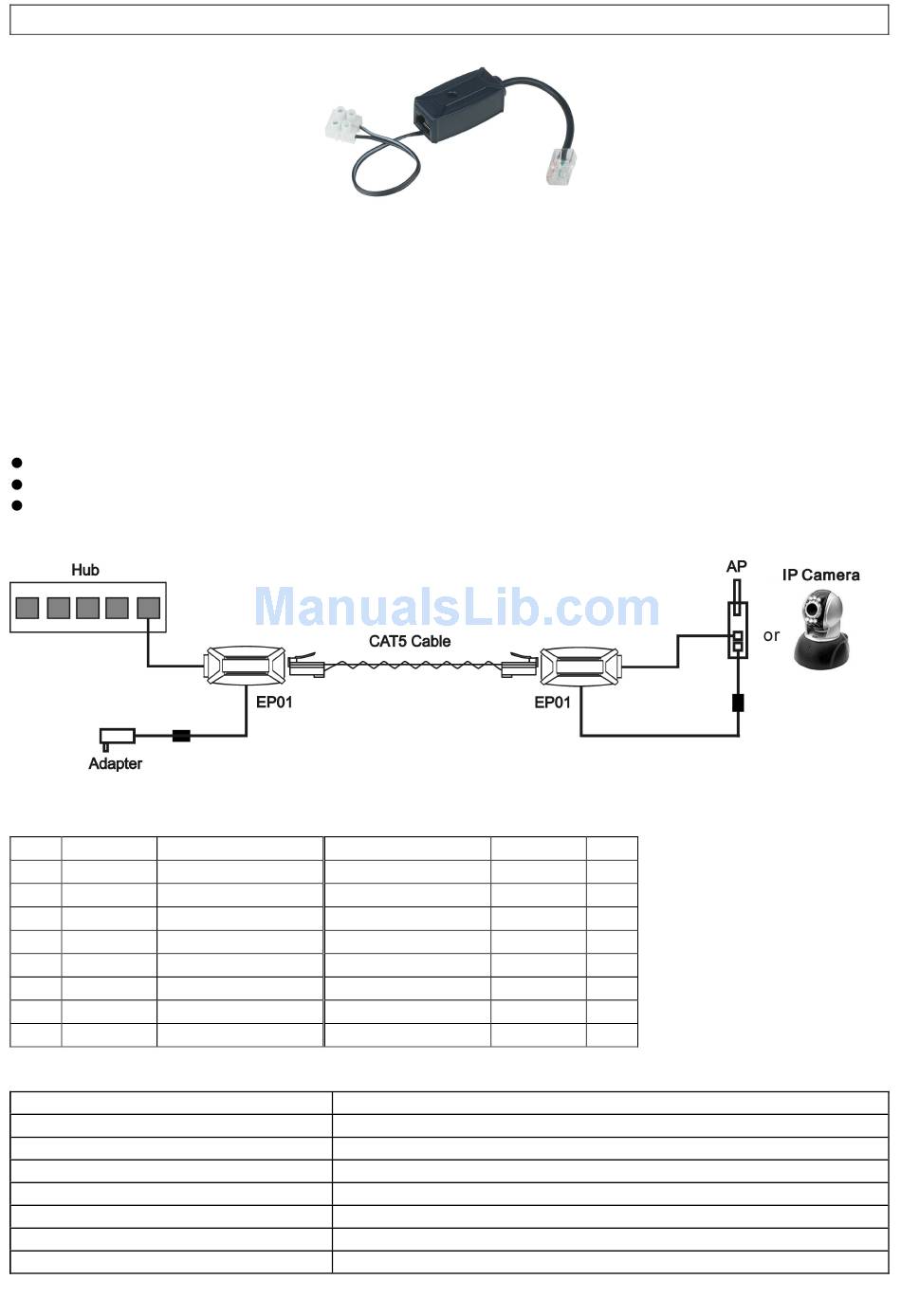

Installation View:
Note: The power voltage must go through a regulator (ref. page 2 optional model) if the
output voltage is higher than the equipment voltage.
Pin Color
1 W-O
2 O
3 W-G
4 BL
5 W-BL
6 G
7 W-BR
8 BR
Specification:
ITEM NO.
Ethernet Connector
Ethernet Data Rate
Storage Temperature
Operation Temperature
Humidity (non-condensing)
DIMENSIONS W x H x D mm
Weight (g)
EASY POE TRANSMISSION – Passive
RJ45 PLUG RJ45 JACK
Data Pair 1
Data Pair 1
Data Pair 2
N.C.
N.C.
Data Pair 2
N.C. POWER GND
N.C. POWER GND
Color
Data Pair 1 W-O
Data Pair 1
Data Pair 2 W-G
Power +
Power + W-BL
Data Pair 2
W-BR
BR
- 20 to 80 degree C
Pin
1
O 2
3
BL 4
5
G 6
7
8
EP01
RJ45
10/100Mbps
0 to 55 degree C
0 ~ 95%
53.3 x 25 x 20.7
30
1
