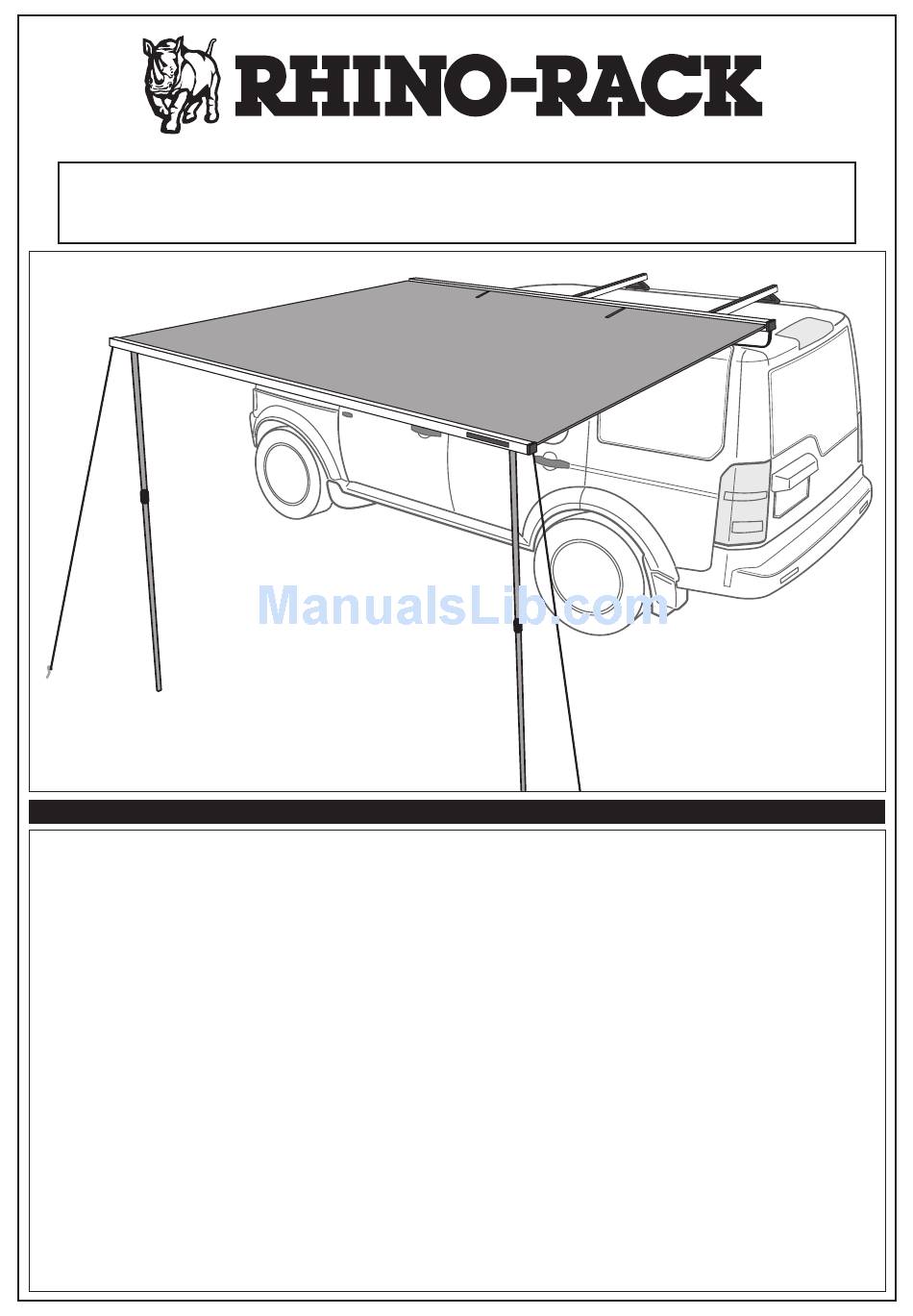

Rhino-Rack SUNSEEKER II Installation Instructions Manual

Hide thumbs Also See for SUNSEEKER II:

Advertisement

Quick Links

Download this manual See also: Manual
Important:
Please read these instructions carefully prior to installation.
Please refer to your fitting instruction to ensure that the roof racks are installed in the correct locations.
Check the contents of kit before commencing fitment and report any discrepancies.
Place these instructions in the vehicle's glove box after installation is complete.
Layout
Note: Use caution in windy conditions!
The pegs and ropes must always be used
when the SUNSEEKER II awning is open.
Recommendations
It is essential that all bolt connections be checked after driving a short distance when you first install your Rhino
SUNSEEKER II Awning. Bolt connections should be checked again at regular intervals (probably once a week
is enough, depending on road conditions, usage, loads and distances travelled). You should also check the
roof bars each time they are refitted.
Use only non-stretch fastening ropes or straps.
Rhino-Rack
SUNSEEKER II Awning
Important Information

Advertisement

loading
Need help?

Need help?

Do you have a question about the SUNSEEKER II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rhino-Rack SUNSEEKER II

Summary of Contents for Rhino-Rack SUNSEEKER II

  • Page 1 It is essential that all bolt connections be checked after driving a short distance when you first install your Rhino SUNSEEKER II Awning. Bolt connections should be checked again at regular intervals (probably once a week is enough, depending on road conditions, usage, loads and distances travelled). You should also check the roof bars each time they are refitted.
  • Page 2 Rhino-Rack SUNSEEKER II Awning Parts List For Sportz / Aero Crossbar / Pioneer Trays Item Component Name Rhino SUNSEEKER II Awning Crossbar Bracket M8 x 20mm T-Bolt M8 X 17mm Flat Washer M8 Nyloc Nut M8 Channel Nut M8 Spring Washer...
  • Page 3 Rhino-Rack SUNSEEKER II Awning Minimum Crossbar Distance RHINO SPORTZ Distance measured from bar centre to bar centre RHINO AERO MINIMUM 800mm Distance measured from bar centre to bar centre RHINO HEAVY DUTY Fitting Instruction For Sportz / Aero Crossbar / Pioneer...
  • Page 4 Rhino-Rack SUNSEEKER II Awning Insert the crossbar bracket Insert the crossbar bracket assemblies as shown. assemblies as shown. Zipper Zipper Cut buffer strip to size. Cut buffer strip to size. Adjust the location of the crossbar bracket assembly Adjust the location of the crossbar bracket assembly to suit the crossbar distance on your vehicle.
  • Page 5 Rhino-Rack SUNSEEKER II Awning Ensure that The awning the awning must not sit sits within the further out than bar end the bar end Operation Instruction Undo the hook and loop fastener straps at (A) and (B). Unroll the awning fabric as shown.
  • Page 6 Rhino-Rack SUNSEEKER II Awning Swing the side pole outwards, loosen and extend inner pole as shown. Repeat for the other side.
  • Page 7 Rhino-Rack SUNSEEKER II Awning Swing the pole downwards as shown. Extend pole and secure it in place.
  • Page 8 Rhino-Rack SUNSEEKER II Awning Extend each inner pole into the opposite bar as shown. Apply outward pressure, then twist and lock pole into position. Repeat on the other side. Tension awning to the horizontal poles with the hook and loop...
  • Page 9 Rhino-Rack SUNSEEKER II Awning Metal Hook Guy Rope Approx. 45º GROUND Metal Peg approx. 45 ° degrees...
  • Page 10 Rhino-Rack SUNSEEKER II Awning RAIN Storing Instruction Undo the metal hooks, guy ropes and pegs. Store these items away in the supplied bag. Undo the hook and loop fastener straps and swing each pole away from you.
  • Page 11 Rhino-Rack SUNSEEKER II Awning Place your arms wide apart and pull the fabric towards you as you roll it up. This will help to align the awning fabric and keep it rolled up neatly. Push the horizontal poles into the recess in the bar. Secure awning with hook and loop fastener straps.
  • Page 12 Rhino-Rack SUNSEEKER II Awning Place the cover over the secured awning. Zip up the awning when not in use.
  • Page 13 Rhino-Rack SUNSEEKER II Awning Awning Extension Adapter (to use with SUNSEEKER II accessories) Part 31101 Part 31101 approx. 45 ° degrees Optional Side Wall Extension (Sold Separately) Part 32112 Learn more about roof racks and cargo carriers we have.
