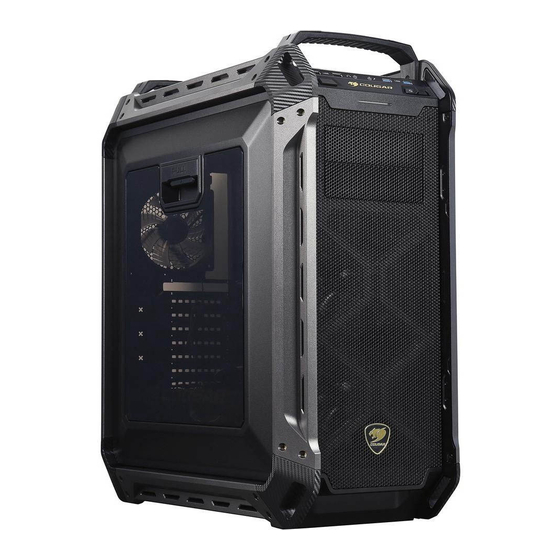

COUGAR Panzer Max Assembly Instructions

PANZER
M A X
T HE U LT IM AT E C O M P U TE R C AS E
COUGAR Facebook
Accessory Kit
1
Power Supply Screws
2
MBD/HDD screws
3
SSD screws
4 ODD screws
5
Short fan screws
6 Headphone hook screws
Shockproof rubber washers
7
for top fans
8
Cable Ties
9
Water cooling orifices
10
Headphone hook
11 Fan connection splitter
12
Stand-off
Compucase Enterprise Co.,Ltd.
No. 225, Lane 54, An Ho Road Sec. 2 Tainan, For more information, please visit www.cougargaming.com
Taiwan, R.O.C Compucase Enterprise Co.,Ltd.
Tel:+886-6-356-0606 All rights reserved.
www.cougargaming.com
Service E-Mail: service@cougargaming.com

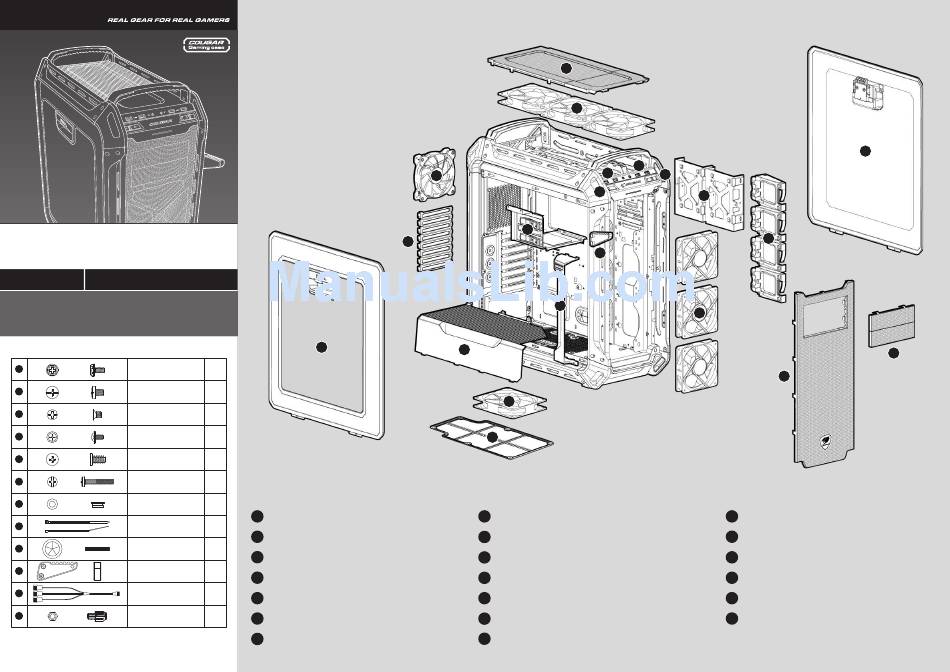

Assembly Drawing
F
X 4
X 16
X 20
X 8
X 16
X 2
X 4
A
Power button / Reset button
X 4
B
Fan controller
X 3
C
USB 3.0 / USB 2.0 / HD audio ports
X 1
D
Removable front panel
X 2
E
Removable 5.25" cover
X 2 F
Left cover with transparent window
G
Right side cover
R
Q
S
I
H
L
M
O
P
H
Vented slot cover
I
5.25" device bays (tool-less)
J
3.5" HDD trays (compatible with 2.5" HDD/SSD)
K
2.5" HDD trays
L
Air Guide
M
Power supply cover
N 3 x 140/120mm fans for front panel
(2 x 120mm fans pre-installed, other fans are optional, to be purchased separately)
C
C
B
A
J
K
T
N
O
1 x 140/120mm fan for bottom panel (optional, purchased separately)
P
Air filter on bottom cover to prevent dust from entering the power supply
Q
2 x140mm / 3 x 120mm fans for top panel (optional, purchased separately)
R
Top panel
S
1 x 120mm fan for rear panel (pre-installed)
T
Headphone hook
G
E
D
