Bahco Fixed-Setting Torque Screwdrivers BE-6990-IP Specification

BE-6990-IP
Fixed-Setting Torque Screwdrivers
®
for TORX and TORX PLUS
Patent No.: US 6,487,943 B1 (USA), SE 513 457 (Sweden),
TW 143955 (Taiwan) Patent pending: Europe, Japan
®
head screws

Applications

Torque Screwdriver BE-6990-IP was specially developed for changing
cutting plates on automatic cutting machines, in order to ensure consistent
accurate cutting.
Incorrectly tightened screws produce an untidy cut surface and cause the
cutting plates to wear out quickly. Excessively high tightening torque leads
to rapid screw fracture.

Operation

Torque Screwdriver BE-6990-IP uses a built-in spring. It is preset to a fixed
torque and cannot be recalibrated. The blades can be changed.

Finish of the blade

Blade made of VANADIUM EXTRA. Blade nickel- and chrome-plated,
hardened over the entire length, tip black oxidized.

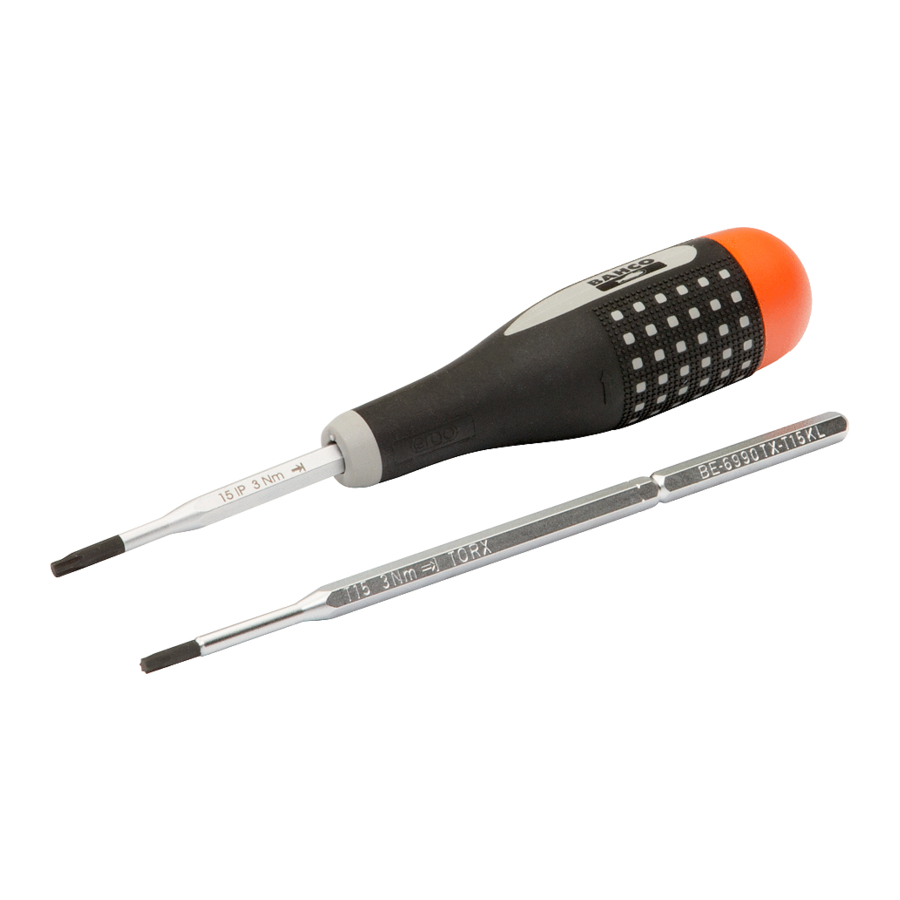

2-in-1 Set
with one TORX
one TORX PLUS
Sliding T-handle
with locking mechanism
and one TORX
one TORX PLUS
BE-6990-IP6 – IP15
Accuracy ±10% with a lifetime up to at
least 20,000 applications.
®
and
®
blade
Material
Ergonomically designed 2-component
handle made of polyamide and
thermoplastic elastomer.
BE-6990-IP20 – IP25
Accuracy ± 6 % with a lifetime up to at
least 20,000 applications.
®
and
Material
®
blade
3-component handle made of polyamide,
ESD Nitrile Rubber, shore hardness
70 degrees and aluminium alloy with
anodisied black finish.
