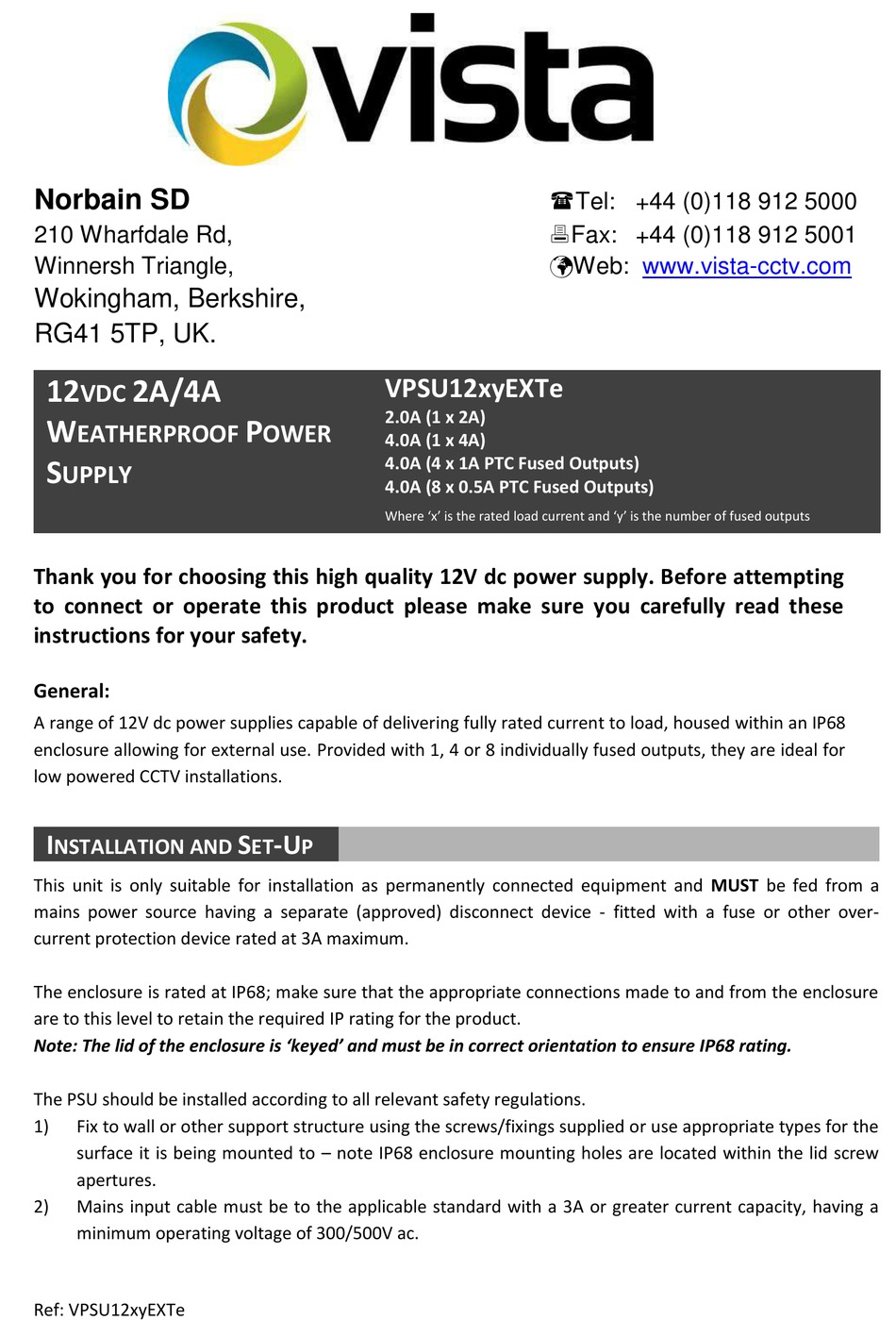

Vista VPSU1221EXTe Manual

Norbain SD
210 Wharfdale Rd,
Winnersh Triangle,
Wokingham, Berkshire,
RG41 5TP, UK.
12 2A/4A
VDC
W
EATHERPROOF
S
UPPLY
Thank you for choosing this high quality 12V dc power supply. Before attempting
to connect or operate this product please make sure you carefully read these
instructions for your safety.
General:
A range of 12V dc power supplies capable of delivering fully rated current to load, housed within an IP68
enclosure allowing for external use. Provided with 1, 4 or 8 individually fused outputs, they are ideal for
low powered CCTV installations.
I
NSTALLATION AND
This unit is only suitable for installation as permanently connected equipment and MUST be fed from a
mains power source having a separate (approved) disconnect device - fitted with a fuse or other over-
current protection device rated at 3A maximum.
The enclosure is rated at IP68; make sure that the appropriate connections made to and from the enclosure
are to this level to retain the required IP rating for the product.
Note: The lid of the enclosure is keyed and must be in correct orientation to ensure IP68 rating.
The PSU should be installed according to all relevant safety regulations.
1) Fix to wall or other support structure using the screws/fixings supplied or use appropriate types for the
surface it is being mounted to – note IP68 enclosure mounting holes are located within the lid screw
apertures.
2) Mains input cable must be to the applicable standard with a 3A or greater current capacity, having a
minimum operating voltage of 300/500V ac.
Ref: VPSU12xyEXTe
VPSU12xyEXTe
2.0A (1 x 2A)
P
OWER
4.0A (1 x 4A)
4.0A (4 x 1A PTC Fused Outputs)
4.0A (8 x 0.5A PTC Fused Outputs)
Where x is the rated load current and y is the number of fused outputs
S -U
ET P
Tel: +44 (0)118 912 5000
Fax: +44 (0)118 912 5001
Web:
www.vista-cctv.com
1
