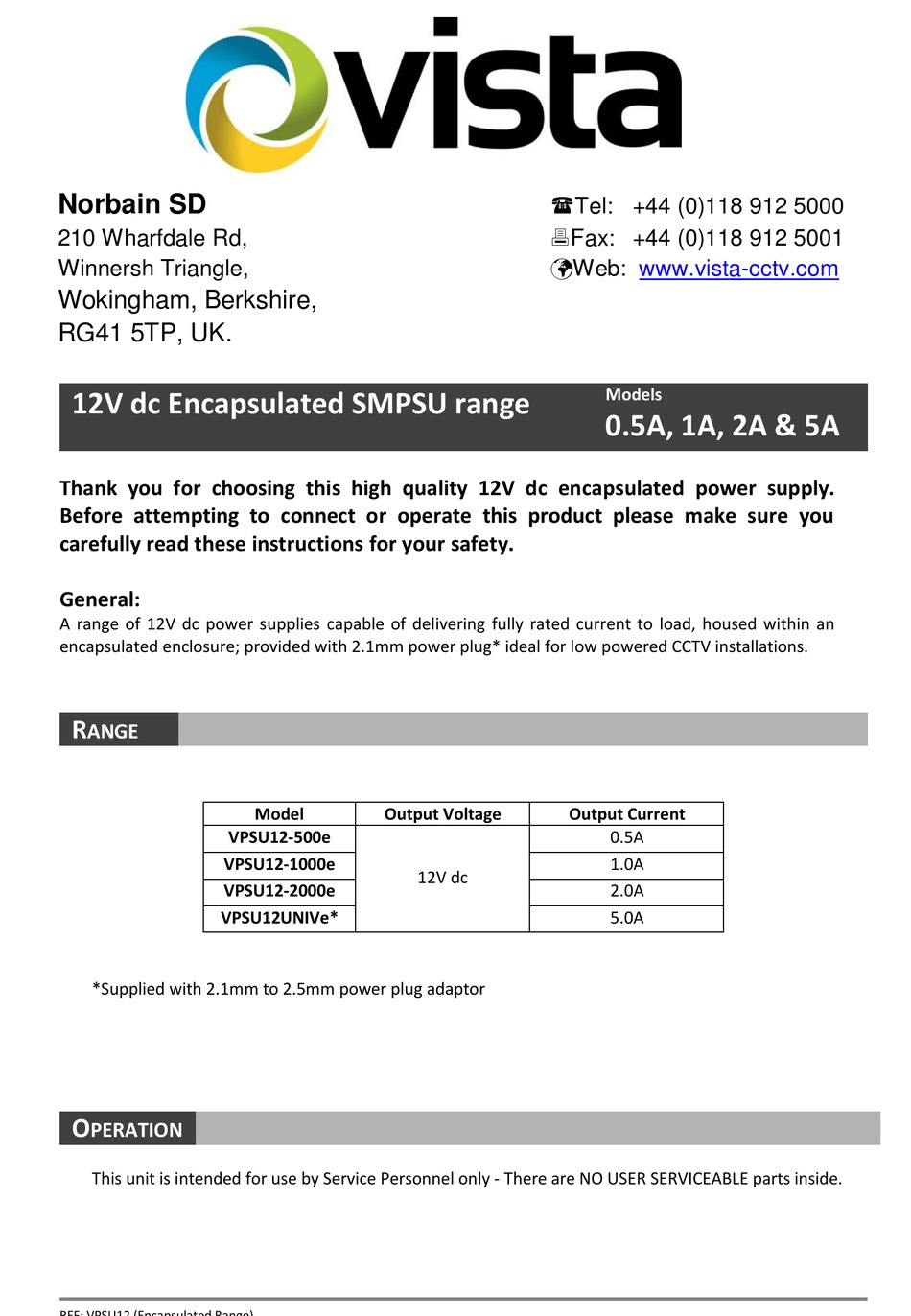

12V dc Encapsulated SMPSU range
Thank you for choosing this high quality 12V dc encapsulated power supply.
Before attempting to connect or operate this product please make sure you
carefully read these instructions for your safety.
General:
A range of 12V dc power supplies capable of delivering fully rated current to load, housed within an
encapsulated enclosure; provided with 2.1mm power plug* ideal for low powered CCTV installations.
R
ANGE
VPSU12-500e
VPSU12-1000e
VPSU12-2000e
VPSU12UNIVe*
*Supplied with 2.1mm to 2.5mm power plug adaptor
O
PERATION
This unit is intended for use by Service Personnel only - There are NO USER SERVICEABLE parts inside.
REF: VPSU12 (Encapsulated Range)
Model
Output Voltage
12V dc
Tel: +44 (0)118 912 5000
Fax: +44 (0)118 912 5001
Web:
www.vista-cctv.com
Models
0.5A, 1A, 2A & 5A
Output Current
0.5A
1.0A
2.0A
5.0A
