System 3
IP Address:
Netmask:
You can configure the IP address manually through the touchscreen interface. See
"To enable manual configuration:" below or "Status" on page 8-14.
Dynamic mode
In dynamic mode a client is provided with a temporary IP address for a given length
of time. The duration is dependent on the server configuration and may range from
several hours to months.
The RV2 will automatically renew the current IP address as needed. This renewal is
used by properly functioning clients to maintain the same IP address throughout their
connection to a network.
Accessing the RV2
There are two methods provided for accessing the RV2:
•
•
Direct Connection to a PC
Direct connection to a PC allows data on the RV2 to be viewed and modified
through the standard Microsoft Windows file sharing protocol.
Important: When using a Static IP, the RV2 Current IP must be set to "Configure Manually"
using the touch screen interface.
To enable manual configuration:
1.
2. Touch the Configure Manually check box and click OK to accept the
Using Windows 7
To access the RV2 file system through a PC, running Windows 7:
3. You will have to configure the PC TCP/IP settings. Open Control Panel
4. Click the desired connection link (this is usually a Local Area Connection).
5. In the status dialog, click the Properties button.
10.1.0.42
255.255.255.0
Directly connecting to a PC
Connection to a local area network

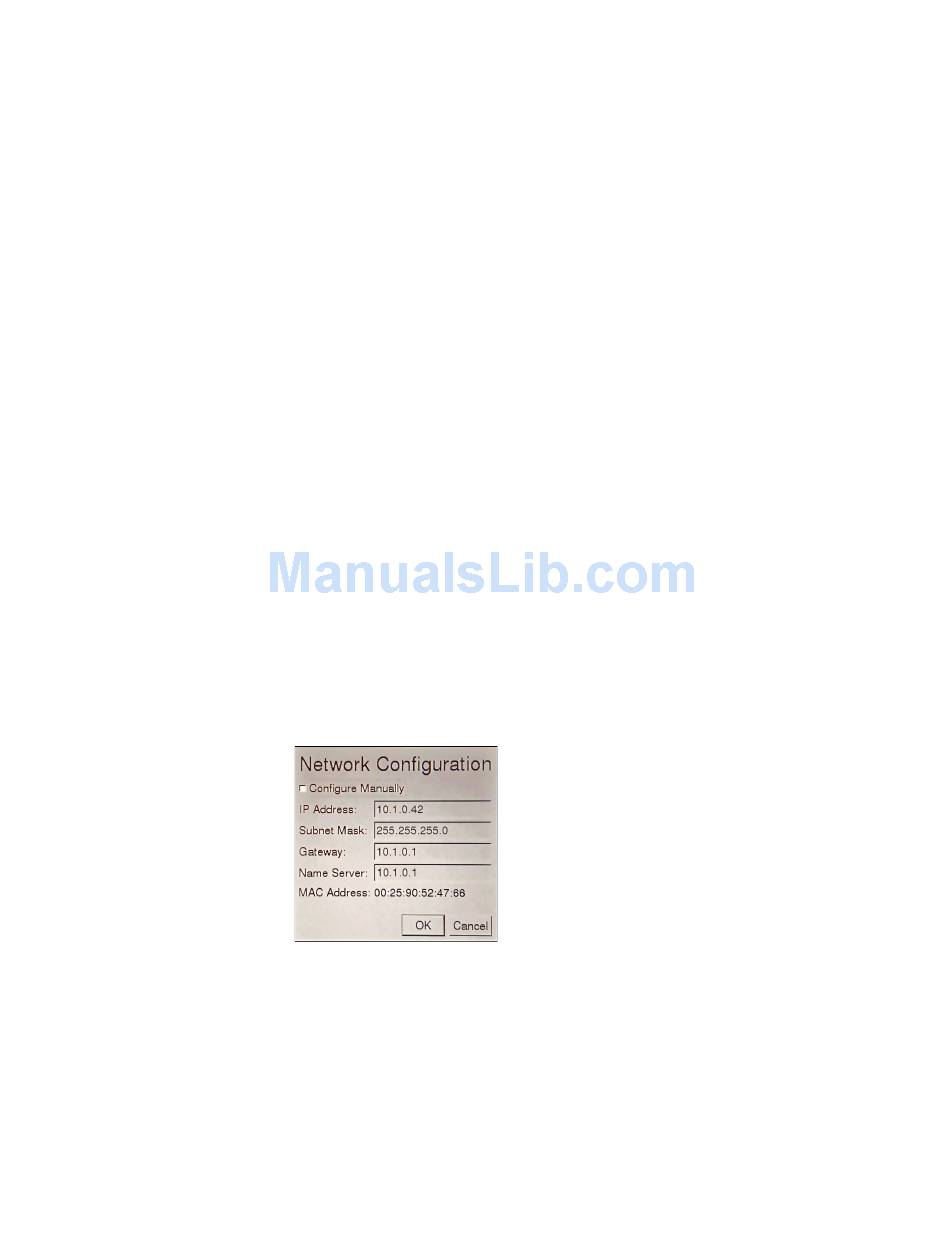

Touch the Status Tab and then touch the Current IP field, to display the
Network Configuration window.
default value.
then double-click Network and Sharing Center.
8-7
RV2 Video Processor
