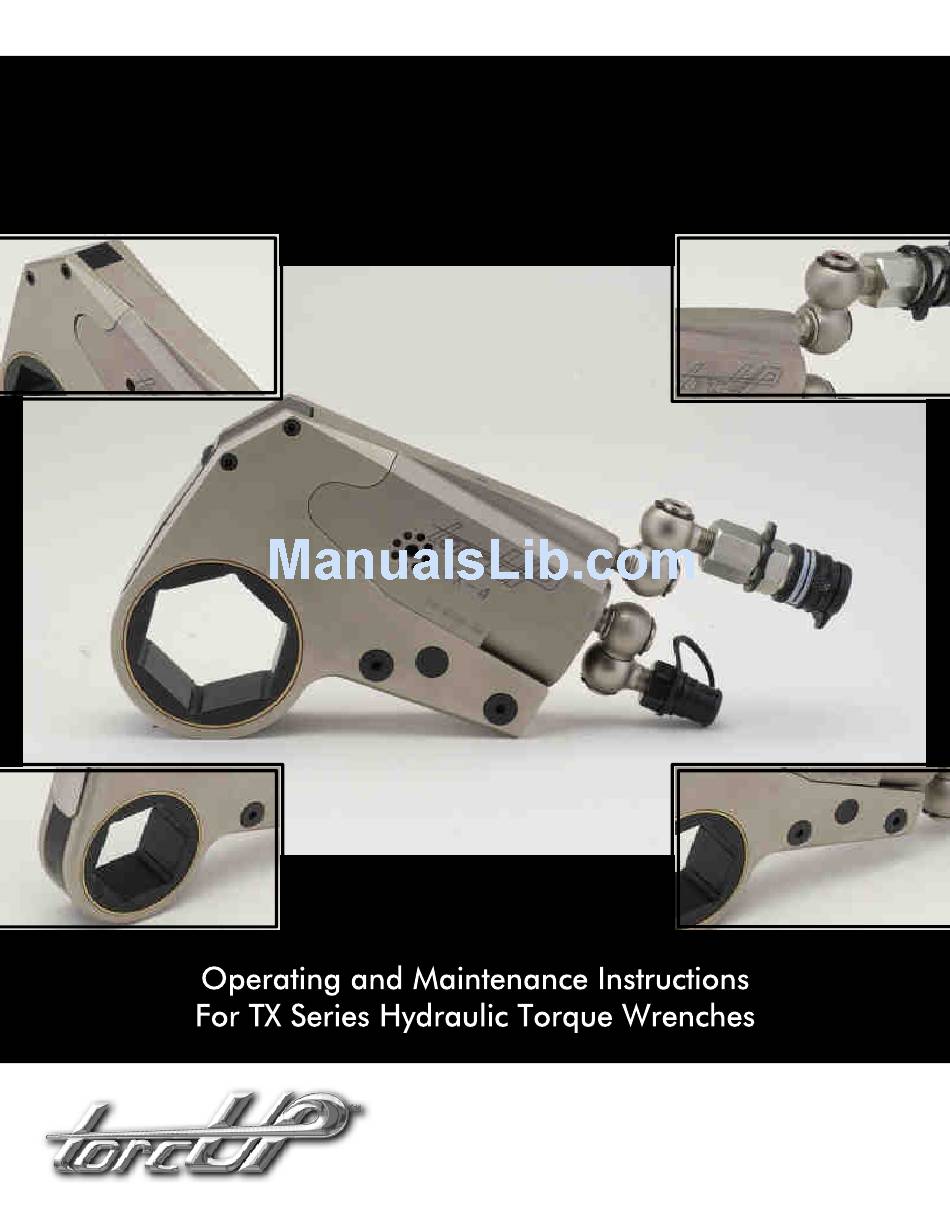

- Page 1 TX Series 1025 Conroy Place, Easton PA 18040 Phone: 610-250-5800 * Fax: 610-250-2700 Toll-Free: 1-888-TORCUP-1 E-mail: sales@torcup.com * Website: www.torcup.com...
- Page 2 NOTICE The use of other than genuine TorcUP replacement parts may result in safety hazards, decreased tool performance, and increased maintenance, and may invalidate all warranties. Repairs should be made only by authorized personnel. Consult your nearest TorcUP Authorized Service Center.
- Page 3 FAILURE TO OBSERVE THE FOLLOWING WARNINGS COULD RESULT IN INJURY USING THE TOOL • Keep hands, loose clothing and long hair away • Use accessories recommended by TorcUP. • Use only impact sockets and accessories. Do not use from the reaction arm and working area during operation.
- Page 4 PLACING THE TOOL IN SERVICE ADJUSTMENTS NOT allow the tool to react against the hoses, swivels, or inlets. 3. After having turned the Pump on and presetting the SETTING THE TORQUE pressure for the correct torque, depress the remote After determining the desired torque, use the torque con- control button to advance the Piston Assembly.
- Page 5 TX Series Torque Conversion Chart Bar/N.M. TX-2 TX-4 TX-8 TX-16 TX-32 Hex 3/4" to 1-13/16" 1-7/8" to 2-3/8" All Hex Sizes All Hex Sizes 2-5/8" to 3-15/16" 4" to 4-5/8" 2-7/16" to 4-5/8" 4-11/16" to 6-1/2" Sizes 19 to 46MM...
- Page 6 TX Series Torque Conversion Chart P.S.I./FT./lbs TX-2 TX-4 TX-8 TX-16 TX-32 3/4" to 1-13/16" 1-7/8" to 2-3/8" All Hex Sizes All Hex Sizes 2-5/8" to 3-15/16" 4" to 4-5/8" 2-7/16" to 4-5/8" 4-11/16" to 6-1/2" Sizes 19 to 46MM 47 to 60MM All Hex Sizes All Hex Sizes...
- Page 7 TX-45 Torque Conversion Chart TX-45 Torque Conversion Chart P.S.I./FT./lbs Bar/N.M. TX-45 TX-45 2 7/16” to 4 5/8” 4 11/16” to 6 ½” 2 7/16” to 4 5/8” 4 11/16” to 6 ½” Sizes 80mm to 115mm 115mm to 155mm Sizes 80mm to 115mm 115mm to 155mm P.S.I.
- Page 8 TX-2, TX-4, TX-8 SERIES LINK TX-16, TX-32 SERIES LINK 8/20...
- Page 9 Part TX-2 TX-4 TX-8 TX-16 TX-32 SIDE PLATE - L TX-2-L01 TX-4-L01 TX-8-L01 TX-16-L01 TX-32-L01 SIDE PLATE - R TX-2-L02 TX-4-L02 TX-8-L02 TX-16-L02 TX-32-L02 DRIVE PLATE TX-2-L03 TX-4-L03 TX-8-L03 TX-16-L03 TX-32-L03 DRIVE PIN TX-2-L05 TX-4-L05 TX-8-L05 TX-16-L05 TX-32-L05 DRIVE PIN SPRING...
- Page 10 TX-2, TX-4, TX-8 SERIES CYLINDER TX-16, TX-32 SERIES CYLINDER 10/20...
- Page 11 TX-4-C51 TX-8-C51 TX-16-C51 TX-32-C51 PISTON ROD ASSEMBLY TX-2-C03 TX-4-C03 TX-8-C03 TX-16-C03 TX-32-C03 PISTON ROD TX-2-C03-1 TX-4-C03-1 TX-8-C03-1 TX-16-C03-1 TX-32-C03-1 PISTON CAP TX-16-C03-2 TX-32-C03-2 VALVE BALL TX-2-C03-3 TX-4-C03-3 TX-8-C03-3 TX-16-C03-3 TX-32-C03-3 VALVE SPRING TX-2-C03-4 TX-4-C03-4 TX-8-C03-4 TX-16-C03-4 TX-32-C03-4 VALVE HOLLOW LOCK...
- Page 12 TX-45 Series Cylinder 12/20...
- Page 13 Part Numbers for Ordering (CYLINDERS) Part TX-45 HOUSING TX-45-C01 PISTON ROD ASSEMBLY TX-45-C03 PISTON ROD TX-45-C03-1 PISTON TX-45-C03-2 VALVE BALL TX-45-C03-3 VALVE SPRING TX-45-C03-4 VALVE HOLLOW LOCK TX-45-C03-5 WASHER TX-45-C03-6 SLIDER TX-45-C09 END CAP TX-45-C11 LINK PIN TX-45-C15 SPRING PLUNGER TX-45-C25 SLIDER PIN TX-45-C27...
- Page 14 Housing. 3. Grasp the Housing in copper-covered or leather- covered vise jaws with the inlet end upward. 4. For TX-2 use a Phillip’s Head screw-driver and TX-4 NOTICE models, use a hex wrench to unscrew and remove the During removal and after the piston shaft is removed;...
- Page 15 Right Side Plate. the narrow end. 9. For Series TX-2, TX-4, and TX-8, unscrew the two 6. Position the Drive Pin Spring (5) in the drive plate slot Spacer Screws and remove the Upper Spacer (8) from with the two non-connected ends between the Drive the Right Side Plate.
- Page 16 End Cap. between the Ratchet and the Drive Segment causing the tool to malfunction. Assembly of the TX-2, TX-4, and TX-8 Cylinder 7. Wipe a thin film of Marine Moly Grease onto the Assemblies inner race of the large opening in the Drive Plate.
- Page 17 12. For TX-2 and TX-4 models position the End Cover (13) against the Housing and after applying a Assembly of the Tool non-permanent thread-locking compound to the 1. With the Cylinder Assembly in one hand and the threads, install the End Cover Screw (14).
- Page 18 Troubleshooting Guide Trouble Probable Cause Solution Couplers are not securely attached to Check the Coupler connections and make the tool or pump certain that they are connected. Piston will not advance or Coupler is defective Replace any defective Coupler. retract Defective remote control switch Replace the switch and/or control pendent Dirt in the direction-control valve of...
- Page 19 9,000 9,000 10,000 10,000 19/20 Disclaimer: Please consult the calibration torque chart specific to your purchase or rental tool. TorcUP, Inc. * 1025 Conroy Place, Easton PA 18040 Phone: 610-250-5800 Fax: 610-250-2700 Toll Free: 888-TORCUP-1 (867-2871) Web: www.torcup.com E-mail: sales@torcup.com...
- Page 20 TorcUP, Inc. 1025 Conroy Place, Easton PA 18040 Phone: 610-250-5800 Fax: 610-250-2700 Toll Free: 888-TORCUP-1 (867-2871) Web: www.torcup.com E-mail: sales@torcup.com TX-1 Technical and Dimensional Data Hex Size AF Part Number Imperial Metric Hex Range From 5/8" / 17mm TX-1RL008 Hex Range To 1 5/8"...
