Summary of Contents for TorcUP TU-2

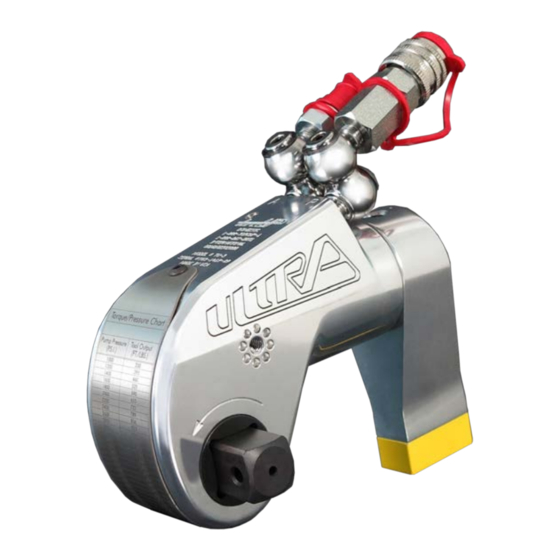

- Page 1 TU Series OPERATION AND MAINTENANCE MANUAL TU Series Hydraulic Torque Wrenches MODELS TU-2, TU-3, TU-7, TU-11, TU-20, TU-27 & TU-60 1025 Conroy Place, Easton, PA. 18040 * U.S.A. Phone: +1 610-250-5800 * Fax: +1 610-250-2700 Toll Free: 1-888-TORCUP-1 Email: sales@torcup.com * Website: www.torcup.com...
- Page 2 TorcUP Inc. is not responsible for customer modification of tools for applications on which TorcUP Inc. was not consulted.
- Page 3 Avoid sharp bends and kinks that will cause severe back-up pressure in hoses an lead to premature hose failure. • Use accessories recommended by TorcUP. • Use only impact sockets and accessories. Do not use hand (chrome) sockets or accessories.
- Page 4 To change the direction of rotation for model TU-2 TU-3, TU-7 and TU-11 simply push the square drive into the housing until the drive projects out the opposite side of the tool. For model TU-20, TU-27 & TU-60, loosen and remove the square drive retaining screw and pull the square drive out of the housing.
- Page 5 SETTING THE REACTION ARM The function of a reaction device is to hold the tool in position against the forces generated to tighten or loosen bolts or nuts. Hydraulic wrenches generate tremendous force. An improperly positioned reaction arm may result in operator injury or damage tooling.
-
Page 6: Operating The Wrench
OPERATING THE WRENCH Square Drive Position for Loosening and Tightening(Dwg.02) The position of the square drive relative to the shroud determines whether the action will tighten or loosen the nut. (Refer to Dwg. 02 for application examples). The power stroke of the piston assembly will always turn the square drive toward the shroud. - Page 7 LUBRICATION Marine Moly Grease Lubrication frequency is dependent on factors known only to the user. The amount of contaminants in the work area is one factor. Tools used in a clean room environment will obviously require less service than a tool used out-doors and dropped in loose dirt or sand. Marine Moly Grease is formulated not to wash out of the tool in areas where lubrication is critical.
- Page 8 TU Series Torque Conversion Chart P.S.I.- FT.-lbs Bar.N.M. P.S.I TU-2 TU-3 TU-7 TU-11 TU-20 TU-27 TU-60 Bar TU-2 TU-3 TU-7 TU-11 TU-20 TU-27 TU-60 ft.-lbs. ft.-lbs. ft.-lbs. ft.-lbs. ft.-lbs. ft.-lbs. ft.-lbs. N.M N.M 1,000 1198 2249 3032 6202 1071 1624...
- Page 9 TU-2,3,7,11 Series Wrench 8/21...
- Page 10 TU-20 Series Wrench 9/21...
- Page 11 TU-27 Series Wrench 10/21...
- Page 12 TU-60 Series Wrench 11/21...
- Page 13 Part Numbers For Ordering TU Series Part TU-2 TU-3 TU-7 TU-11 TU-27 TU-60 Housing TU-2-01 TU-3-01 TU-7-01 TU-11-01 TU-27-01 TU-60-01 Housing Threaded Plug TU-11-39 TU-27-39 TU-60-39 Reaction Arm TU-2-03-1 TU-3-03-1 TU-7-03-1 TU-11-03-1 TU-27-39 TU-60-03-1 Reaction Arm Cover TU-2-03-7 TU-3-03-7 TU-7-03-7...
- Page 14 Part Numbers For Ordering TU Series TU-20 Part TU-20 QTY. HOUSING TU-20-01 SPLINED SLEEVE TU-20-02 REACTION ARM TU-20-03-01 GATE TU-20-03-02 GATE LEVER LINK TU-20-03-03 GATE LEVER TU-20-03-04 GATE LEVER SPACER TU-20-03-05 GATE BOLT TU-20-03-06 REACTION ARM BOOT TU-20-03-07 GATE LINK PIN TU-20-03-08 GATE LEVER PIN TU-20-03-09...
-
Page 15: Maintenance Section
MAINTENANCE SECTION Always turn off the power supply, bleed off hydraulic fluid from the hose connections on the cylinder assembly and disconnect the hoses before attempting to repair or perform maintenance on this tool. Always wear eye protection when operating or performing maintenance on this tool. DISASSEMBLY GENERAL INSTRUCTIONS 1. - Page 16 8. For TU-2, TU-3, TU-7 and TU-11, and TU-20 models, insert a hex wrench through the larger opening in the square drive and unscrew the square drive locking pin (14) inward against the square srive spring (13) while pulling or pushing the square drive out of the tool.
- Page 17 MAINTENANCE SECTION In the following step, DO NOT grasp the shaft of the piston assembly with any device that will mar, bur or otherwise damage the shaft or the drive plate end of the shaft. 16. Pull the piston assembly out of the housing. If the assembly is tight in the housing and difficult to pull, inject air into the inlet opening while holding the Housing over a container that will not dam age the piston when it is expelled.
- Page 18 18. For TU-2, TU-3, TU-7 and TU-11 models, proceed as follows: a) From inside the housing ears, insert a driver sleeve (16) into each ear with the detent end of the sleeve trailing.
- Page 19 6. For TU-2, TU-3, TU-7 and TU-11 models, apply a suitable thread–locking compound to the threads of the reaction arm retract button (8) and using a screwdriver, screw the button tightly into the threaded hole in the engagement pin.
- Page 20 MAINTENANCE SECTION ASSEMBLY OF THE TU-20 REACTION ARM (page 10) 1. If the reaction arm boot (4) was removed, push it onto the end of the reaction arm and insert the boot pin to retain the boot using a hammer. 2.
-
Page 21: Troubleshooting Guide
TROUBLESHOOTING GUIDE Trouble Probable Cause Solution Couplers are not securely Check the coupler connections and attached to the tool or pump make certain that they are connected Coupler is defective Replace any defective coupler. Piston will not advance or Defective remote control Replace the switch and/or control retract switch... - Page 22 SAVE THESE INSTRUCTIONS DO NOT DESTROY NOTES: 1025 Conroy Place, Easton, PA. 18040 * U.S.A. Phone: +1 610-250-5800 * Fax:+1 610-250-2700 Toll Free: 1-888-TORCUP-1 Email: sales@torcup.com * Website: www.torcup.com 21/21...
