All functions work at the same time, but we will first show a variety of the more simple setups.
Please keep in mind that tube amplifiers must be connected to an
appropriate load (cabinet or loadbox). Always plug the speaker output from
your amp to the speaker input of the Torpedo Reload, and select the
matching impedance.
Always use a standard speaker cable between the amplifier speaker out and
the Torpedo Reload SPKR IN. A speaker cable and an instrument cable may
look similar. You may have to open the jack connector and see for yourself:
the speaker cable is unshielded and carries the powerful signal through two
insulated conductors, the instrument cable is shielded and has only one
internal conductor. Using an instrument cable instead of a speaker cable
can cause significant damage to your amplifier, requiring service by a
technician.

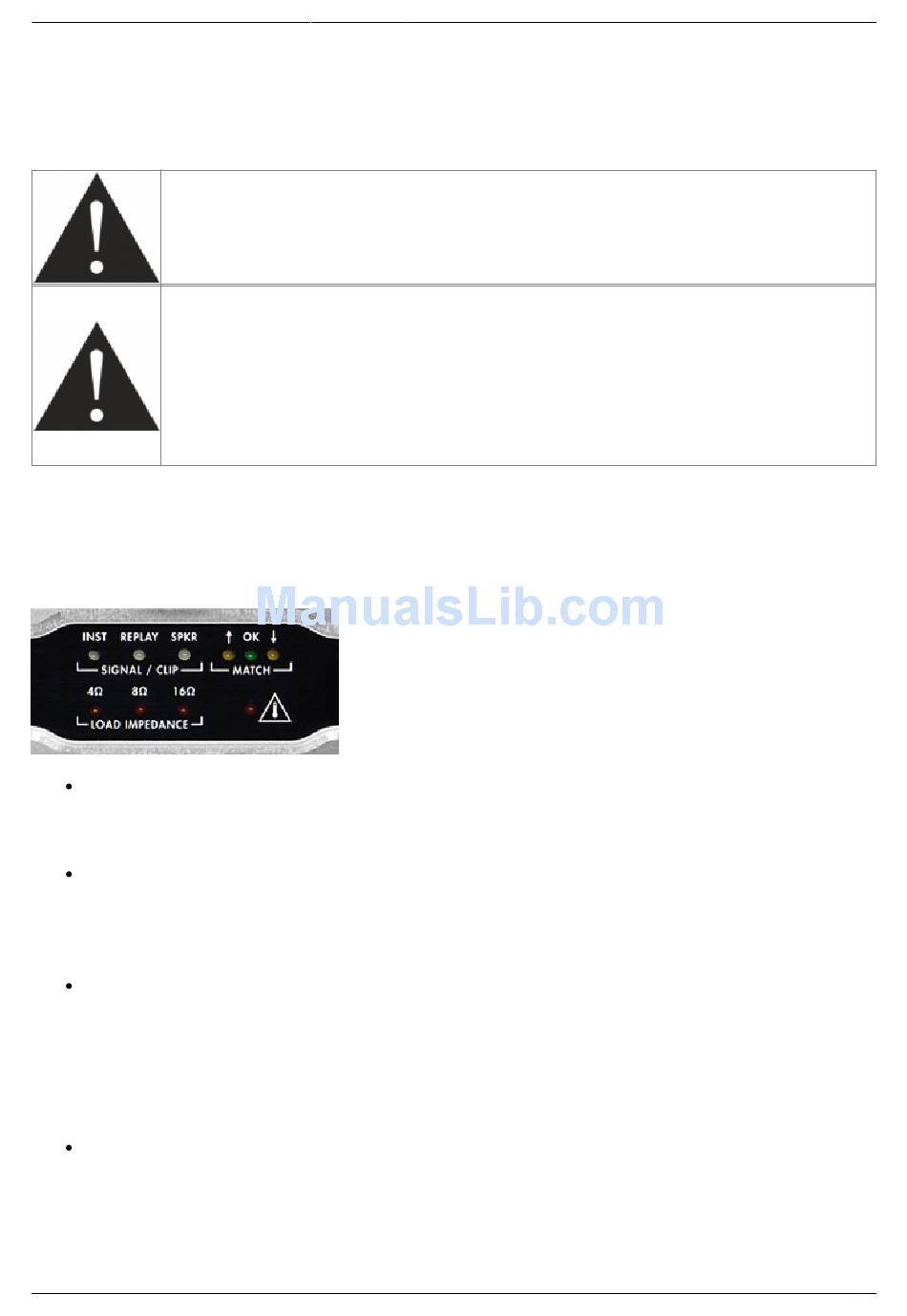

4.2 LED indicators
You will find different LED indicators on the Torpedo Reload front panel:
SIGNAL / CLIP: indicates the presence of a signal in either the DI, REPLAY™ or SPEAKER input
(green color). The LED lights up red whenever that signal is too strong — if so, you need to
lower the volume at the corresponding input.
MATCH™: Increase the REPLAY™ potentiometer value if the up arrow lights up, and lower the
value if the down arrow lights up. "OK" means that the level of the signal sent to the amplifier
through the REPLAY™ Amp Out and that of the guitar's signal in the DI input are at matching
volumes.
LOAD IMPEDANCE: shows the selected impedance on the Torpedo Reload. This value must
match the value of your amplifier's speaker output. Go to the back of the Torpedo Reload and
select either 4, 8 or 16 Ohms.
NB: The Torpedo Reload must be turned off when you select the SPEAKER input
impedance. Your amplifier should not be powered on during the process.
Overheating warning: this last indicator will light up if the temperature inside the Torpedo
Reload is too high, which activates the security load. If so, please lower the volume on your
amplifier or stop playing for some time, so the temperature decreases.
