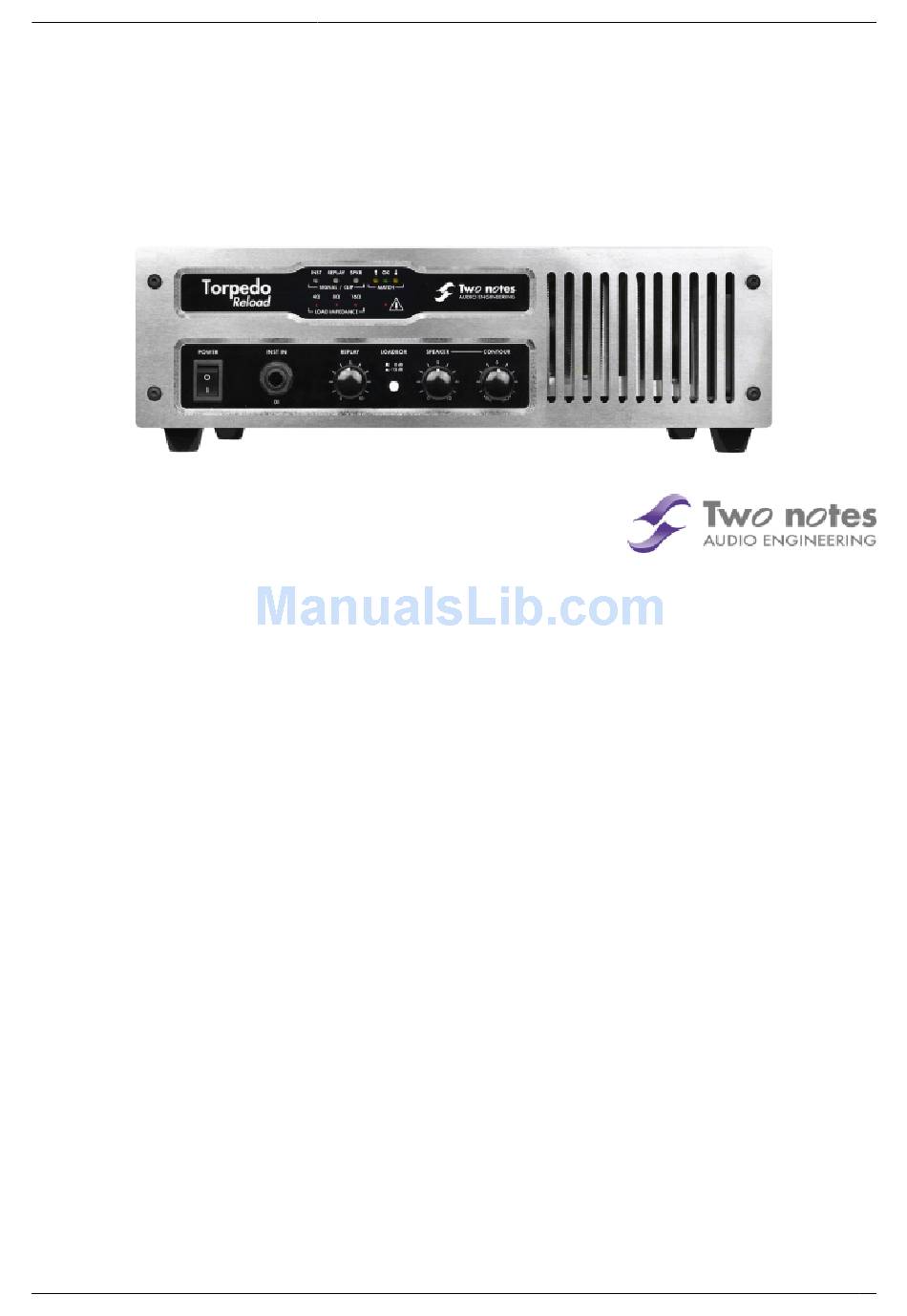

Two Notes Torpedo Reload User Manual

Guitar connectivity...perfected.
Hide thumbs Also See for Torpedo Reload:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
2018/06/02 13:16
Torpedo Reload User's Manual
Guitar Connectivity... Perfected!
The complete electronic version of this manual, as well as the Two notes Audio Engineering software
and hardware products, are subject to updates. You can download the most recent versions of the
products on the
Two notes Audio Engineering
This manual describes the Torpedo Reload and provides instructions for its operation. It is highly
recommended that you read this document before using the product. The contents of this manual
have been thoroughly verified and it is believed, unless stated otherwise, to accurately describe the
product at the time of shipment from the factory or download from our website.
Two notes Audio Engineering is a registered trademark of:
OROSYS SAS
76 rue de la Mine
34980 Saint-Gély-du-Fesc
France
Tel: +33 (0)484 250 910
Fax: +33 (0)467 595 703
Contact and support:
Website:
http://www.two-notes.com
This document is the exclusive property of OROSYS SAS. In the interest of product development,
OROSYS SAS reserves the right to change technical specifications, modify and/or cease production
without prior notice. OROSYS SAS cannot be held responsible for any damage, accidental or
otherwise, that results from an inappropriate use of the Torpedo Reload. Please refer to the safety
instructions included in this manual. The reproduction of any part of this document is strictly
forbidden without the written authorization of OROSYS SAS.
User's manuals - http://wiki.two-notes.com/
1/27
http://support.two-notes.com
website.
Torpedo Reload User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Torpedo Reload and is the answer not in the manual?

Questions and answers

Related Manuals for Two Notes Torpedo Reload

Summary of Contents for Two Notes Torpedo Reload

  • Page 1 OROSYS SAS cannot be held responsible for any damage, accidental or otherwise, that results from an inappropriate use of the Torpedo Reload. Please refer to the safety instructions included in this manual. The reproduction of any part of this document is strictly forbidden without the written authorization of OROSYS SAS.

  • Page 2: Safety Instructions

    All product names and trademarks are the property of their respective owners. Product names and trademarks found in this document were used during the development of the Torpedo Reload product but are in no way associated or affiliated with OROSYS SAS.

  • Page 3: Contents Of The Package

    1.1.5 Safety use conditions The Torpedo Reload must never be used near a heat source, near a flame, in the rain, in damp areas, near any kinds of liquids. When transporting the unit, care needs to be taken to avoid any shocks that might cause damage and therefore require the assistance of a qualified technician.

  • Page 4: Declaration Of Conformity

    Category of product: digital audio signal processor Product: Torpedo Reload Test Manager: Guillaume Pille The Two notes Torpedo Reload is certified to be compliant to the CE and FCC standards: EN 55103-1 : 1996 and EN 55103-2 : 1996. EN 60065 05/2002 + A1 05/2006.

  • Page 5: What Is A Loadbox

    Please contact your authorized TWO NOTES AUDIO ENGINEERING dealer in order to obtain an RMA to return the complete product to the Authorized TWO NOTES AUDIO ENGINEERING Service Center closest to you, with proof of purchase, during the applicable warranty period.
  • Page 6 — otherwise overheating may cause damage, both to the loadbox and to the amplifier. The Torpedo Reload is a loadbox. This term indicates that the Torpedo Reload is a load which can electrically replace the speaker cabinet while dissipating (transforming into heat) the power coming out of the amplifier.
  • Page 7 • The Torpedo Reload has a built in fan, as there is quite a lot of power dissipated into heat inside the box. We selected a so called “silent fan”, but as it is running fast, it is never entirely silent. This said, you can consider that, in normal use (hearing your guitar through monitors, or headphones), you can barely hear the fan.

  • Page 8: Front Panel

    Recording your guitar or bass amplifier in silence has always been the purpose of the Torpedo products, but with the Torpedo Reload Two Notes has striven to gather together all of the major functions and products you may need in a recording room: A Hi-Z instrument DI so you can record you guitar’s signal directly;...

  • Page 9: Rear Panel

    6. REPLAY™ I/Os 3. RE-ACT™ speaker outputs 3.4 The Torpedo Reload’s advanced functions 3.4.1 RE-ACT™ Attenuators are usually known for the negative impact they have on your tone in cases of heavy attenuation, which ismainly due to the fact that the load presented to the amplifier will vary depending on the attenuation level.
  • Page 10 Torpedo Wall of Sound plug-in. Please note that here is no hardwired splitter function in the Torpedo Reload. To feed at the same time your DAW and an amplifier, you will need to send back the signal from the DAW using the REPLAY™...
  • Page 11 This problem is now solved, thanks to the Torpedo Reload’s unique MATCH™ feature. 3.4.4 MATCH™ This Two Notes innovation is the solution to the problem of level adjustment when re-amplifying. If the level is too high your amplifier will tend to over-saturate, if the level is too weak the tone will lack dynamics and liveliness.
  • Page 12 The Torpedo Reload comes with a Torpedo Wall of Sound plugin license. Torpedo Wall of Sound offers a “virtual” alternative to traditional miking to achieve a degree of realism never experienced previously with simulators.
  • Page 13 Torpedo Wall of Sound gives you the possibility to use it too. To that effect, Two notes Audio Engineering has developed an original tube-stage modeling that gives you a choice of 4 different tube models (6L6, EL34, EL84 and KT88) in Push-Pull (PP) in AB class, or Single Ended (SE) in A class configurations.
  • Page 14 Torpedo Wall of Sound. 4 Connecting the Torpedo Reload 4.1 Overview The Torpedo Reload offers a solution for silent and quality sound pick-up in many situations. The following illustrations show the most common situations the Torpedo Reload has been created for. 1. Guitar/Bass 4.

  • Page 15: Led Indicators

    LOAD IMPEDANCE: shows the selected impedance on the Torpedo Reload. This value must match the value of your amplifier’s speaker output. Go to the back of the Torpedo Reload and select either 4, 8 or 16 Ohms. NB: The Torpedo Reload must be turned off when you select the SPEAKER input impedance.
  • Page 16 This first setup is what you will use when you want to connect your instrument to your sound card properly to do some recording and/or to feed an amp-modeler plugin. The Hi-Z (High Impedance) instrument input of the Torpedo Reload will handle your guitar or bass signal so you face no loss of dynamic or frequency: Plug your guitar to the DI input and the DI output to your microphone preamplifier (or channel 1...
  • Page 17 Always match the value of the impedance on the Torpedo Reload (either 4, 8 or 16 Ohms) to your amplifier’s speaker-output impedance. The Torpedo Reload will normally get warm during use, so you must not put it in a closed box or obstruct the air vents.
  • Page 18 Such noise is usually not heard, simply because it is normally covered by the sound coming from the loudspeaker. The sound may be a little different depending on whether a Torpedo Reload is placed between your amplifier and your cabinet or not. That is normal, as the internal speaker impedance of the Torpedo Reload will be slightly different from your cabinet’s.
  • Page 19 With the Torpedo Reload, you can do both of those things: record the dry guitar with the DI, and then use the REPLAY™ to send that guitar track back to an amplifier. We will here present first a silent REPLAY™...
  • Page 20 4.5.2 The full setup: DI + LOADBOX + miking In the previous setup we decided to achieve a silent REPLAY™, but you can perform some traditional miking at the same time, with a controlled sound level thanks to the Torpedo Reload’s power attenuator.
  • Page 21 We shall assume here that the silent REPLAY™ setup is operative. Activate the track-1 monitoring so the guitar’s dry sound will come back to the audio interface into the REPLAY™ input. That way the Torpedo Reload will be able to compare the guitar’s signal with the one sent by the audio interface.

  • Page 22: Specifications

    Configuration Push-Pull - Class AB with KT88 5.2 List of Cabinets (available through Wall of Sound) Designation Inspired by GUITAR cabinets 2Notes CSG Two Notes Custom 1×12” ElectroVoice® EVM12L Angl VintC Engl® 4×12“ Celestion® V30 Blonde 63 Fender® Bassman ’63 Blonde Tolex Piggy Back 2×12”...

  • Page 23: Block Diagram

    2018/06/02 13:16 23/27 Torpedo Reload User's Manual Designation Inspired by Calif Low Mesa/Boogie® 2×10“ Fridge Ampeg® 8×10“ Heaven Bot David Eden® 1×15“ Marco Markbass® 2×10“ 5.3 List of Microphones (available through Wall of Sound) Designation Inspired by Dynamic 57 Dynamic microphone Shure™ SM57 Dynamic 421 Dynamic microphone Sennheiser™...

  • Page 24: Connectors Wiring

    5.5 Connectors wiring 5.6 Possible speaker combinations The Torpedo Reload features two speaker outputs, wired in parallel. There are technically equivalent. The total impedance on these two outputs can't be lower than 4 ohms. In order to respect this rule, you can refer to the following table : http://wiki.two-notes.com/...

  • Page 25: Technical Data

    2018/06/02 13:16 25/27 Torpedo Reload User's Manual Impedance - cabinet 1 Impedance - cabinet 2 Total impedance Result No cabinet IMPOSSIBLE No cabinet IMPOSSIBLE No cabinet IMPOSSIBLE IMPOSSIBLE IMPOSSIBLE 5.7 Technical Data Designation Characteristics Jack 6.35mm (1/4”) unbalanced (TS, Tip/Sleeve)

  • Page 26: Technical Support

    6 Technical support Should you encounter a problem with your product or need help regarding any technical aspects, please note that Two notes Audio Engineering has developed on-line services to provide you with fast and efficient technical support, the Two notes Help Desk.
  • Page 27 2018/06/02 13:16 27/27 Torpedo Reload User's Manual 6.2 E-mail We do not offer technical support via e-mail. Please contact us via the Help Desk at the address above. From: http://wiki.two-notes.com/ - User's manuals Permanent link: http://wiki.two-notes.com/doku.php?id=torpedo_reload:torpedo_reload_user_s_manual Last update: 2018/05/09 12:03...
