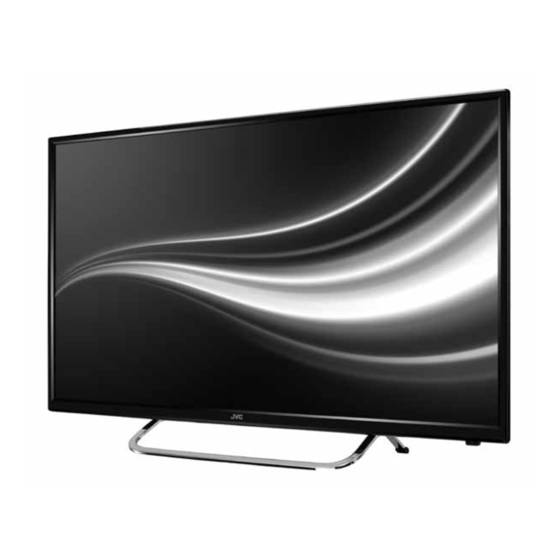

JVC LT-32C350 Quick Start Manual

32 led tv.
Hide thumbs


Advertisement

Quick Start Guide
32" LED TV
LT-32C350 / LT-32C351
Thank you
for purchasing your new JVC TV.
Your new TV incorporates the latest technology to enhance your viewing
experience. We would suggest that you allow about 20 mins for initial setup.
Please follow this guide for a successful first time installation.
The latest eco-friendly power-saving technology will switch off the TV if device
is left on and idle for 4 hours. Please refer to "Auto Standby" under the "Time
Settings" section of the instruction manual for more detail.
For Help and Support Call
UK: 0344 561 1234
Ireland: 1890 818 575
1
Unpacking
Remove all packaging from the TV. Retain the packaging. If you
dispose of it please do so according to any local regulations.
TV
Component Adapter
Cable (YPbPr)
TV Stand Support (L) x 1
Screw A x 4
TV Stand Support (R) x 1
Screw B x 4
TV Stand Base
Instruction Manual
Remote Control
Quick Start Guide
AAA Batteries x 2
3
Installing the Base Stand
1. Lay the TV down on a flat surface with the back side facing up, and ideally at the edge of a table so that the base of the TV slightly overhangs on it. Please
make sure a soft cushioned material (such as a pillow or thick piece of foam) is placed beneath the screen.
2. Fit the stand support onto the stand base. Ensure the stand support marking position is in right position (L = left, R = right). Align with the screw holes
then screw the support by using 4 screws A supplied.
3. Slide the stand assembly under the bottom of the TV. The stand assembly will fit snugly over the screw holes. Then screw the stand to the TV by using 4
screws B supplied.
Screws A
Screws A
x 2
x 2
TV Stand
TV Stand
Support
Support
(Left)
(Right)
(included)
(included)
TV Stand Base Front
(Included)
2
Operating Your Remote Control
1. Press and lift the back
cover to open the
battery compartment of
the remote control.
2. Insert two AAA size
batteries. Close the
battery compartment
cover.
Install the batteries correctly by following the polarity (+ and -) indications in the
battery compartment.
TV Stand
Base Front
Screws B x 4
4
Connecting the Aerial and the Mains Socket
1. Connect one end of the RF coaxial cable to the aerial socket on the
wall and the other end of the cable to the RF (75Ω) socket at the rear
right side of your TV.
2. Connect the mains cable to the mains socket after you have
completed all the connections.
3. At this stage, the TV switches to standby mode. The red LED indicator
will illuminate on the front panel of the TV.
4. In standby mode, press the
button on the right bottom panel
under the TV frame or on the remote control to turn the TV on. The
red LED indicator will turn off.
• Do not connect the TV to the mains supply until you have completed all
the connections.
• If you watch TV using a set-top box, simply connect your TV and set-top
box via a HDMI cable and select HDMI in the Input Source menu.
5
Turning the TV On for the First Time
The first time you turn the TV on, it will go straight into the First Time Installation menu.
First Time Installation
Please ensure aerial is plugged in!
Then press OK button.
1. Please ensure the aerial is plugged in and then press the OK button.
If you are going to watch TV using a set-top box, press the EXIT button on
the remote control then skip this section. Then press the INPUT button on
the remote control to select HDMI mode.
Please select an OSD Language
English
Česky
Suomi
Svenska
Slovak
Dansk
Norsk
OK
2. Press the
buttons to select your desired language to be
displayed on the menu. The default on-screen menu language is set as
English. Press the OK button to confirm.
Mode Select
Home Mode
Shop Mode
OK
3. Press the
buttons to select your desired mode and then press the
OK button. Press the
button to select Yes to confirm or the
to select No to cancel and return to the Mode Select menu.
Home Mode
Intended for use in home environment.
Shop Mode
Intended for use in shop environment.
Well done,
your new TV is now ready to use. You will find that there are many exciting features available. To get to know all these features, please
take some time to read the instruction manual provided with your TV.
If after reading the instruction manual you have additional questions related to the use of your TV please call:
• UK Call Centre on 0344 561 1234. • Ireland Call Center on 1 890 818 575.
To the mains socket
2
COMMON INTERFACE (CI)
USB
HDMI2
HDMI1(ARC)
HEADPHONE
PC AUDIO
5V
500mA
Country
UK
Ireland
Norway
Sweden
Finland
Denmark
France
Spain
Portugal
OK
4. Press the
buttons to select the country where you will
operate the TV. Press the OK button to confirm.
If you select Ireland as the country where you will operate the TV, a pop-
up screen will be display. You will need a 4-digit activation code for Irish
tuning. This code can be found in-store, on the back of your receipt (if
bought in Ireland), or call the customer service team / KNOWHOW.
Channel Tuning
DTV
: 3 Channel(s)
Radio : 0 Channel(s)
Data
: 0 Channel(s)
36%...
668.75MHz
(DTV)
Press [MENU] to skip.
5. DTV Channel tuning will commence. This operation may take a few
minutes. The display will show the progress of the tuning and the
number of channels found.
Target Region Setting (UK only)
During tuning your TV may have received signals from more than one
transmitter. If this has occurred the Target Region Setting screen will be
displayed. This will enable you to select the correct regional transmission
for the local news service that you require.
Press the
buttons to select each option's setting and then press the
OK button to confirm.
Country Code
This will be shown as GBR for the UK.
button
This will show the regional country (e.g. England, Wales,
Primary Region
Scotland, NI).
Secondary
This will allow you to set the region for your local news
Region
service on BBC and ITV (e.g. London, Beds and Cambs etc).
You may receive signals from more than one transmitter
Tertiary Region
within the Secondary Region, (e.g Beds and Cambs may
have Luton or Sandy Heath).
(QSG-LT-32C350_51-150417V1)
OR
RF coaxial cable
(not included)
1
PC IN
