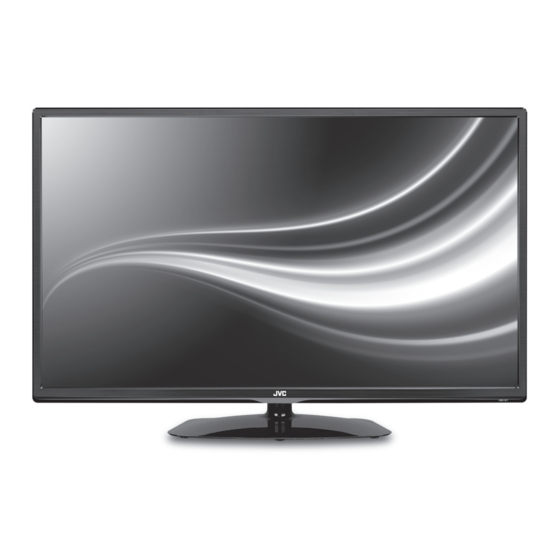

JVC LT-32C340 Quick Start Manual

32” led tv.
Hide thumbs


Advertisement

LT-32C340_QSG_RC140518_Annie.pdf 1 18/5/14 10:24 pm
Quick Start Guide
32" LED TV
LT-32C340
Thank you
for purchasing your new JVC TV.
Your new TV incorporates the latest technology to enhance your viewing
experience. We would suggest that you allow about 20 mins for initial
setup.
Please follow this guide for a successful rst time installation.
The latest eco-friendly power-saving technology will switch o the TV if
device is left on and idle for 4 hours. Please refer to "Auto Standby" under
the "Time Settings" section of the instruction manual for more detail.
1
Unpacking
Remove all packaging from the unit. Retain the packaging.
If you dispose of it please do so according to any local regulations.
TV
Screw A x 3
TV Stand Support
Screw B x 4
TV Base
Instruction Manual
Quick Start Guide
Remote Control /
AAA Batteries x 2
Component Adapter Cable
(YPbPr)
3
Installing the Base Stand
1. Lay the TV down on a at surface with the back side facing up, and ideally at the edge of a table so that the base of the TV slightly overhangs on it. Please
make sure a soft cushioned material (such as a pillow or thick piece of foam) is placed beneath the screen.
2. To install the TV stand, rst attach the stand support to the TV by using 3 screw A. Align with the screw hole then use screws to x the stand support to
the TV.
3. To install the base stand, align the screw holes, then secure with a screw driver (not included) using the 4 screw B provided.
Screw A x 3
2
Operating Your Remote Control
1. Press and lift the back
cover to open the battery
compartment of the
remote control.
2. Insert two AAA size
batteries. Close the
battery compartment
cover.
Install the batteries correctly by following the polarity (+ and -) indications
in the battery compartment.
screw in
TV Front
Base Stand
Front
screw in
Screw B x 4
4
Connecting the Aerial and the Mains Socket
1. Connect one end of the RF coaxial cable to the aerial socket on
the wall and the other end of the cable to the RF (75 ) socket at
the rear right side of your TV.
2. Connect the mains cable to the mains socket after you have
completed all the connections.
3. At this stage, the TV switches to standby mode. The red LED
indicator will illuminate on the front panel of the TV.
3. In standby mode, press the
button on the right side panel of
the TV or on the remote control to turn the TV on. The red LED
indicator will turn blue.
Do not connect the TV to the mains supply until you have
completed all the connections.
5
Turning the TV On for the First Time
The rst time you turn the TV on, it will go straight into the First Time Installation menu.
1. Press the OK button to start First
First Time Installation
Time Installation menu.
Please ensure aerial is plugged in!
Then press OK button.
2. Press the
buttons to
Please select an OSD Language
select your desired language to be
displayed on the menu. The
English
esky
Suomi
default on-screen menu language
Svenska
Slovak
is set as English. Press the OK
Dansk
Norsk
button to con rm.
OK
3. Press the
buttons to select
Mode Select
your desired mode and then press
the OK button. Press the
Home Mode
to select Yes to con rm or the
Shop Mode
button to select No to cancel
and return to the Mode Select
menu.
OK
6
Target Region Setting
During tuning your TV may have received signals
This will be shown as GBR for the UK.
from more than one transmitter. If this has occurred
This will show the regional country
the Target Region Descriptor screen will be displayed.
This will enable you to select the correct regional
(e.g. England, Wales, Scotland, NI).
transmission for the local news service that you
This will allow you to set the region
require.
for your local news service on BBC
Press the
buttons to adjust each option's setting
and ITV (e.g. London, Beds and
and then press the OK button to con rm.
You may receive signals from more than
one transmitter within the Secondary
Region, (e.g Beds and Cambs may have
Well done,
your new TV is now ready to use. You will nd that there are many exciting features available. To get to know all these features, please
take some time to read the instruction manual provided with your TV.
If after reading the instruction manual you have additional questions related to the use of your TV please call:
• UK Call Centre on 0344 561 1234.
• Ireland Call Center on 1 890 818 575.
RF Coxial Cable
(not included)
To mains socket
2
COMMON INTERFACE (CI)
USB
HDMI2
HDMI1(ARC)
PC IN
HEADPHONE
PC AUDIO
5V
500mA
4. Press the
buttons to
Country
select the country where you will
operate the TV. Press the OK
UK
Ireland
Norway
button to con rm.
Sweden
Finland
Denmark
France
Spain
Portugal
OK
If you select Ireland as the country where you will operate the TV, a
pop-up screen will be display. You will need a 4-digit activation code for
Irish tuning. This code can be found in-store, on the back of your receipt
(if bought in Ireland), or call the customer service team / KNOWHOW.
5. DTV Channel tuning will
Channel Tuning
commence. This operation may
take up to 3 minutes. The display
DTV
: 3 Channel(s)
will show the progress of the
Radio : 0 Channel(s)
button
tuning and the number of
Data
: 0 Channel(s)
channels found.
36%
UHF CH
(DTV)
Press [MENU] to skip.
Target Region Setting
Country Code
Primary Region
England
Secondary Region
London
Cambs etc).
Tertiary Region
Luton or Sandy Heath).
(QSG-LT-32C340-140518V2)
1
RF
GBR
