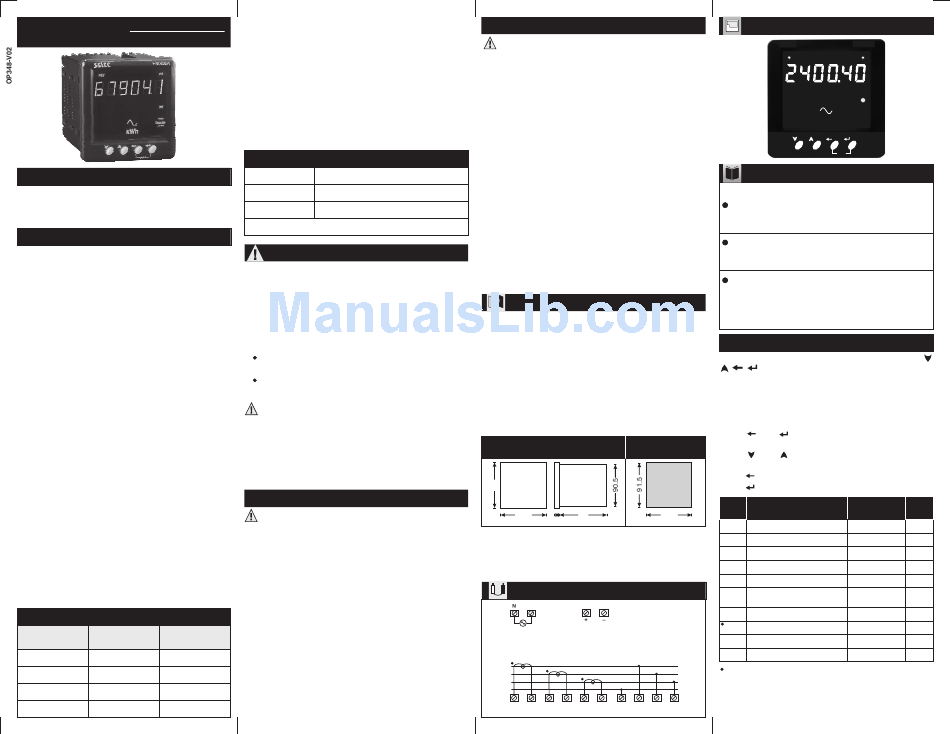

Selec EM306A Operating Instructions

selec
EM306A
Operating Instructions
96 x 96
FEATURES
Ø User programmable CT primary and CT secondary.
Ø Memory retention.
Ø Potential free Pulse output for energy.
SPECIFICATIONS
DISPLAY
6 digit 7 segment LED display, Height 0.5"
WIRING INPUT
3 Ø 4 wire, 3 Ø - 3 wire, 2 Ø - 3 wire and -
1 Ø - 2 wire system
RATED INPUT VOLTAGE
11 to 300V AC (L-N) ; 19 to 519V AC (L-L)
Installation Category
III
FREQUENCY RANGE
45-65 Hz
RATED INPUT CURRENT
Nominal 5A AC (Min-11mA, Max-6A)
CT PRIMARY
1A / 5A to 10,000A (Programmable for any Value)
Note : 1A to 10,000A if CT secondary is 1 else CT
primary is 5A to 10,000A
CT SECONDARY
1A or 5A (programmable)
BURDEN
0.5 VA@5A per phase
POWER CONSUMPTION
Less than 8VA
MEASUREMENT
kWh (resettable)
ACCURACY
Class 1
OUTPUT
Pulse Output : Voltage range: External 4V DC max. 2
Current capacity : 100mA max
Pulse Width : 100 ms ± 50 ms.
INT : 1000 pulses / kWh
RESOLUTION :
Pulse output
CT Ratio kWh
( kWh / pulse )
<15
0.01 0.01
<150
0.1 0.1
<1500
1 1
£ 2000
10 10
ENVIRONMENTAL CONDITIONS
- Indoor use
- Altitude of up to 2000 meters
- Pollution degree
II
Temperature : Operating : -10 C to 55 C ° °
Storage : -20 C to 75 C ° °
Humidity : Up to 85% non-condensing
MOUNTING
Panel mounting
WEIGHT
340gms
ORDER CODE INFORMATION
Supply
Product
230V AC, 20%, 50 / 60Hz
EM306A ±
110V AC, 20%, 50 / 60Hz
EM306A-110V ±
Installation Category III
SAFETY PRECAUTIONS
All safety related codifications, symbols and
instructions that appear in this operating manual or on
the equipment must be strictly followed to ensure the
safety of the operating personnel as well as the
instrument.
If the equipment is not used in a manner specified by
the manufacturer it might impair the protection provided
by the equipment.
Do not use the equipment if there is any mechanical
damage.
Ensure that the equipment is supplied with correct
voltage.
CAUTION :
1. Read complete instructions prior to installation and
operation of the unit.
2. Risk of electric shock.
3. The equipment in its installed state must not come in
close proximity to any heating sources, oils, steam, caustic
vapors or other unwanted process by products.
WIRING GUIDELINES
WARNING :
1. To prevent the risk of electric shock, power supply to the
equipment must be kept OFF while doing the wiring
arrangement.
2. Wiring shall be done strictly according to the terminal
layout. Confirm that all connections are correct.
3. Use lugged terminals.
4. To reduce electromagnetic interference use of wires with
adequate ratings and twists of the same in equal size shall
be made with shortest connections.
5. Layout of connecting cables shall be away from any
internal EMI source.
6. Cable used for connection to power source, must have a
2 2
cross section of 0.5mm to 2.5mm
( 20 to 14AWG ; 75 C(min)).
Thesewires shall have current carryingcapacityof 6A.
7. Copper cable should be used
(Stranded or Single core cable).
8. Before attempting work on device, ensure absence of
voltages using appropriate voltage detection device.
INSTALLATION GUIDELINES
CAUTION :
1. This equipment, being built-in-type, normally becomes a
part of main control panel and in such case the terminals
do not remain accessible to the end user after installation
and internal wiring.
2. Conductors must not come in contact with the internal
circuitry of the equipment or else it may lead to a safety
hazard that may in turn endanger life or cause electrical
shock to the operator.
3. Circuit breaker or mains switch must be installed
between power source and supply terminals to facilitate
power 'ON' or 'OFF' function. However this switch or
breaker must be installed in a convenient position
normally accessible to the operator.
4. Before disconnecting the secondary of the external
current transformer from the equipment, make sure that
the current transformer is short circuited to avoid risk of
electrical shock and injury.
5. The equipment shall not be installed in environmental
conditions other than those mentioned in this manual.
6 . The equipment does not have a built-in-type fuse.
Installation of external fuse of rating 275V AC /
electrical circuitry / battery is highly recommended.
MECHANICAL INSTALLATION
For installing the meter
1. Prepare the panel cutout with proper dimensions s shown
below.
2 . Push the meter into the panel cutout. Secure the
its place by fitting the clamp on the rear side. Fit clamps on
both sides in diagonally opposite location for optimum
fitting.
3. For proper sealing, tighten the screws evenly with required
torque.
Terminal screw tightening torque :
0.68 N-m to 0.79 N-m ( 6.018 In-Lb to 6.992 In-Lb )
Screw clamp tightening torque : 0.1N-m (0.885 Lb-inch)
OUTLINE
Dimensions (in mm)
99
99 50
5
MAINTENANCE
1. The equipment should be cleaned regularly to avoid
blockage of ventilating parts.
2. Clean the equipment with a clean dry or damp cloth.
Do not use any cleaning agent other than water.
TERMINAL CONNECTIONS
L
PULSE
OUTPUT
CONNECTIONS DIAGRAM
0
L1
L2
L3
N
N
S1 S2 S1 S2 S1 S2
I 1 I 2 I 3

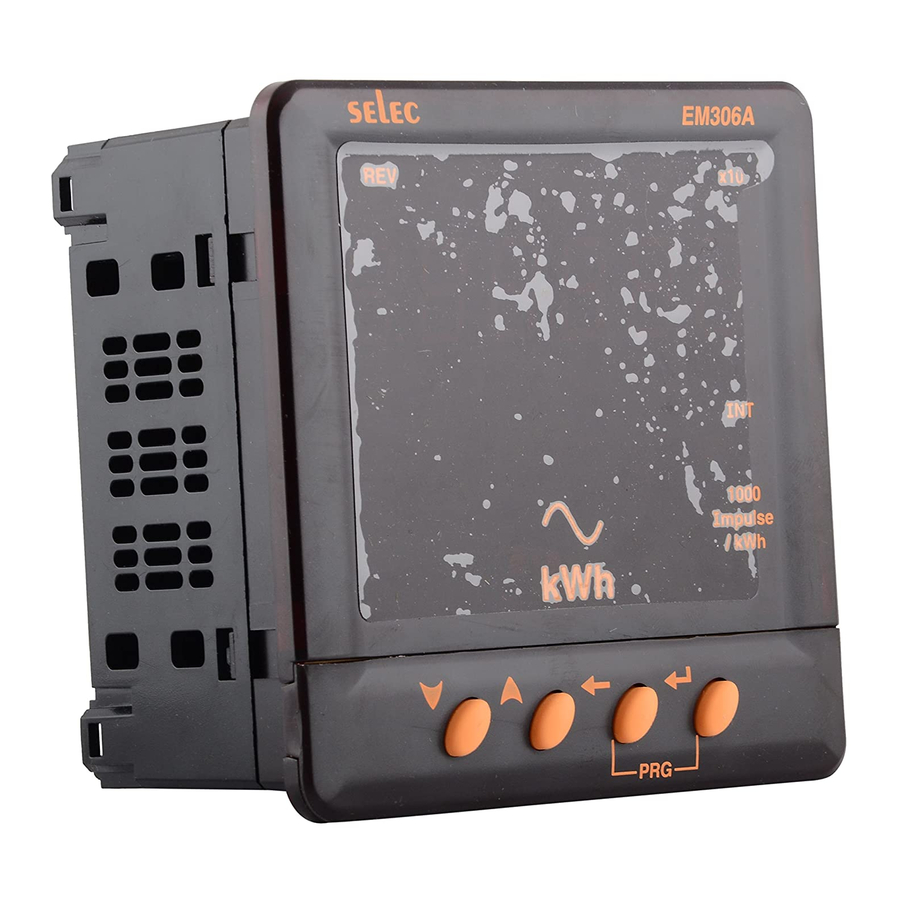

FRONT PANEL DESCRIPTION
selec
REV
USER GUIDE
LED INDICATIONS
INT : The INT LED provides optical output for calibration
verification as well as visual indication of energy
integration. The pulse rate is 1000 Pulses/kWh.
X10 : X10 LED ON when the resolution is 10. It is the
indication of count reading which must be multiplied by
10 to get actual kWh consumed.
0.5 Amp for
REV : REV LED gives the indication of reversal of two
or more CT connections
in any or all phases.
indicate the correct energy consumption. The CT shoul
be connected to the meter with correct polarities
a
CONFIGURATION
meter in
There are 4 dedicated keys with symbols marked as ,
, , . Use these 4 keys to enter into configuration
menu / change setting.
Note : The settings should be done by a professional
after going through this users manual and after having
understood the application situation.
For the configuration setting mode :
Use ( ) and ( ) keys for 3sec. to enter or exit from
!
PANEL CUTOUT
configuration menu.
Dimensions (in mm)
Use ( ) and ( ) keys for increasing and decreasing
!
parameters value respectively.
Use ( ) key to go back to previous page.
!
Use ( ) key to save the setting and move on next page.
!
Config
Function
page.
91.5
Password
Change Password
1
1.1 New Password
2 Network Selection
3 CT Secondary
CT Primary
4
Reset Energy
5
5.1 Password
Reset Active Energy
5.01
Factory Default
5.02
L
For resetting energy parameters user will be prompted for
O
password. If correct password is entered, the user will be
A
able to reset all energy parameters. This password will be
D
value which will be greater than the configuration password
V1 V2 V3 by 1.
Doc. name : OP INST EM306A
EM306A
x10
INT
1000
Impulse
/ kWh
kWh
PRG
or presence of negative power
In such cases meter may not
d
.
,
Range or Factory
Selection Setting
0000 to 9998 10
No / Yes
No
0000 to 9998 10
3P3W / 3P4W 3P4W
1A or 5A 5
1A, 5A to
5
10,000A (10.0kA)
No / Yes No
0001 To 9999 11
No / Yes No
No / Yes No
OP348-V02A(Page 1 of 2)
