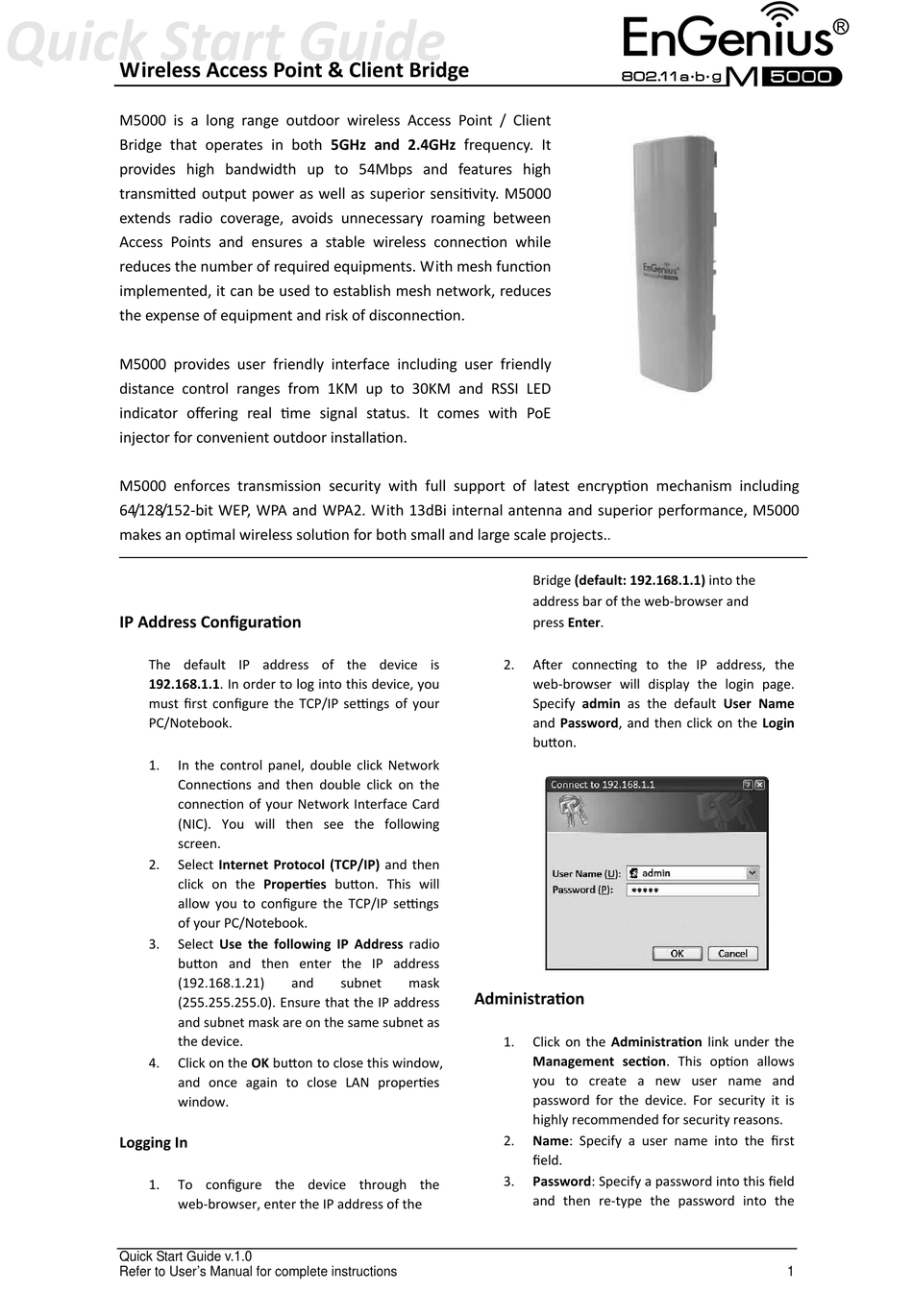

M5000 is a long range outdoor wireless Access Point / Client
Bridge that operates in both 5GHz and 2.4GHz frequency. It
provides high bandwidth up to 54Mbps and features high
transmitted output power as well as superior sensitivity. M5000
extends radio coverage, avoids unnecessary roaming between
Access Points and ensures a stable wireless connection while
reduces the number of required equipments. With mesh function
implemented, it can be used to establish mesh network, reduces
the expense of equipment and risk of disconnection.
M5000 provides user friendly interface including user friendly
distance control ranges from 1KM up to 30KM and RSSI LED
indicator offering real time signal status. It comes with PoE
injector for convenient outdoor installation.
M5000 enforces transmission security with full support of latest encryption mechanism including
64/128/152-bit WEP, WPA and WPA2. With 13dBi internal antenna and superior performance, M5000
makes an optimal wireless solution for both small and large scale projects.
IP Address Configuration
The default IP address of the device is
192.168.1.1. In order to log into this device, you
must first configure the TCP/IP settings of your
PC/Notebook.
1.
2.
3.
4.
Logging In
1.
Q i u k c S a t t r
R f e r e o t U
In the control panel, double click Network
Connections and then double click on the
connection of your Network Interface Card
(NIC). You will then see the following
screen.
Select Internet Protocol (TCP/IP) and then
click on the Properties button. This will
allow you to configure the TCP/IP settings
of your PC/Notebook.
Select Use the following IP Address radio
button and then enter the IP address
(192.168.1.21) and subnet
(255.255.255.0). Ensure that the IP address
and subnet mask are on the same subnet as
the device.
Click on the OK button to close this window,
and once again to close LAN properties
window.
To configure the device through the
web-browser, enter the IP address of the
G u d i e v 1 . 0 .
s r e s ' M a n u a f l r o c o m p e l e t n i t s
2.
mask
Administration
1.
2.
3.
u r t c o i n s
.
Bridge (default: 192.168.1.1) into the
address bar of the web-browser and
press Enter.
After connecting to the IP address, the
web-browser will display the login page.
Specify admin as the default User Name
and Password, and then click on the Login
button.
Click on the Administration link under the
Management section. This option allows
you to create a new user name and
password for the device. For security it is
highly recommended for security reasons.
Name: Specify a user name into the first
field.
Password: Specify a password into this field
and then re-type the password into the
1
