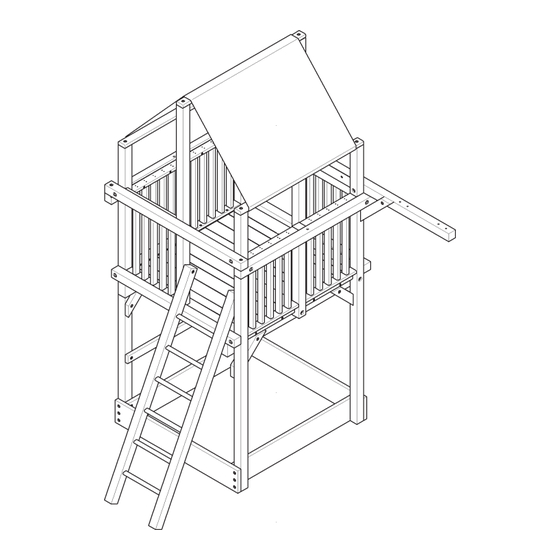

Leopard's Lair 5' & 6'
Assembly Instructions
817 Maxwell Avenue • Evansville, IN 47711 • 1-800-GO-SWING • www.escaladesports.com • ©2015 Escalade Sports
PG-MA-0026-03

Advertisement

loading
Need help?

Need help?

Do you have a question about the Leopards Lair 5' and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ChildLife Leopards Lair 5'

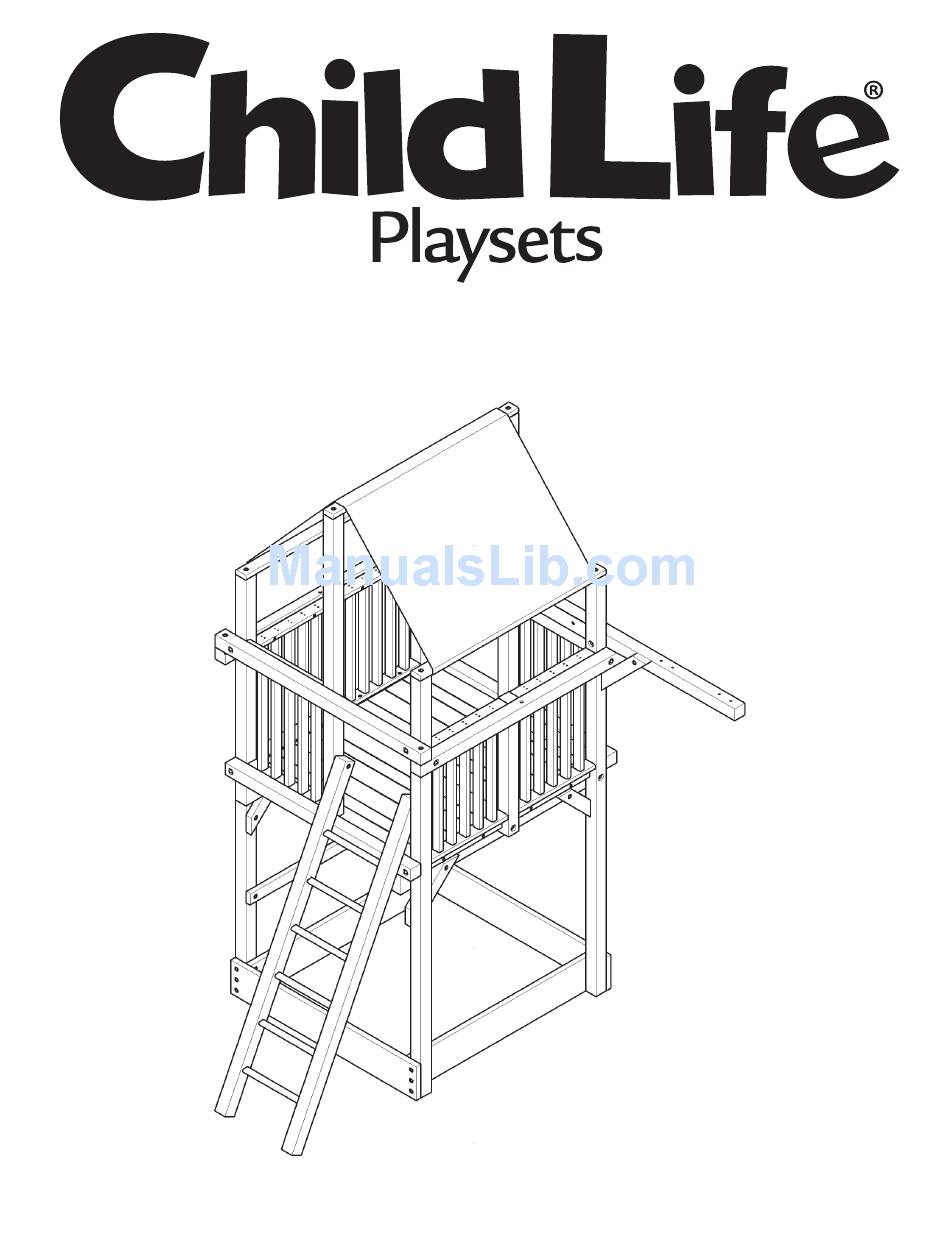

  • Page 1 Leopard’s Lair 5’ & 6’ Assembly Instructions 817 Maxwell Avenue • Evansville, IN 47711 • 1-800-GO-SWING • www.escaladesports.com • ©2015 Escalade Sports PG-MA-0026-03...
  • Page 2 I N T R O D U C T I O N Welcome to our family of ready-to-build backyard play equipment. WOODPLAY playsets are designed with ease of assembly in mind and we provide these step-by-step installation instructions. After reading the information below, locate your structure site and carefully unpack parts. As you unpack your playset, notice the part identification tags on each part and become familiar with each part before beginning assembly.
  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Adults Must: • Limit climbing and swinging heights to each child’s • Do not allow children to play wearing helmets. ability. • Remember that children are inventive. When they • Verify that suspended climbing ropes are secured at develop games that are unsafe, be alert and change both ends.
  • Page 4: Hardware Identification

    HARDWARE IDENTIFICATION MB1 (1/2"-13 X 6" Machine Bolt) HLS6 (3/8" X 8" Lag Screw) HLS5 (3/8" X 5-1/2" Lag Screw) HLS4 (3/8" X 3" Lag Screw) FW4 (1/2" Standard Flat Washer) TN1 (3/8” T-NUT) SH1(3/8” Shoulder Bolt) HLS3 (3/8" X 2-1/2" Lag Screw) FW2 (3/8"...
  • Page 5: Tools Needed

    TOOLS NEEDED Tools Needed: Hammer Carpenter’s Level Tape Measure 3/8" Drive Ratchet 7/16" Socket (for 1/4" Lag Screws) 9/16" Socket (for 3/8" Lag Screws) 3/4" Socket (for 1/2" Machine Bolts & Nuts) Drill & 3/8" Bit A Friend or Neighbor SWING BEAM HARDWARE NOTE: All items shown may not be required or are optional for your playset.
  • Page 6: Parts List

    PARTS LIST NOTE:Some options (eg. Overhead Climber) are shown in addendum sheets. ITEM DESCRIPTION PART NUMBER QUANTITY 60 5/8" Sandbox Side PG-210-061-SBS 113 1/2" 4X4 CORNER POST PG-4X4-114-CP 125 1/2" Corner Post PG-4X4-126-CP-B Deck Support PG-4X6-067-DS 53 5/8" Deck - 30 1/8 Wide RW-DEK-054-030-W 67 3/8"...
  • Page 7 5 Foot Step Ladder DESCRIPTION QUANTITY ITEM PART NUMBER 89 7/8" Step Ladder Rail Left PG-4X4-090-STP-LRL 89 7/8" Step Ladder Rail Right PG-4X4-090-STP-LRR 21" Ladder Step PG-2X6-021-STP 6 Foot Step Ladder ITEM DESCRIPTION QUANTITY PART NUMBER 102" Step Ladder Rail Left PG-4X4-102-STP-LRL 102"...
  • Page 8 PARTS FOR DECK: PARTS FOR SIDE PANEL: PART NUMBER DESCRIPTION QTY. ITEM PART NUMBER DESCRIPTION QTY. PG-2X4-025-PBT 25" Panel Top PG-2X6-054-DEK 53 5/8" Deck / Picnic Tbl Board PG-2X4-025-PBB-A 25" Panel Bottom Drilled PG-2X4-054-DEK 53 5/8" Deck / Picnic Tbl Board PG-2X3-030-PR 2 X 3 X 30-1/4 Panel Rung PG-2X6-030-BB...
  • Page 9 STEP 1: ASSEMBLE SIDE PANEL PARTS NEEDED: HARDWARE NEEDED: (25" Panel Top) (1/4" Flat Washer) (25" Panel Bottom Drilled) HLS1 (1/4 X 3" Hex Lag Screw) (2 X 3 X 30-1/4 Panel Rung) (20) (#8x2 1/2 Ph Flat Hd Wdscr) FHS1 (25"...
  • Page 10 STEP 2: ASSEMBLE PARTS A, B, C, E, & J PARTS NEEDED: HARDWARE NEEDED: (2) A (Sandbox Side) (12) HLS3 (3/8" x 2-1/2" Lag Screw) (4) B (Corner Post) (14) FW2 (3/8" Standard Flat Washer) (2) C (Deck Support) (10) MB1 (1/2" x 6" Machine Bolt) (2) E (Safety Rail Top Side) (20) FW4 (1/2"...
  • Page 11 STEP 3: ASSEMBLE PARTS A, F, K, P, R, & STEP 1 ASSEMBLIES PARTS NEEDED: HARDWARE NEEDED: (2) A (Sandbox Side) (12) HLS3 (3/8" x 2-1/2" Lag Screw) (2) F (Deck Frame) (2) HLS4 (3/8" x 3" Lag Screw) (1) K (Safety Rail Top) (4) HLS5 (3/8"...
  • Page 12 STEP 4: ASSEMBLE PARTS H, L, & N PARTS NEEDED: HARDWARE NEEDED: (1) H (Horizontal Roof Support) (10) HLS4 (3/8" x 3" Lag Screw) (2) L (20" Left 45° Brace) (10) FW2 (3/8" Standard Flat Washer) (2) N (20" Right 45° Brace) Attach part L 4"...
  • Page 13 NOTE: If your Model did not come with assembled Decks follow these instructions. If your model has pre-assembled Decks continue to the next page. PG-HW-S009 #8X2 1/2 PH FLAT HD WDSCR PG-2X4-028-BB 27 1/2" Deck Backboard TOP VIEW PG-2X6-030-BB 30" Deck Backboard PG-2X6-054-DEK 53 5/8"...
  • Page 14 STEP 5: ASSEMBLE PARTS D & G PARTS NEEDED: HARDWARE NEEDED: (2) D (Deck Panel) (8) HLS1 (1/4" x 2-1/2" Lag Screw) (2) G (Vertical Roof Support) (8) FW1 (1/4" Standard Flat Washer) (4) HLS5 (3/8" x 5-1/2" Lag Screw) (4) FW2 (3/8"...
  • Page 15 STEP 6: ASSEMBLE 90” STEP LADDER & ROCK WALL (FOR 5’ DECK ONLY) HARDWARE NEEDED PARTS NEEDED: PARTS NEEDED: HARDWARE NEEDED: (48) FHS2 (#10x2-1/2 Ph Flat Hd Wdscr) (2) CW-R 89 7/8” Climbing Wall Rail (24) 89 7/8" Step Ladder Rail Left (1/4"...
  • Page 16 STEP 6: ASSEMBLE 102” STEP LADDER & ROCK WALL (FOR 6’ DECK ONLY) HARDWARE NEEDED PARTS NEEDED: PARTS NEEDED: HARDWARE NEEDED: (56) FHS2 (#10x2-1/2 Ph Flat Hd Wdscr) (2) CW-R 102” Climbing Wall Rail (28) 102" Step Ladder Rail Left (1/4"...
  • Page 17 STEP 7: INSTALL LADDER AND ROCK WALL PARTS NEEDED: HARDWARE NEEDED: (1) (Ladder Assembly) (2) HLS5 (3/8" x 5-1/2" Lag Screw) (1) FIL (Ladder Spacer Assembly) (2) FW2 (3/8" Standard Flat Washer) (if needed) LADDER SPACER ATTACHMENT HARDWARE (2) HLS5 (3/8" x 5-1/2" Lag Screw) (2) FW2 (3/8"...
  • Page 18 STEP 8: INSTALL SIDE PANEL ASSEMBLY PARTS NEEDED: HARDWARE NEEDED: (6) (Side Panel) (2) HLS1 per Panel (1/4" x 2-1/2" Lag Screw) (2) HLS2 per Panel (1/4" x 4-1/2" Lag Screw) (4) FW1 per Panel (1/4" Standard Flat Washer) Install the Side Panels from Step 1 in all empty openings as shown using HLS1 lag screws and FW1 standard flat washers at the bottom of the panel and HLS2 lag screws and FW1 standard flat washers at the top of the panel.
  • Page 19 STEP 9: ASSEMBLE PARTS H & S PARTS NEEDED: HARDWARE NEEDED: (3) H (Horizontal Roof Support) (6) HLS4 (3/8 x 3" Lag Screw) (1) S (Vinyl Roof) (6) FW2 (3/8 Standard Flat Washer) (8) Button Snaps (Enclosed in bag with Vinyl Roof) Attach two parts H Horizontal Roof Supports to the top of parts B Corner Posts as shown using HLS4 lag screws and FW2...
  • Page 20 Consumer Information Sheet for Playground Surfacing Materials The U.S. Consumer Product Safety Commission maintained at depths of 6", 9", and 12". However, it (CPSC) estimates that about 100,000 playground should be recognized that all injuries due to falls equipment-related injuries resulting from falls to the cannot be prevented no matter what surfacing mate- ground surface are treated annually in the U.S.
  • Page 21 THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR USE. CHILDLIFE PLAYSETS DOES NOT ASSUME, OR AUTHORIZE ANY PERSON TO ASSUME FOR US, ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF OUR PRODUCTS.

This manual is also suitable for:

Leopards lair 6'
