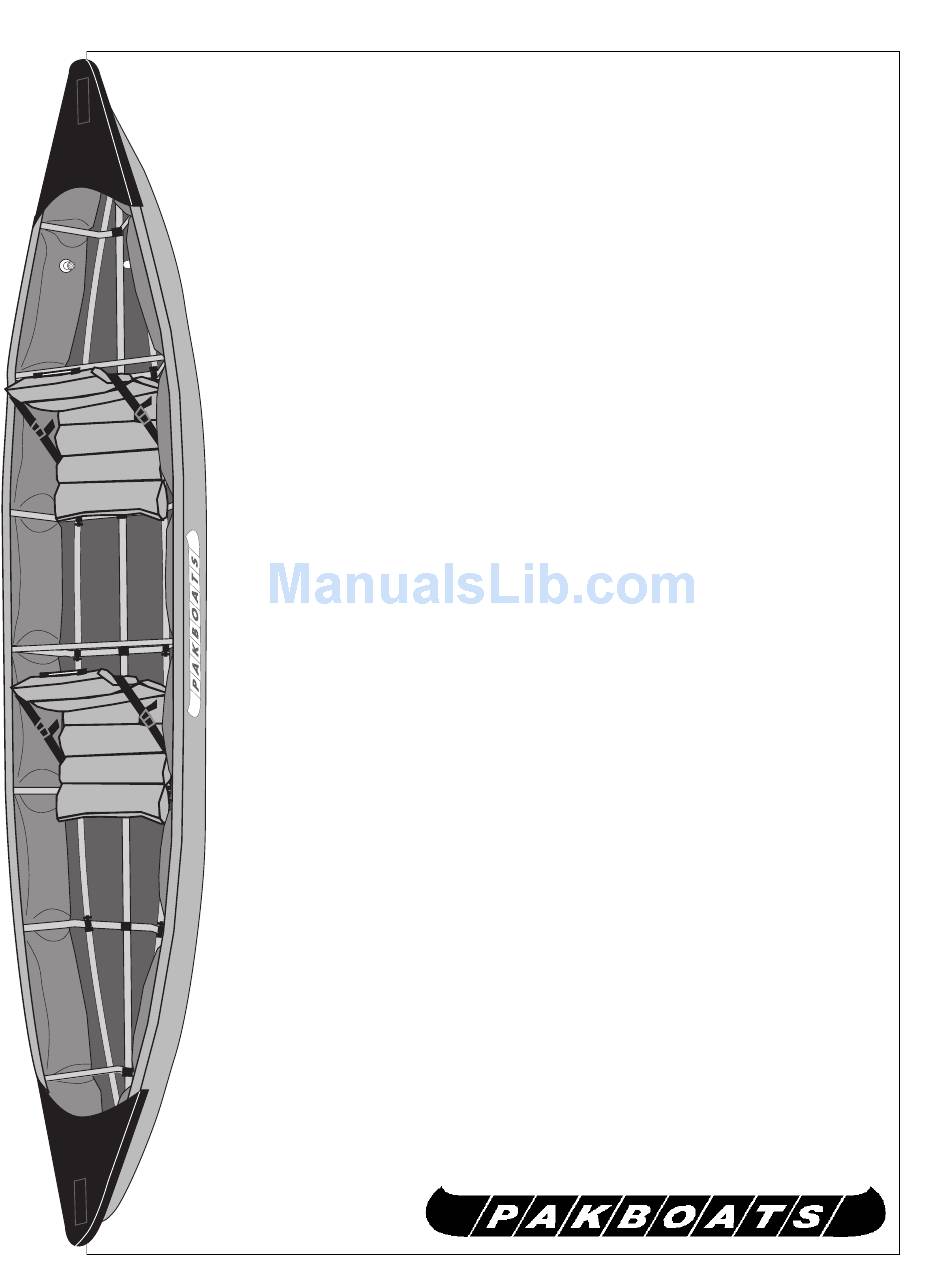

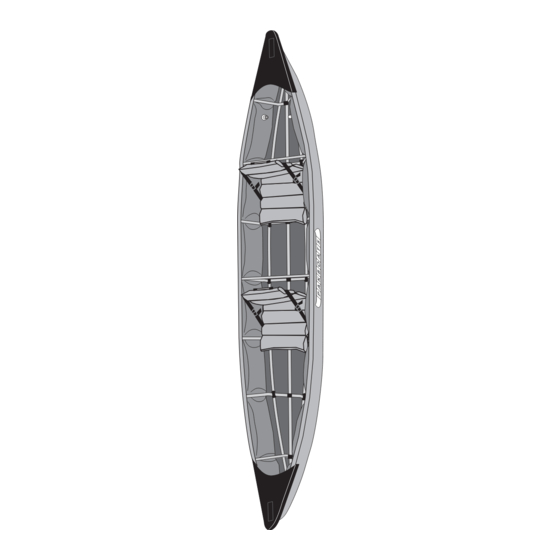

Puffin II
Assembly
and
User Information
ScanSport, Inc. / Pakboats
Post Office Box 700 May Street
Enfield, New Hampshire 03748 USA
Phone: (888) 863-9500 (toll free)
From outside the US: +1 (603) 632-9500
Fax: (603) 632-5611
Email: info@pakboats.com
www.pakboats.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Pakboats Puffin II
Summary of Contents for Pakboats Puffin II
- Page 1 Puffin II Assembly User Information ScanSport, Inc. / Pakboats Post Office Box 700 May Street Enfield, New Hampshire 03748 USA Phone: (888) 863-9500 (toll free) From outside the US: +1 (603) 632-9500 Fax: (603) 632-5611 Email: info@pakboats.com www.pakboats.com...
- Page 2 Cross Ribs (C2) (C1) End Cap End Cap Air Valve Boat Skin Stem Stem Gunwales Gunwale Gunwale Terminator Terminator Latch Clip Latch Rods Keel Seats Figure 1, Parts Inflated Gunwale Latch Rod Air Valve Air Tube in sleeve) (C2) (C1) Cross Ribs: End Cap Stem...
- Page 3 The shortest rod is the keel. The curved parts with metal Mount the keel and stems. forks are stems. Place the keel in the PUFFIN II. Insert the narrow end of one stem into the keel rod end. Lift the gunwales and clip the gunwale terminator onto the top of the stem.
- Page 4 Cross Rib (A) is the widest one with a thwart. Mount Cross Rib (A). Get into the PUFFIN II and position yourself so the open side of the center-most latches face you, about a foot away.
- Page 5 The end caps are attached by means of Velcro fasteners. HAPPY PADDLING! Configuring Puffin II for solo seating. The above procedure configures the boat as a double. For solo seating, move the wide cross rib with a thwart (A), back one position, and move cross rib (C1, the smaller one with a thwart, to the bow end as indicated below.
- Page 6 Start at the center. 10. Roll up the hull with the rods inside Lay out the PUFFIN II hull with the bottom flat on the ground and the sides folded in towards the center. Place all the folded longitudinal rods on end of the hull, opposite to the air valves..
-
Page 7: General Information
Storage Your PUFFIN II is equally happy stored assembled or packed in the bag. Salt Water Following exposure to salt water, rinse the PUFFIN II in fresh water if you can. This will help preserve the PUFFIN II’s appearance. Repairs HULL - If you need to repair a puncture or abrasion of the hull, use a patch of the same material and the repair kit adhesive.
