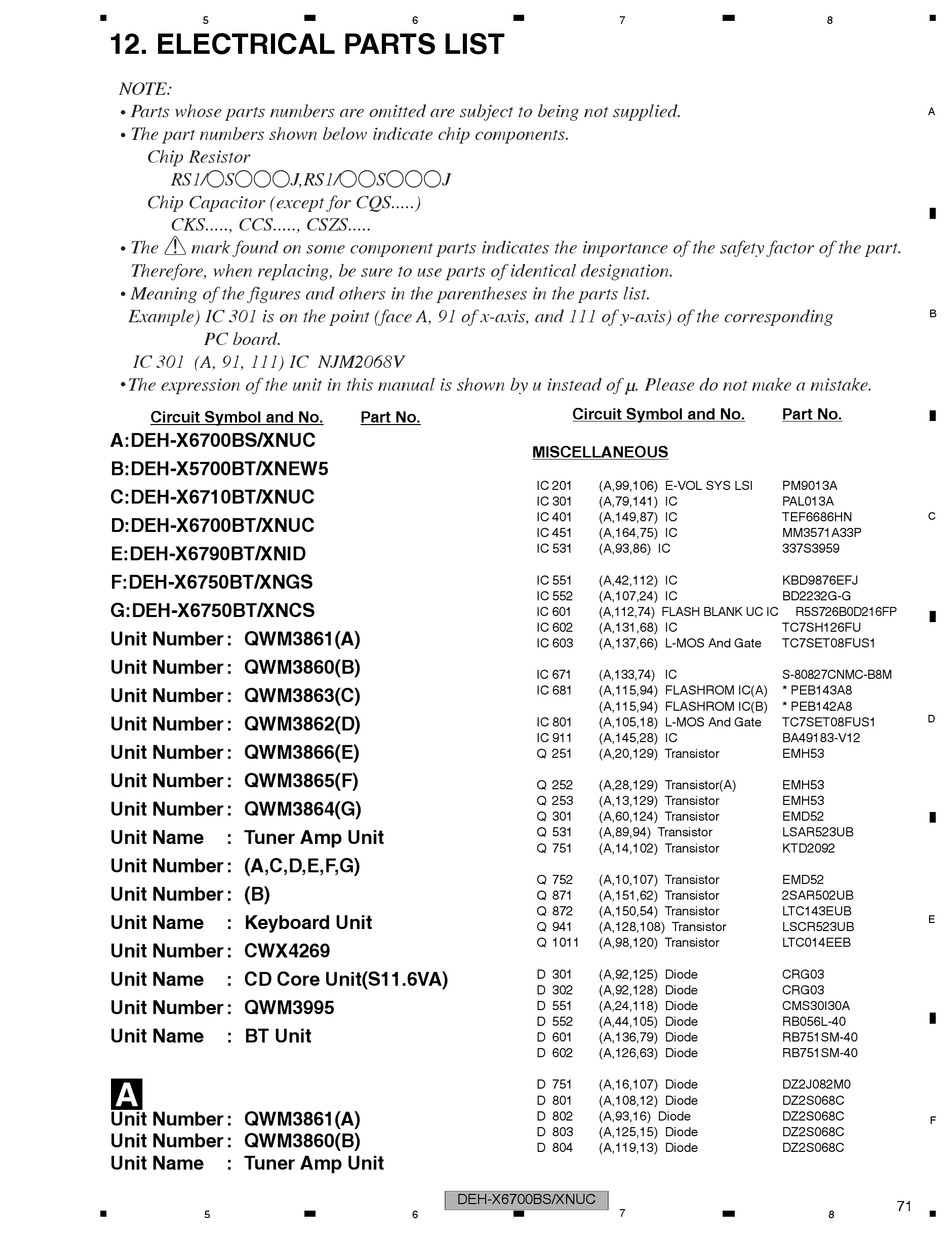

12. ELECTRICAL PARTS LIST

NOTE:
Parts whose parts numbers are omitted are subject to being not supplied.
The part numbers shown below indicate chip components.
Chip Resistor
RS1/_S___J,RS1/__S___J
Chip Capacitor (except for CQS.....)
CKS....., CCS....., CSZS.....
The > mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Meaning of the figures and others in the parentheses in the parts list.
Example) IC 301 is on the point (face A, 91 of x-axis, and 111 of y-axis) of the corresponding
PC board.
IC 301 (A, 91, 111) IC NJM2068V
The expression of the unit in this manual is shown by u instead of . Please do not make a mistake.
Circuit Symbol and No.
A:DEH-X6700BS/XNUC
B:DEH-X5700BT/XNEW5
C:DEH-X6710BT/XNUC
D:DEH-X6700BT/XNUC
E:DEH-X6790BT/XNID
F:DEH-X6750BT/XNGS
G:DEH-X6750BT/XNCS
Unit Number : QWM3861(A)
Unit Number : QWM3860(B)
Unit Number : QWM3863(C)
Unit Number : QWM3862(D)
Unit Number : QWM3866(E)
Unit Number : QWM3865(F)
Unit Number : QWM3864(G)
Unit Name : Tuner Amp Unit
Unit Number : (A,C,D,E,F,G)
Unit Number : (B)
Unit Name : Keyboard Unit
Unit Number : CWX4269
Unit Name : CD Core Unit(S11.6VA)
Unit Number : QWM3995
Unit Name : BT Unit
A
Unit Number : QWM3861(A)
Unit Number : QWM3860(B)
Unit Name : Tuner Amp Unit
5
6
Part No.
MISCELLANEOUS
IC 201
IC 301
IC 401
IC 451
IC 531
IC 551
IC 552
IC 601
IC 602
IC 603
IC 671
IC 681
IC 801
IC 911
Q 251
Q 252
Q 253
Q 301
Q 531
Q 751
Q 752
Q 871
Q 872
Q 941
Q 1011
D 301
D 302
D 551
D 552
D 601
D 602
D 751
D 801
D 802
D 803
D 804
DEH-X6700BS/XNUC
6
7
Circuit Symbol and No.
(A,99,106) E-VOL SYS LSI
(A,79,141) IC
(A,149,87) IC
(A,164,75) IC
(A,93,86) IC
(A,42,112) IC
(A,107,24) IC
(A,112,74) FLASH BLANK UC IC
(A,131,68) IC
(A,137,66) L-MOS And Gate
(A,133,74) IC
(A,115,94) FLASHROM IC(A)
(A,115,94) FLASHROM IC(B)
(A,105,18) L-MOS And Gate
(A,145,28) IC
(A,20,129) Transistor
(A,28,129) Transistor(A)
(A,13,129) Transistor
(A,60,124) Transistor
(A,89,94) Transistor
(A,14,102) Transistor
(A,10,107) Transistor
(A,151,62) Transistor
(A,150,54) Transistor
(A,128,108) Transistor
(A,98,120) Transistor
(A,92,125) Diode
(A,92,128) Diode
(A,24,118) Diode
(A,44,105) Diode
(A,136,79) Diode
(A,126,63) Diode
(A,16,107) Diode
(A,108,12) Diode
(A,93,16) Diode
(A,125,15) Diode
(A,119,13) Diode
7
8
A
B
Part No.
PM9013A
PAL013A
TEF6686HN C
MM3571A33P
337S3959
KBD9876EFJ
BD2232G-G
R5S726B0D216FP
TC7SH126FU
TC7SET08FUS1
S-80827CNMC-B8M
* PEB143A8
* PEB142A8
D
TC7SET08FUS1
BA49183-V12
EMH53
EMH53
EMH53
EMD52
LSAR523UB
KTD2092
EMD52
2SAR502UB
LTC143EUB
E
LSCR523UB
LTC014EEB
CRG03
CRG03
CMS30I30A
RB056L-40
RB751SM-40
RB751SM-40
DZ2J082M0
DZ2S068C
DZ2S068C
F
DZ2S068C
DZ2S068C
