CARVIN PRO-MIX 7 Operating Manual

Promix7-manual.qxd 11/2/04 4:31 PM Page 2
This symbol is intended to This symbol is intended
C A U T I O N
alert the user to the pres- to alert the user to the
ence of uninsulated "dan- presence of important
gerous voltage" within the RISK OF ELECTRIC SHOCK operating and mainte-
DO NOT OPEN
product's enclosure that nance (servicing)
may be of sufficient magnitude to constitute instructions in the literature accompany-
a risk of electric shock to persons. ing the appliance.
IMPORTANT! FOR YOUR PROTECTION, PLEASE READ THE FOLLOWING:
WATER AND MOISTURE: Appliance should not be used near water (near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should be taken
so that objects do not fall and liquids are not spilled into the enclosure through openings.
POWER SOURCES: The appliance should be connected to a power supply only of the type
described in the operating instructions or as marked on the appliance.
GROUNDING OR POLARIZATION: Precautions should be taken so that the grounding or polar-
ization means of an appliance is not defeated.
POWER CORD PROTECTION: Power supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them, paying particular attention to
cords at plugs, convenience receptacles, and the point where they exit from the appliance.
SERVICING: The user should not attempt to service the appliance beyond that described in the
operating instructions. All other servicing should be referred to qualified service personnel.
FUSING: If your unit is equipped with a fuse receptacle, replace only with the same type fuse.
Refer to replacement text on the unit for correct fuse type.

SAFETY INSTRUCTIONS (EUROPEAN)

The conductors in the AC power cord are colored in accordance with the following code.
GREEN & YELLOW—Earth BLUE—Neutral BROWN—Live
U.K. MAIN PLUG WARNING: A molded main plug that has been cut off from the cord is
unsafe. NEVER UNDER ANY CIRCUMSTANCES SHOULD YOU INSERT A DAM-
AGED OR CUT MAIN PLUG INTO A POWER SOCKET.

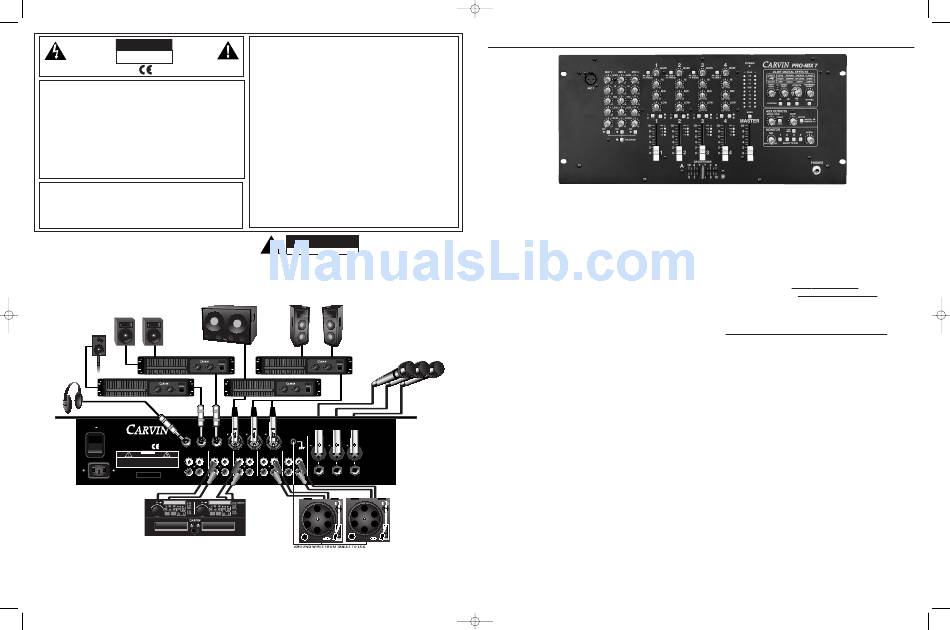

PRO-MIX 7 DJ MIXER SETUP

11 10 9
13 12 8 7
15 6
17 5
19 4
CLIP SIGNAL 22 3 CLIP
30 2 SIGNAL
50 1
CHANNEL ONE 0 dB
DCM2000
11 10 9 11 10 9 1000 Watt Power Amp
13 12 8 7 13 12 8 7
15 6 15 6
17 5 17 5
19 4 19 4
CLIP 22 3 CLIP 22 3 PROTECT
SIGNAL 30 2 SIGNAL 30 2 POWER
50 1 50 1
0 dB 0 dB
CHANNEL ONE CHANNEL TWO
INTERNAL FUSE
90 - 250 VAC 50/60Hz 30VA
ON
MONITOR MONITOR
(PHONES) (MONO)
1-800-854-2235
www.carvin.com
MADE IN THE
US A
CAUTION MASTER REC
RISK OF ELECTRIC SHOCK
OUT OUT
DO NOT OPEN
CAUTION - TO PREVENT ELECTRICAL SHOCK DO NOT DEFEAT THE SAFETY
GROUND ON THE POWER CORD - DO NOT REMOVE COVER .
WARNING - TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE TO RAIN
OR MOISTURE. REFER SERVICING TO QUALIFED PERSONNEL.
S/N XXXXXXX
OPEN/CLOSE 8%,12%,16% OPEN/CLOSE
CD1 -
RELAY
REV FWD REV
TRACK SKIP
0
-SEAMLESS LOOP-
DUAL CD PLAYER +
JOG SHUTTLE PLAY/PAUSE PITCH CONTROL JOG
CD2020
OPEN/CLOSE
CD 1
DUAL CD PLAYER POWER

LIMITED WARRANTY

Your Carvin product is guaranteed against failure for 1 YEAR unless otherwise stated.
Carvin will service and supply all parts at no charge to the customer providing the unit is
under warranty. Shipping costs are the responsibility of the customer. CARVIN DOES NOT
PAY FOR PARTS OR SERVICING OTHER THAN OUR OWN. A COPY OF THE ORIGINAL
INVOICE IS REQUIRED TO VERIFY YOUR WARRANTY. Carvin assumes no responsibility
for horn drivers or speakers damaged by this unit. This warranty does not cover, and no
liability is assumed, for damage due to: natural disasters, accidents, abuse, loss of parts,
lack of reasonable care, incorrect use, or failure to follow instructions. This warranty is in
lieu of all other warranties, expressed or implied. No representative or person is authorized
to represent or assume for Carvin any liability in connection with the sale or servicing of
Carvin products. CARVIN SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES.
When RETURNING merchandise to the factory, you may call for a return authorization
number. Describe in writing each problem. If your unit is out of warranty, you will be
charged the current FLAT RATE for parts and labor to bring your unit up to factory spec-
ifications.

MAINTAINING YOUR EQUIPMENT

Avoid spilling liquids or allowing any other foreign matter inside the unit. The panel of
your unit can be wiped from time to time with a dry or slightly damp cloth in order to
remove dust and bring back the new look. As with all pro gear, avoid prolonged use in
caustic environments (salt air). When used in such an environment, be sure the mixer
is adequately protected by a cover.
REFER SERVICING TO QUALIFIED SERVICE
CAUTION
PERSONNEL! THIS UNIT CONTAINS HIGH
VOLTAGE INSIDE!
RISK OF ELECTRIC SHOCK
DCM2000 DCM2000
11 10 9 1000 Watt Power Amp 11 10 9 11 10 9 1000 Watt Power Amp
13 12 8 7 13 12 8 7 13 12 8 7
15 6 15 6 15 6
17 5 17 5 17 5
19 4 19 4 19 4
22 3 PROTECT CLIP SIGNAL 22 3 CLIP 22 3 PROTECT
30 2 POWER 30 2 SIGNAL 30 2 POWER
50 0 dB 1 50 1 50 0 dB 1
CHANNEL TWO CHANNEL ONE 0 dB CHANNEL TWO
DCM2000
11 10 9 11 10 9 1000 Watt Power Amp
13 12 8 7 13 12 8 7
15 6 15 6
17 5 17 5
19 4 19 4
CLIP 22 3 CLIP 22 3 PROTECT
SIGNAL 30 2 SIGNAL 30 2 POWER
50 1 50 1
0 dB 0 dB 0 dB
CHANNEL ONE CHANNEL TWO
MASTER OUTPUTS
PRO-MIX 7 PRO-MIX 7
MONO/SUB RIGHT LEFT
ZONE
(MONO)
MIC 3 MIC 2 MIC 1
4 3 2 2 1
LINE 4 LINE 5 LINE PHONO LINE PHONO LINE PHONO
L L L L L
R R R R R
8%,12%,16%
CD1 -
CD2020
RELAY
FWD
TRACK SKIP
0
-SEAMLESS LOOP-
+
SHUTTLE PLAY/PAUSE PITCH CONTROL
TURNTABLE SYSTEM DIRECT DRIVE TURNTABLE SYSTEM
-
CD 2
0
+
33 45

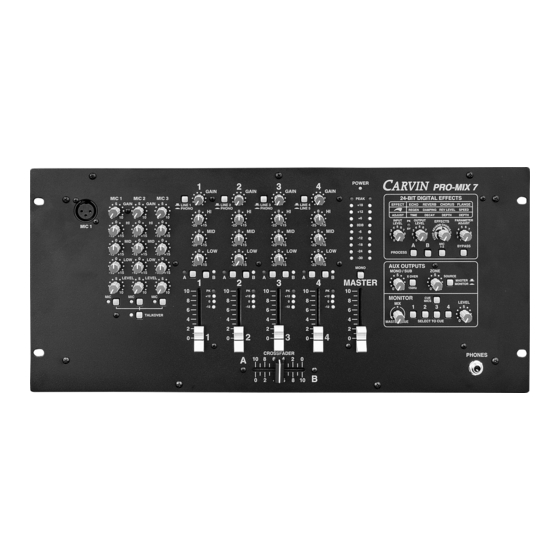

CARVIN ENGINEERING DATA
The PRO-MIX-7 is designed for the DJ who requires professional mixing with the flexibility of
7 channels plus sound effects. High-end electronics feature ultra low noise circuitry and SMT
construction giving a crystal clear transparent sound that rivals our larger consoles offering a
notch of performance above the typical DJ mixer.

FEATURES:

• 4 stereo channels with transform switches for any combination of 3 vinyl and 5 CD/line
inputs
• 3 Mic channels for vocals and other sources with TALKOVER feature
• Active LO, MID and HI EQs on each channel are set at 80, 750 and 11.5 k Hz
• 25 dB EQ cuts on the 4 main channels
• Input GAIN controls on each channel prevent overloading
• 4 segment metering for each main channel, plus 10 segment MASTER metering
• Each of the four main channels are assignable to either side of the A/B CROSSFADER
• 24-BIT effects with Reverb, Echo, Chorus and Flange are assignable to either side of the
A/B CROSSFADER or 3 MIC channels, with bypass switch. All parameters are easily
changed for rate, damping, decay, depth, time and regeneration.
AUX OUTPUTS include a separate ZONE for MASTER or MONITOR mix, and a MONO
output which can be switched into a SUBWOOFER output utilizing an internal 150 Hz, 18 dB
per octave crossover. Both outputs have separate level controls.
The MONITOR control center takes it's input from the MONITOR MIX control for critical listen-
ing of the MASTER output and CUE monitoring from of any of the 4 MAIN or 3 MIC channels.
The MONITOR LEVEL control drives the powerful built in headphone amp, delivering high vol-
ume levels to all 3 headphone outputs.
SUPERB SOUND is derived from the extremely low distortion, high "Headroom" design.
A state-of-the art, low noise, balanced XLR mic preamp for each channel features a common
mode rejection of better than 78 dB, which means that any possible noise that may come over
your cables is virtually eliminated. Even the balanced XLR output connectors guard your sys-
tem from cable noise. Distortion is nearly non-existent with THD below .01%, which guaran-
tees the purity of your sound. Hear the difference - your sound will not seem "sterile" or
"processed". It will be dynamically open and transparent just like it was meant to be!
EASY TO USE Everything is logically laid out making the PRO-MIX 7 simple to use, which
helps to eliminate operator error.
24-Bit STEREO DSP EFFECTS The effects processor with 256 EFFECTS, include
reverbs, choruses, flanging and echoes, with parameters fully adjustable for; damping, decay,
depth, speed, regeneration and time.
ACTIVE 3 BAND CHANNEL EQ Provides easy adjustment for the tone you want. The
LO frequency controls starts at 20 Hz and continues through 80 Hz for adding solid non-flab-
by bass. A simple adjustment with the MID band, gives you the best sound for vocals or gui-
tar in the very important 750Hz frequency range. The 11.5k Hz HI treble control adds sparkle
to your top-end without adding harshness. Both the LOW and HI are "shelving", which means
they are effective from 20Hz up to 20k Hz.
DIRECT DRIVE
- ENGINEERED TO LAST Every PRO-MIX 7 mixer incorporates a rugged reinforced steel
0
chassis. Hidden deep in the heart of these mixers is the "SMT" Surface Mount Technology
+
33 45
construction that utilizes surface mounted components to prevent parts from shaking or
vibrating loose. Sealed controls and switches guard against the outside elements while heavy-
duty connectors provide a positive connection to your cables. Fire retardant FR-4 military
spec. circuit cards feature double-sided copper construction to guard against noise and radio
frequencies (RF). Precision 1% tolerances guarantee that your settings will be accurate every
time. The PRO-MIX 7 is professionally made in the USA for years of service!
76-27001 021004
OPERATING MANUAL
PRO-MIX 7 DJ MIXER
RECEIVING INSPECTION—read before getting started
INSPECT YOUR UNIT FOR ANY DAMAGE which may have occurred during shipping.
If any damage is found, please notify the shipping company and CARVIN immediately.
SAVE THE CARTON & ALL PACKING MATERIALS. In the event you have to re-ship your
unit, always use the original carton and packing material. This will provide the best pos-
sible protection during shipment. CARVIN and the shipping company are not liable for
any damage caused by improper packing.
SAVE YOUR INVOICE. It will be required for warranty service if needed in the future.
SHIPMENT SHORTAGE. If you find items missing, they may have been shipped sep-
arately. Please allow several days for the rest of your order to arrive before inquiring.
RECORD THE SERIAL NUMBER on the enclosed warranty card for your records. Keep
your portion of the card and return the portion with your name and comments to us.
USA customers register online at: www.carvin.com/registration
All other countries register online at: www.carvinworld.com/registration

PRO-MIX 7 SPECIFICATIONS:

FREQUENCY RESPONSE: Mic or Line Inputs: 20 to 20k Hz,
OUTPUT: +26dB XLR bal, +20dB RCA unbal
TOTAL HARMONIC DISTORTION: Less than .01% at nominal levels
EQUIVALENT INPUT NOISE: 150 ohm source: -117dBu
INPUTS: 3 equalized RIAA PHONO RCA inputs,
with ground terminal
5 LINE RCA inputs
3 MIC inputs: balanced XLR and 1/4" jacks
MASTER: balanced XLR, 2 pair RCA jacks
MONO/SUB: balanced XLR
ZONE: balanced 1/4" jack
PHONES: 1/4" jack, stereo
MONITOR: 1/4" jacks, 1 stereo, 1 mono
OUTPUT NOISE: -90dBu Master Out
CROSSTALK: Adjacent ch's: -60db at 1KHz
COMMON MODE REJECTION: -78db at 1KHz
CHANNEL EQ 3-BAND ACTIVE: LOW: 80Hz
MID: 750Hz
HI: 11.5KHz
POWER REQ.: 90 to 250 VAC 50-60Hz, internal switching
power supply
SIZE AND WEIGHT: 19" x 8.5" x 3.5" D. (5U rack mount) Wt. 15 lbs.
