CARVIN STUDIO MATE SM162 Operating Manual

This symbol is intended to This symbol is
CAUTION
alert the user to the pres- intended to alert the
ence of uninsulated "dan- user to the presence of
gerous voltage" within the RISK OF ELECTRIC SHOCK important operating
DO NOT OPEN
product's enclosure that may be of suf- and maintenance (servicing) instruc-
ficient magnitude to constitute a risk of tions in the literature accompanying
electric shock to persons. the appliance.
IMPORTANT! FOR YOUR PROTECTION, PLEASE READ THE FOLLOWING:
WATER AND MOISTURE: Appliance should not be used near water (near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet basement or near a swimming pool, etc). Care should be taken
so that objects do not fall and liquids are not spilled into the enclosure through openings.
POWER SOURCES: The appliance should be connected to a power supply only of the type described
in the operating instructions or as marked on the appliance.
GROUNDING OR POLARIZATION: Precautions should be taken so that the grounding or polar-
ization means of an appliance is not defeated.
POWER CORD PROTECTION: Power supply cords should be routed so that they are not likely
to be walked on or pinched by items placed upon or against them, paying particular attention
to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
SERVICING: The user should not attempt to service the appliance beyond that described in the
operating instructions. All other servicing should be referred to qualified service personnel.
FUSING: If your unit is equipped with a fuse receptacle, replace only with the same type fuse.
Refer to replacement text on the unit for correct fuse type.
SAFETY INSTRUCTIONS (EUROPEAN)
The conductors in the AC power cord are colored in accordance with the following code.
GREEN & YELLOW—Earth BLUE—Neutral BROWN—Live
U.K. MAIN PLUG WARNING: A molded main plug that has been cut off from the cord is
unsafe. NEVER UNDER ANY CIRCUMSTANCES SHOULD YOU INSERT A DAMAGED
OR CUT MAIN PLUG INTO A POWER SOCKET.
REPLACEMENT PARTS LIST
(for circuit cards)
Ref. Des. DESCRIPTION Carvin P/N C535 0.0047µF 100 Volt 46-47212
C536 330PF 1000 Volt 45-33113
A1 Op Amp NE5532 60-55320
C537 0.0047µF 100 Volt 46-47212
A2-A11 Op Amp MC4558 60-45580
C538 39PF 500 Volt 45-39052
A12 Op Amp NE5532 60-55320
C539 39PF 500 Volt 45-39052
A13-A15 Op Amp MC4558 60-45580
C540, C541 10µF 50V 47-10051
A201 Op Amp NE5532 60-55320
D1-D3 Green small 60-75330
A304-A306 Op Amp MC4558 60-45580
D4 Yellow small 60-24251
A404-A406 Op Amp MC4558 60-45580
D5, D6 Red small 60-75320
A504-A506 Op Amp MC4558 60-45580
D7-D10 Green small 60-75330
B1- B3 Jumper .35" 50-00035
D11 1N1914 HI SPD 61-19140
C1,C2 82PF 500 Volt 45-82052
D12-D14 Green small 60-75330
C3-C5 10µF 50V 47-10051
D15 Yellow small 60-24251
C6 47µF 63 Volt 47-47061
D16, D17 Red small 60-75320
C7 39PF 500V 45-39052
D18-D21 Green small 60-75330
C8 0.047µF 100V 46-47312
D22 1N1914 HI SPD 61-19140
C9 330PF 1000 Volt 45-33113
D23, D24 Red small 60-75320
C10 0.0047µF 100 Volt 46-47212
D25-D28 1N4003 60-40030
C11 10µF 50V 47-10051
D29, D30 1N1914 HI SPD 61-19140
C12 39PF 500 Volt 45-39052
F1 Fuse Clips 23-03529
C13 47µF 63 Volt 47-47061
J1 7 Pin Plastic 21-06457
C14, C15 1000µF 25V 47-10225
J2 XLRF Neutrik 21-40000
C16-C22 10µF 50V 47-10051
J3-J11 3 Pin Plastic 21-06453
C23 0.047µF 100V 46-47312
J12 Phone Jack x4 21-40022
C24 0.0022µF 100V 46-22212
J13 7 Pin Plastic 21-06457
C25, C26 1000µF 25V 47-10225
J101, J102 3 Pin Plastic 21-06453
C27-C33 10µF 50V 47-10051
J201 7 Pin Plastic 21-06457
C34 330PF 1000 Volt 45-33113
J202 XLRF Neutrik 21-40000
C35 0.0047µF 100 Volt 46-47212
J203 3 Pin Plastic 21-06453
C36 330PF 1000 Volt 45-33113
J301, J302 3 Pin Plastic 21-06453
C37 0.0047µF 100 Volt 46-47212
J401, J402 3 Pin Plastic 21-06453
C38, C39 39PF 500 Volt 45-39052
J501, J502 3 Pin Plastic 21-06453
C40-C42 10µF 50V 47-10051
P1 B50K D Vert 9mm 71-09053
C43 0.0022µF 100V 46-22212
P2-P4 B50K-C D Vert 9mm 71-09052
C44 0.047µF 100V 46-47312
P5, P6 B50K D Vert 9mm 71-09053
C45 0.047µF 100V 46-47312
P7 B5K-C D Vrt 9m 35 71-09050
C60 10µF 50V 47-10051
P8 B50K D Vrt 12m 35 71-13056
C61 39PF 500 Volt 45-39052
P9-P11 B100Kx2 D Vrt 12m 71-13064
C62 10µF 50V 47-10051
P12, P13 B50K D Vrt 9m 35 71-09053
C63 39PF 500 Volt 45-39052
P14, P15 B100Kx2 D Vrt 12m 71-13064
C64 10µF 50V 47-10051
P101-P103 B50Kx2-C D Vrt 12 71-13062
C65 39PF 500 Volt 45-39052
P104, P105 B50K D Vrt 9m 35 71-09053
C67 10µF 50V 47-10051
P106 B5K-C D Vrt 9m 35 71-09050
C68 39PF 500 Volt 45-39052
P107 B100Kx2 D Vrt 12m 71-13064
C69 10µF 50V 47-10051
P201 B50K D Vrt 9m 35 71-09053
C70 39PF 500 Volt 45-39052
P202-P204 B50K-C D Vert 9mm 71-09052
C71 10µF 50V 47-10051
P205,P206 B50K D Vrt 9m 35 71-09053
C72 39PF 500 Volt 45-39052
P207 B5K-C D Vrt 9m 35 71-09050
C74 39PF 500 Volt 45-39052
P208 B50K D Vrt 9m 35 71-09053
C77 39PF 500 Volt 45-39052
P301-P303 B50Kx2-C D Vrt 12 71-13062
C80 39PF 500 Volt 45-39052
P304, P305 B50K D Vrt 9m 35 71-09053
C83 39PF 500 Volt 45-39052
P306 B5K-C D Vrt 9m 35 71-09050
C90-C93 10µF 50V 47-10051
P307 B100Kx2 D Vrt 12m 71-13064
C104 0.047µF 100V 46-47312
P401-P403 B50Kx2-C D Vrt 12 71-13062
C105 0.047µF 100V 46-47312
P404, P405 B50K D Vrt 9m 35 71-09053
C201 82PF 500 Volt 45-82052
P406 B5K-C D Vrt 9m 35 71-09050
C202 82PF 500 Volt 45-82052
P407 B100Kx2 D Vrt 12m 71-13064
C203-C205 10µF 50V 47-10051
P501-P503 B50Kx2-C D Vrt 12 71-13062
C206 47µF 63 Volt 47-47061
P504, P505 B50K D Vrt 9m 35 71-09053
C207 39PF 500V 45-39052
P506 B5K-C D Vrt 9m 35 71-09050
C209 330PF 1000 Volt 45-33113
P507 B100Kx2 D Vrt 12m 71-13064
C210 0.0047µF 100 Volt 46-47212
Q1 7815 +15V 60-78150
C211 10µF 50V 47-10051
Q2 7915 -15V 60-79150
C212 39PF 500 Volt 45-39052
R1, R2 5.62K 0.25W 50-56231
C213 47µF 63 Volt 47-47061
R3 10K 0.25W 50-10045
C330-C333 10µF 50V 47-10051
R4, R5 2.2K 0.25W 50-22035
C334 330PF 1000 Volt 45-33113
R6, R7 4.7K 50-47035
C335 0.0047µF 100 Volt 46-47212
R8 1.5K 50-15035
C336 330PF 1000 Volt 45-33113
R9 47K 50-47045
C337 0.0047µF 100 Volt 46-47212
R10 4.7K 0.25W 50-47035
C338 39PF 500 Volt 45-39052
R11 100K 0.25W 50-10055
C339 39PF 500 Volt 45-39052
R12 150K 0.25W 50-15055
C340, C341 10µF 50V 47-10051
R13 4.7K 0.25W 50-47035
C430-C433 10µF 50V 47-10051
R14 470Ω 0.25W 50-47025
C434 330PF 1000 Volt 45-33113
R15 10K 0.25W 50-10045
C435 0.0047µF 100 Volt 46-47212
R16 4.7K 0.25W 50-47035
C436 330PF 1000 Volt 45-33113
R17 22K 50-22045
C437 0.0047µF 100 Volt 46-47212
R18 4.7K 0.25W 50-47035
C438 39PF 500 Volt 45-39052
R19-R21 22K 50-22045
C439 39PF 500 Volt 45-39052
R22 Jumper .35" 50-00035
C440, C441 10µF 50V 47-10051
R25, R26 22K 50-22045
C530-C533 10µF 50V 47-10051
R27, R28 10K 50-10045
C534 330PF 1000 Volt 45-33113
R30, R31 Jumper .35" 50-00035
LIMITED WARRANTY
Your Carvin product is guaranteed against failure for ONE YEAR unless otherwise stated. Carvin will
service and supply all parts at no charge to the customer providing the unit is under warranty. Shipping
costs are the responsibility of the customer. CARVIN DOES NOT PAY FOR PARTS OR SERVICING OTHER
THAN OUR OWN. A COPY OF THE ORIGINAL INVOICE IS REQUIRED TO VERIFY YOUR WARRANTY.
Carvin assumes no responsibility for horn drivers or speakers damaged by this unit. This warranty
does not cover, and no liability is assumed, for damage due to: natural disasters, accidents, abuse,
loss of parts, lack of reasonable care, incorrect use, or failure to follow instructions. This warranty
is in lieu of all other warranties, expressed or implied. No representative or person is authorized to
represent or assume for Carvin any liability in connection with the sale or servicing of Carvin prod-
ucts. CARVIN SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
When RETURNING merchandise to the factory, you may call for a return authorization number. Describe
in writing each problem. If your unit is out of warranty, you will be charged the current FLAT RATE for
parts and labor to bring your unit up to factory specifications.
HELP SECTION
1) MIXER WILL NOT TURN ON
Check the power to the amp. Check for tripped circuit breakers, unplugged extension cords or power-
strip switches that may be turned off. Check the fuse. If a dark brownish color or no wire can be
seen within the glass tube, then replace. The mixer may be perfectly fine but occasionally a fuse
may blow because of high AC voltage surges. After the fuse has been replaced with the proper
Slow Blow value and if the fuse fails again, the mixer will require servicing.
2) KEEP YOUR MIXER LOOKING NEW
Use caution to avoid spilling liquids or allowing any other foreign matter inside the unit. The top
of the mixer can be wiped from time to time with a dry or slightly damp cloth in order to remove
dust and bring back the new look. A suggestion is to cover the mixer when not in use. This can
be done with a cloth or a small towel to reduce the amount of dust collection on the mixer. Well
cared for equipment is usually friendlier equipment in the long run.
REFER SERVICING TO QUALIFIED SERVICE
CAUTION
PERSONNEL! THIS UNIT CONTAINS HIGH
RISK OF ELECTRIC SHOCK
VOLTAGE INSIDE!
R32 4.7K 0.25W 50-47035 R107 150K 0.25W 50-15055
R33, R34 Jumper .35" 50-00035 R108 3.3K 50-33035
R35 4.7K 0.25W 50-47035 R109 8.2K 0.25W 50-82035
R36 100K 0.25W 50-10055 R110 3.3K 50-33035
R37 150K 0.25W 50-15055 R111 8.2K 0.25W 50-82035
R38 4.7K 0.25W 50-47035 R112 15K 50-15045
R39 100K 0.25W 50-10055 R113 36K 50-36045
R40 150K 0.25W 50-15055 R115 15K 50-15045
R41 4.7K 0.25W 50-47035 R116 36K 50-36045
R42 10K 0.25W 50-10045 R201, R202 5.62K 0.25W 50-56231
R43 4.7K 0.25W 50-47035 R203 10K 0.25W 50-10045
R44 10K 0.25W 50-10045 R204, R205 2.2K 0.25W 50-22035
R45 4.7K 0.25W 50-47035 R206, R207 4.7K 50-47035
R46, R47 22K 50-22045 R208 1.5K 50-15035
R48, R49 10K 0.25W 50-10045 R209 47K 50-47045
R50, R51 22K 50-22045 R210 4.7K 0.25W 50-47035
R53, R54 100K 50-10055 R211 100K 0.25W 50-10055
R60 22K 0.25W 50-22045 R212 150K 0.25W 50-15055
R61 10K 50-10045 R213 4.7K 0.25W 50-47035
R62 22K 0.25W 50-22045 R214 470Ω 0.25W 50-47025
R63 10K 50-10045 R215 10K 0.25W 50-10045
R64 22K 0.25W 50-22045 R216 4.7K 0.25W 50-47035
R65 10K 50-10045 R217 10K 0.25W 50-10045
R67 22K 0.25W 50-22045 R218 4.7K 0.25W 50-47035
R68 10K 50-10045 R219 10K 0.25W 50-10045
R69 22K 0.25W 50-22045 R220, R221 4.7K 0.25W 50-47035
R70 10K 50-10045 R330, R331 Jumper .35" 50-00035
R71 22K 0.25W 50-22045 R332 4.7K 0.25W 50-47035
R72 10K 50-10045 R333, R334 Jumper .35" 50-00035
R74, R76 470Ω 0.25W 50-47025 R335 4.7K 0.25W 50-47035
R80 22K 0.25W 50-22045 R336 100K 0.25W 50-10055
R81 10K 0.25W 50-10045 R337 150K 0.25W 50-15055
R83 22K 0.25W 50-22045 R338 4.7K 0.25W 50-47035
R84 10K 0.25W 50-10045 R339 100K 0.25W 50-10055
R86-R89 470Ω 50-47025 R340 150K 0.25W 50-15055
R90 10K 50-10045 R341 4.7K 0.25W 50-47035
R91 22K 0.25W 50-22045 R342 10K 0.25W 50-10045
R92 100Ω 0.25W 50-10025 R343 4.7K 0.25W 50-47035
R93 10K 50-10045 R344 10K 0.25W 50-10045
R94 22K 0.25W 50-22045 R345 4.7K 0.25W 50-47035
R95 100Ω 0.25W 50-10025 R346, R347 22K 50-22045
R100 2.2K 0.25W 50-22035 R348, R349 10K 0.25W 50-10045
R101, R102 Jumper .35" 50-00035 R350, R351 22K 50-22045
R105, R106 2.2K 0.25W 50-22035 R353, R354 100K 50-10055
2
3
Color Knob Code
last 2 numbers
20
Blue
25
Red
Grey 28
# DESCRIPTION CARVIN #
1. PCB Assembly 80-16204
2. Front Panel Metal 10-16204
3. Knob 10 D shaft (COLOR) 07-120(--)
4. AC Receptical 21-02804
5. Power Switch 25-62116
6. Internal Fuse (see fuse chart) 80-02105
CARVIN ENGINEERING DATA

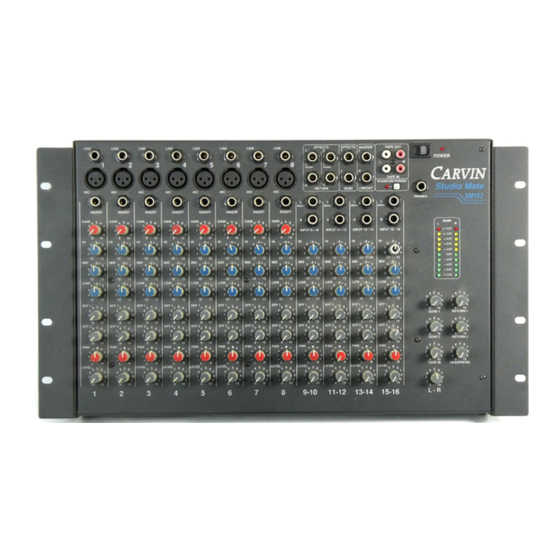

Congratulations on your purchase of the SM162 16 channel stereo mixer. Your new Studio
Mate mixer demonstrates CARVIN's commitment to the pro audio world by offering sophis-
ticated signal mixing and processing in a compact easy to use console. The Studio Mate is
designed to be a powerful tool for the home studio where limited space and high perfor-
mance are the main requirements. Its features make it ideal for mixing to cassette, DAT or
for hard disk recording with a computer. The Studio Mate is also rugged enough to handle
many live applications. The SM162's high quality construction will provide years of trou-
ble-free performance and will reproduce your music flawlessly. Enjoy your new SM162!
R430, R431 Jumper .35" 50-00035
16 CHANNEL OVERVIEW
R432 4.7K 0.25W 50-47035
There are 8 MIC/LINE input channels with XLR and 1/4" LINE inputs and PATCH insert jacks.
R433, R434 Jumper .35" 50-00035
R435 4.7K 0.25W 50-47035
There are also 4 STEREO input channels (8 mono) with two 1/4" LINE inputs each. The XLR
R436 100K 0.25W 50-10055
R437 150K 0.25W 50-15055
channels feature input GAIN controls and provide Phantom power for condenser mics. There
R438 4.7K 0.25W 50-47035
R439 100K 0.25W 50-10055 are 3 bands of EQ and 2 post fader effect SENDS on each channel. The master section fea-
R440 150K 0.25W 50-15055
tures 2 SENDS and 2 stereo RETURNS along with RCA tape IN's and OUTs that can be used
R441 4.7K 0.25W 50-47035
R442 10K 0.25W 50-10045
as a separate stereo channel with it's own level control. A master LEFT/RIGHT level control
R443 4.7K 0.25W 50-47035
R444 10K 0.25W 50-10045
also feeds a 1/4" stereo headphone jack with its own level control. The stereo LED VU meter-
R445 4.7K 0.25W 50-47035
R446, R447 22K 50-22045
ing gives you bright,clear visibility of your output levels.
R448, R449 10K 0.25W 50-10045
R450, R451 22K 50-22045
"SHELVING" EQ WITH ACTIVE TONE CIRCUITS
R453, R454 100K 50-10055
R530, R531 Jumper .35" 50-00035
The SM162 incorporates 3 bands of EQ's per channel that offer smooth tone curves so
R532 4.7K 0.25W 50-47035
R533, R534 Jumper .35" 50-00035
your adjustments will sound natural and yet be effective. Depth is added to your bass because
R535 4.7K 0.25W 50-47035
R536 100K 0.25W 50-10055 80 Hz is chosen for the LOW frequency EQ controls instead of the usual 100 Hz. The HI EQ
R537 150K 0.25W 50-15055
controls are set at 11.5k Hz which is slightly higher than the normal 10k Hz treble controls
R538 4.7K 0.25W 50-47035
R539 100K 0.25W 50-10055
giving more top-end clarity. These are "shelving" type controls which cover the complete
R540 150K 0.25W 50-15055
R541 4.7K 0.25W 50-47035
frequency band from 80 Hz down to 20 Hz and from 11.5K Hz up to 20k Hz. The MID EQ
R542 10K 0.25W 50-10045
R543 4.7K 0.25W 50-47035
controls are a "band pass" type which peak at 2.2k Hz for added presence to your mid range
R544 10K 0.25W 50-10045
R545 4.7K 0.25W 50-47035
tones. Because CARVIN uses "active" tone circuits, you are able to boost or cut your tones
R546, R547 22K 50-22045
R548, R549 10K 0.25W 50-10045 without any signal loss in your mixer.
R550, R551 22K 50-22045
R553, R554 100K 50-10055
S1 DPDT Push Vert 25-02201
T1 Toroid 7VA 15-70033
STUDIO MATE BLOCK DIAGRAM
U1,U2 Display LM3915 60-39150
Z1 Zener 6.2V 1N4735A 60-47350
CHANNELS 1-8 INSERT
MIC
5
MIC
PRE
LINE PAD
6
line pad
GAIN
(-11dB)
CHANNELS 9-16
THREE BAND
CHANNEL TONE
LEFT
CONTROLS
IN
HI
THREE BAND
4
CHANNEL TONE
RIGHT
CONTROLS
IN
1
HI
QTY
15
1
---
1
1
1
76-00162 996

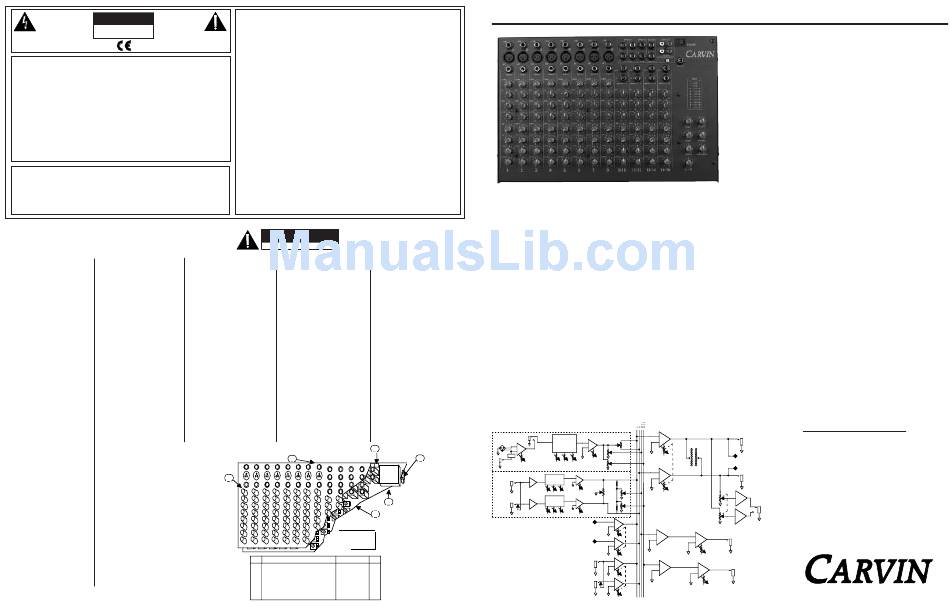

SM162 STUDIO MATE 16CH STEREO MIXER
RECEIVING INSPECTION—read before getting started
INSPECT YOUR MIXER FOR ANY DAMAGE which may have occurred during shipping.
If any damage is found, please notify the shipping company and CARVIN immediately.
SAVE THE CARTON & ALL PACKING MATERIALS. In the event you have to re-ship your
unit, always use the original carton and packing material. This will provide the best pos-
sible protection during shipment. CARVIN and the shipping company are not liable for
any damage caused by improper packing.
SAVE YOUR INVOICE. It will be required for warranty service if needed in the future.
SHIPMENT SHORTAGE. If you find items missing, they may have been shipped sepa-
rately. Please allow several days for the rest of your order to arrive before inquiring.
RECORD THE SERIAL NUMBER on the enclosed warranty card or below on this manual
for your records. Keep your portion of the card and return the portion with your name
and comments to us.
INTERNAL SIGNAL ROUTING WITH NO RF
Your balanced mic or instrument plugs directly into the high quality XLR Nortrics con-
nectors (used in hundred thousand dollar consoles) and is then routed into the differen-
tial circuits for excellent hum and noise cancellation. As your signal continues within the
console, a double-sided printed circuit board (FR-4 fire rated) carefully guards the circuit
traces with a copper shield running over the traces. This eliminates RF interference and
reduces crosstalk substantially. The printed circuit board has 931 plated-through holes
SM162
which means that every component is soldered securely in three places (bottom, in hole
and top). This offers unsurpassed component security while reducing circuit resistance
for pure dynamic sound which is unaffected by poor solder connections.
MORE HEADROOM
Headroom is very important when designing a mixer—especially for recording. Lack of head-
room will cause your sound to become distorted and muddy. This can happen when you turn
the volume too high, if the input signal is too hot or if excess bass or treble is added. With most
mixers, you have to reduce the input gain to fight headroom problems, but this just increases
noise. That's why we have taken great care in the SM162 to make sure that each gain stage is
properly designed and balanced with more headroom along the entire audio path. There is no
headroom "bottle necking" at the summing stages, ensuring clean, pure audio throughout.
MICRO TOROID SUPPLY
You won't find the precision Micro Toroid Supply in any mixer except the SM162 and other
CARVIN high-end products. Pure DC is generated from this power supply which features
precision 7815 and 7915 voltage regulators which hold voltage tolerances to within .001%.
Now you can go anywhere and never have to worry about the mixer giving you the exact
output and sound you are accustomed to. Another big feature in this power supply is the
precision wound Toroid transformer (not available from our competition) that gives
unsurpassed rejection of noise and hum. You can place the SM162 over sensitive gear
and not be concerned about injecting hum or noise into it like a standard transformer could.
CARVIN has spared no expense to achieve studio quality performance.
PROFESSIONAL HEADPHONES
The SM162 is designed to be used with professional headphones. The impedance of the head-
phone set should be between 40 and 100 ohms with a sensitivity of at least or high than 100
dBm at 1k Hz with 1mv input. 8 ohm or 500 ohm and higher headsets are not recommended.
For your records, you may wish to record the following information.
Serial No._____________________ Invoice Date_______________
THREE BAND
PAN
CHANNEL TONE L - R
CONTROLS METERS LEFT
EFF 1
MAIN LEFT
LEVEL SUMMING AMP
EFF 2
HI MID LOW
AND LEVEL
RIGHT
PAN
EFF 1
LEVEL
MID LOW MAIN RIGHT
SUMMING AMP
AND LEVEL
EFF 2
HEADPHONE
MID LOW LEVEL
LEVEL
LEFT
TAPE IN
RIGHT
SEND 1
SUMMING AMP
SEND 1
LEVEL
LEFT
EFFECTS RETURNS
ONE AND TWO
SEND 2
RIGHT SUMMING AMP
SEND 2
RETURN
LEVEL
LEVEL
OPERATING MANUAL
MODEL SM162 SPECIFICATIONS:
Frequency Response: Mic or Line Inputs: 20Hz-20KHz ±1dB
LINE OUT
Total Harmonic Distortion: Less than .009% MIC in - Master out
Equivalent Input Noise: 150 ohm source: -122dBu
Output Noise: -90dBu Master Line Out
TAPE OUT
(All Levels Minimum)
TAPE OUT Output Headroom: +20dB 1/4" unbalanced
Maximum Gain: Mic in to Master Line Out: 70dB
LINE OUT
Crosstalk: Adjacent ch's: -60db at 1KHz
Common Mode Rejection: -80db at 1KHz
Phantom Power: All XLR Mic in channels
Channel EQ.: 3 band active,LOW: 100Hz ±12dB
MID: 2.2KHz ±12dB
HI: 11.5KHz ±12dB
Mic Input: Balanced XLR input: -66 dBu
HEADPHONE
OUTPUT Line Input: Unbalanced 1/4" Phone Jack -49dBV
Power Consumption: 10VA
EFFECTS
Size and Weight: (8 lbs) 2.5"H x 16.2"W x10.2"D
SEND 1
OUTPUT
EFFECTS
SEND 2
OUTPUT
12340 World Trade Drive, San Diego, CA 92128
(619) 487-1600 (800) 854-2235
www.carvin.com
