Summary of Contents for Barnett Engineering ProTalk Cv3

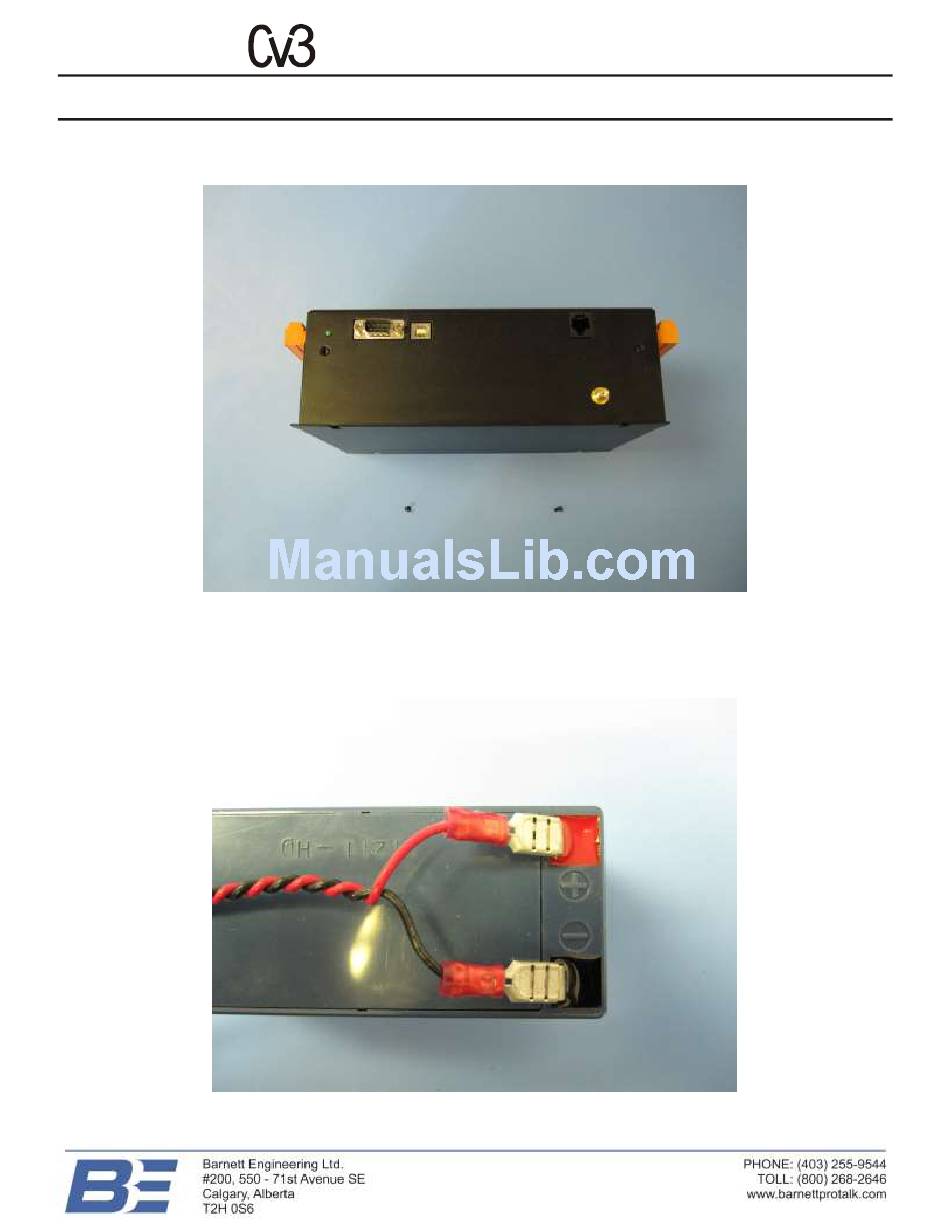

- Page 1 ProTalk Battery Installation Instructions Remove the 4 screws on both sides of the Cv3: Attach the provided power cable to the battery:...
- Page 2 ProTalk Battery Installation Instructions The red wire must match the red terminal (+) and the black wire the black terminal (-). Failure to connect the battery properly could damage the Cv3. Position the battery against the side of the base: Place the bracket on top of the battery: Press the bracket towards the corner of the base and then fasten it using the lock nuts:...
- Page 3 ProTalk Battery Installation Instructions Connect the other end of the cable to the Cv3:...
- Page 4 ProTalk Battery Installation Instructions Reassemble the unit. The firmware now needs to be updated before the battery can be used.
- Page 5 ProTalk Battery Installation Instructions Open the Cv3 Database Editor and select File - Update Module Firmware. Follow the instructions until the following window appears: Check the Battery Charger - enabled box and press the Update Module Options button:...
- Page 6 ProTalk Battery Installation Instructions Verify that the option settings are confirmed (under the Status heading) and press the Close button. The Cv3 battery backup option is now available.
