Summary of Contents for Champion PRO
- Page 1 Champion Instruments PRO GNSS Receiver...
- Page 2 Copyright Copyright 2017 Champion Instruments LLC | All rights reserved. Trademarks All product and brand names mentioned in this publication are trademarks of their respective holders. Safety Warnings The Global Positioning System (GPS) is operated by the U.S. Government, which is solely responsible for the accuracy and maintenance of the GPS network.
-
Page 3: Table Of Contents
1.2. Technical support ................5 1.3. Disclaimer ..................5 1.4. Your comments ................. 5 2. Getting started with Champion PRO ............6 2.1. About the receiver ................6 2.2. Parts of the receiver ................. 6 2.2.1. Front panel ................6 2.2.2. - Page 4 4.11.6. The Hardware Version submenu ..Error! Bookmark not defined. A. Communication ports definition ............... 19 A.I. Champion PRO receiver IO port (7-pin Lemo port) definition ..19 A.II. Champion PRO receiver USB port (7-pin Lemo port) definition ..19 Champion PRO GNSS Receiver User Guide...
-
Page 5: Introduction
1. Introduction 1. I NTRODUCTION The Champion PRO GNSS Receiver user guide describes how to set up and use the Champion PRO GNSS receiver. “The receiver” refers to the Champion PRO GNSS receiver unless otherwise stated. Even if you have used other Global Navigation Satellite Systems (GNSS) products before, Champion Instruments recommends that you spend some time reading this manual to learn about the special features of this product. -
Page 6: Use And Care
1. Introduction Before operating a Champion PRO GNSS receiver, determine if authorization or a license to operate the unit is required in your country. It is the responsibility of the end-user to obtain an operator's permit or license for the receiver for the location or country of use. -
Page 7: Getting Started With Champion Pro

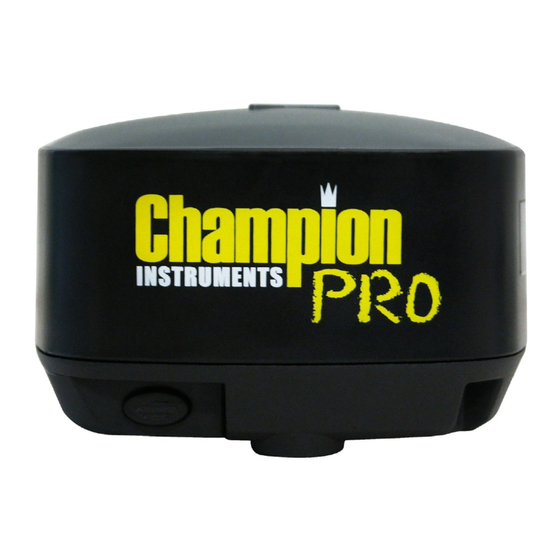

2.1. A BOUT THE RECEIVER The Champion PRO GNSS receiver incorporates a GNSS engine, GNSS antenna, internal radio, 3G cellular modem, Bluetooth, Wi-Fi and battery in a ruggedized and miniature unit. Either unit may be a base, rover or used without other devices for static collection. - Page 8 Rover is in RTK fixed status – on 4. Wi-Fi Orange Wi-Fi on – on Wi-Fi off – off 5. File recording Yellow Static data is logging – flash according to static sample interval Champion PRO GNSS Receiver User Guide Page 7...
-
Page 9: Lower Housing
Hold Function button and press this button for 5 times to reset the mainboard. 2.2.2. L OWER HOUSING The lower housing contains one SIM card slot, battery compartment, one TNC radio antenna connector, two communication and power ports, one 5/8-11 threaded insert and nameplate. Champion PRO GNSS Receiver User Guide Page 8... -
Page 10: Receiver Ports
Radio antenna Connect the UHF radio antenna to the internal radio of the receiver. connector This connector is not used if you are using an external radio. 2.3. B ATTERIES AND POWER Champion PRO GNSS Receiver User Guide Page 9... -
Page 11: Internal Battery
Do not charge or use the battery if it appears to be damaged or leaking. • Charge the Lithium-ion battery only in a Champion Pro charger that is specified to charge it. Be sure to follow all instructions that are provided with the battery charger. -
Page 12: External Power Supply
In the office: The Power Adapter is connected with AC power of 100-240V and the output port of the Power Adapter connects to the Power Port of the GPS to USB PC Data Cable. Champion PRO GNSS Receiver User Guide Page 11... -
Page 13: Inserting Battery And Sim Card
Align the connector of the battery with the connections on the receiver and snap the batter in place. Replace the battery cover when finished. To remove the battery press in the spring-loaded buttons and remove the cover. Champion PRO GNSS Receiver User Guide Page 12... -
Page 14: Product With Accessories
Tip – The SIM card is provided by your GSM cellular network service provider. 2.5. P RODUCT WITH ACCESSORIES Item Picture Champion PRO GNSS Receiver Champion PRO GNSS Receiver User Guide Page 13... -
Page 15: Connecting To An Office Computer
The receiver can be connected to an office computer for serial data transfer or settings via a GPS to PC Data Cable. Before you connect to the office computer, ensure that the receiver is powered on by the internal battery or external power. Champion PRO GNSS Receiver User Guide Page 14... -
Page 16: Connecting To Carlson Survce As A Network Rover
1. Turn on the controller → run SurvCE → tap the Equip tab in the main menu. 2. In the Equip screen, select the GPS Rover button. For the Manufacture field select Champion Instruments and Pro for the Model field. 3. Tap the Comms Tab next to the Current tab then select Bluetooth for the communication Type and Windows Mobile for the BT Type. - Page 17 Press the green check mark and then the Bluetooth button to the left of the Red X. Before moving to the Receiver tab press the button to connect to the receiver and wait for a successful connection. Champion PRO GNSS Receiver User Guide Page 16...
- Page 18 (additional configuration and settings required). 7. To configure the Pro as a network rover select Data Collector Internet for the Device field and NTRIP for the Network field. Press the Hammer and wrench icon to add NTRIP broadcasters to the list of selectable broadcasters.
- Page 19 RTK tab. Pressing the green check mark from the RTK tab will activate the connection and you should be on your way to a FIXED position! Champion PRO GNSS Receiver User Guide Page 18...
- Page 20 Ground ( - ) Ground ( - ) RS232-TX (Output) Not Used Not Used RS232-RX (Input) A.II. C HAMPION RECEIVER PORT EMO PORT DEFINITION FUNCTION Ground ( - ) Ground ( - ) VBUS Page Champion PRO GNSS Receiver User Guide...
- Page 21 Champion Instruments 4317 Park Drive Norcross, GA 30093 Page Champion PRO GNSS Receiver User Guide...
