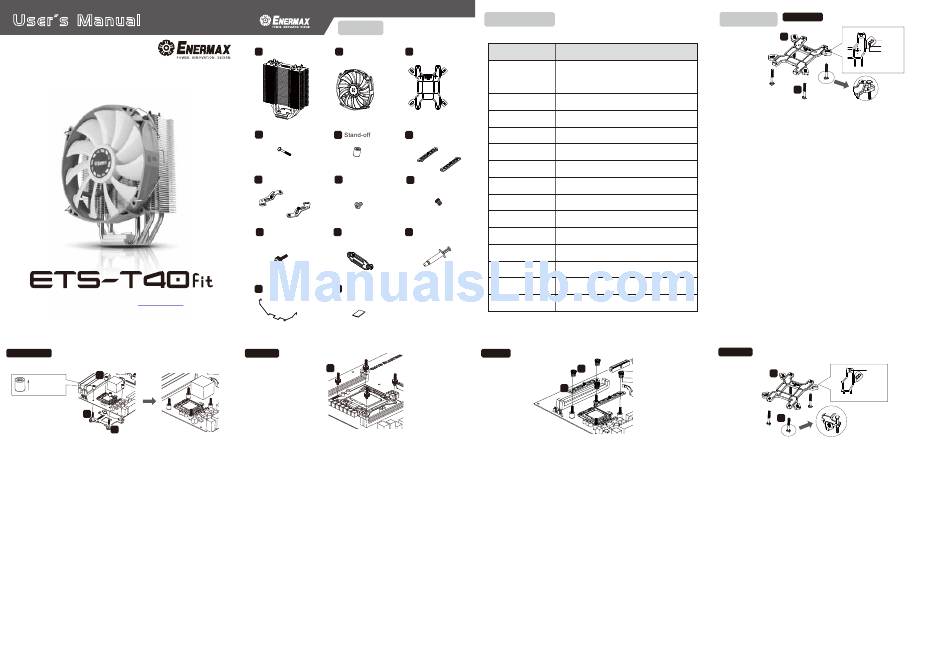

ENERMAX ETS-T40fit User Manual

User 's Ma nual
ETS-T40F-RF
100% RAM compatibility Air CPU Cooler
Step 1-A-2
＊For Intel LGA775/1150/1155/1156/1366
E
This side face up
D
C
Install the back plate on to the back of the motherboard. Put the stand-offs into the back plate
screws.
Part List
A B C
CPU Cooler Fan Back Plate
D
E F
Position Screw Intel Mounting
Plate
G H
Mounting I
AMD Mounting Plate
Spring Screw
Plate Screw
J K L
Pressure Thermal Grease
Intel LGA
Mounting Plate
2011 Screw
N
M
Fan Clip Vibration-
absorbing Pad
Step 1-B
＊For Intel LGA2011
J
Fasten the Intel LGA 2011 screws to the motherboard.
Specifications
Model
ETS-T40F-RF
Intel ® LGA775/115X/1366/2011/2011-3
Compatible Bracket
AMD AM2/AM2+/AM3/AM3+/FM1/FM2/FM2+
®
Weight
460 g
Heat Pipe 4x Ø6mm
Material Copper Heat Pipe/ Aluminum Fins
Thermal Grease Dow Corning ® TC5121
Fan Dimension
140 x 140 x 26 mm
Fan Speed 500 ~ 1200 rpm
Air Flow 24.83 ~65.58 CFM / 42.2~101.26 m 3 h
Static Pressure 0.24 ~ 1.55 mmH O
2
Rated Voltage
12 V
Bearing Type Twister Bearing
MTBF 160,000 hrs
Noise 10 ~ 19 dBA
Fan connector
4 pin PWM connector
Step 2
＊For Intel installation
I
F
Install the Intel mounting plates with the arrow marks towards to the CPU, then fasten them with
spring screws.
Step 1- -1
A
Installation ＊For Intel LGA775/1150/1155/1156/1366
C
LGA1366
LGA115X
LGA775
D
Insert the position screws into the proper holes on the back plate.
《If your CPU platform is Intel LGA2011, please skip to step 1-B》
Step 3-1
＊For AMD installation
C AMD
D
Insert the position screws into the AMD holes on the back plate.
