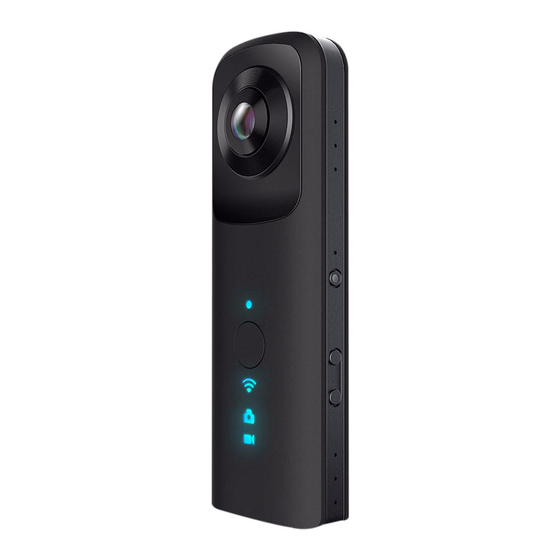

Instruction Manual Model SVRC-BK SpectraVR 360° Camera and Camcorder 80 Little Falls Road • Fairfield, NJ 07004 800-631-0868 • Fax: 800-398-1812 www.HamiltonBuhl.com...
Page 2
1. Powering On and Pairing From your iPhone or Android phone, go to the App Store and download/install the UV720 App.
Page 3
Powering On and Pairing (continued) 1. Insert the SD card. Press the power key for 3 seconds to turn the camera on. The blue power light will appear and you will hear two beeps. 2. Click on the WiFi button; the blue Wi-Fi light will flash indicating you are in pairing mode.
Page 4
Powering On and Pairing (continued) Turn on the Wi-Fi on your smartphone. On the list displayed, find SSID: pano720-XXXX and enter the default password: 88888888. The phone will indicate the Wi-Fi is connected. When connected, the light on the camera will become bright and flash.
Page 5
Powering On and Pairing (continued) 4. For Android systems, go to the Wi-Fi connection option then press "Connect" button at the bottom...
Page 6
Powering On and Pairing (continued) Main Menu (For Android Systems) Turn Over Smartphone Rotation Mode On/Off Muti-Mode Settings...
Page 7
Powering On and Pairing (continued) For iOS systems, click the camera icon to connect to SpectraVR 360 Camera. The operations of the SpectraVR 360 camera are the same between iOS and Android. iOS System...
Page 8
2. Photo and Video Modes 1. Click on the Mode Switch button to switch to Photo Mode. The photo light will appear. Click on the Shutter button and the camera will take a photo when the Shutter light flashes once and the buzzer prompts – indicating the photo will be saved on the SD card.
Page 9
3. Photo and Video Sharing How to access Preview Mode 1. Select the Preview Mode to view all contents (SD Card/Camera or Smartphone) 2. Preview images on the camera 3. Preview images on your phone 4. Download or delete photo 5.
Page 10
Photo and Video Sharing (continued) Select a video or photo to be shared from the Preview Mode, when the interface displays as follows: Click on the Download icon to download. When download is complete, click on the upper left icon to return to the browsing display.
Page 11
Photo and Video Sharing (continued) Click on the Upload icon, and the following screen will show: From this screen, you can set the rotation angles and output quality based on your preference, then click START TO SHARE to send it to others via various different methods.
Page 12
Product Registration Instructions Visit: www.HamiltonBuhl.com 1. Click on Customer Care 2. Click on Product Registration Icon 3. Please fill out all fields marked with * to register One-Year Warranty: Warranty begins the date item ships from our warehouse. All products have a one year warranty from original date of shipment, unless otherwise noted.
