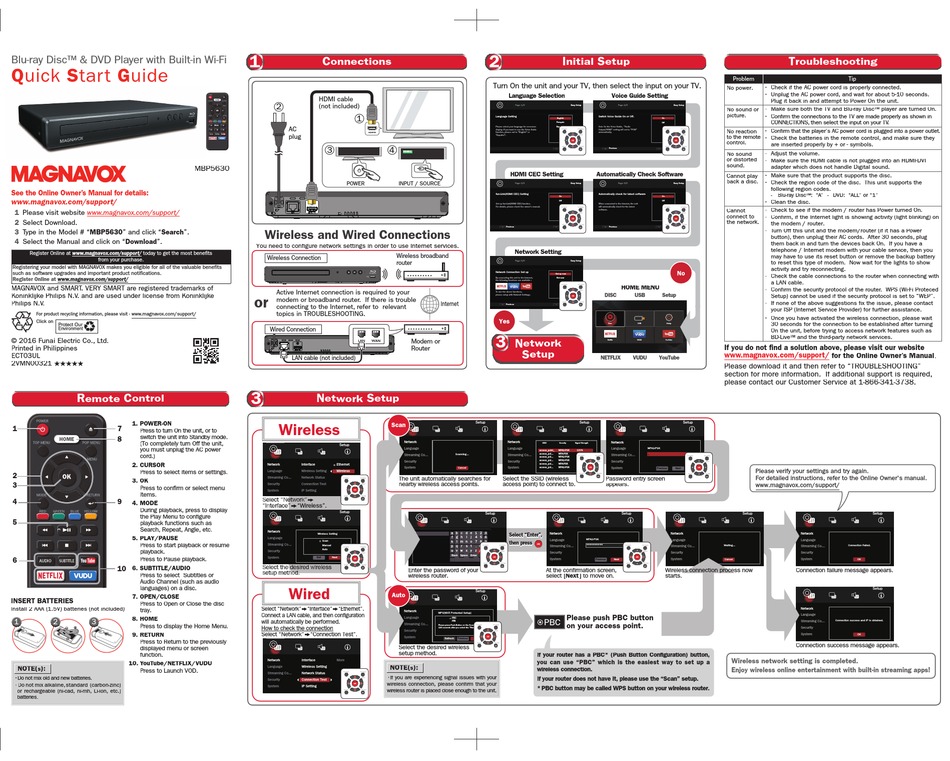

Magnavox MBP5630 Quick Start Manual

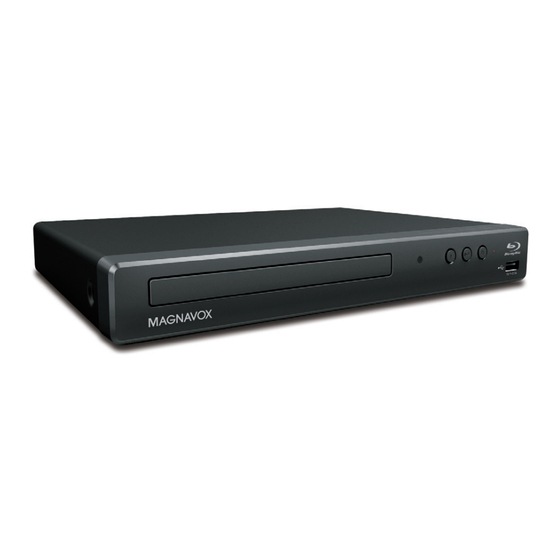

Blu-ray Disc™ & DVD Player with Built-in Wi-Fi Blu-ray Disc™ & DVD Player with Built-in Wi-Fi
Q uick Q uick S Start tart G G uide uide
See the Online Owner's Manual for details:
www.magnavox.com/support/
1 Please visit website www.magnavox.com/support/
2 Select Download.
3 Type in the Model # "MBP5630" and click "Search".
4 Select the Manual and click on "Download".
Register Online at www.magnavox.com/support/ today to get the most benefits
from your purchase.
Registering your model with MAGNAVOX makes you eligible for all of the valuable benefits
such as software upgrades and important product notifications.
Register Online at www.magnavox.com/support/
MAGNAVOX and SMART. VERY SMART are registered trademarks of
Koninklijke Philips N.V. and are used under license from Koninklijke
Philips N.V.
For product recycling information, please visit - www.magnavox.com/support/
Click on
© 2016 Funai Electric Co., Ltd.
Printed in Philippines
ECT03UL
2VMN00321 ★★★★★
R C
emote ontrol

1. POWER-ON

1 7
Press to turn On the unit, or to
switch the unit into Standby mode.
8
(To completely turn Off the unit,
you must unplug the AC power
cord.)

2. CURSOR

Press to select items or settings.
2

3. OK

3
Press to confirm or select menu
items.
4 9
4. MODE
During playback, press to display
the Play Menu to configure
5
playback functions such as
Search, Repeat, Angle, etc.

5. PLAY/PAUSE

Y
Press to start playback or resume
playback.
Press to Pause playback.
6

6. SUBTITLE/AUDIO

10
Press to select Subtitles or
Audio Channel (such as audio
languages) on a disc.

7. OPEN/CLOSE

INSERT BATTERIES
Press to Open or Close the disc
Install 2 AAA (1.5V) batteries (not included)
tray.
8. HOME
1 2 3
Press to display the Home Menu.
9. RETURN
Press to Return to the previously
displayed menu or screen
function.

10. YouTube/NETFLIX/VUDU

NOTE( ):
S
Press to Launch VOD.
•Do not mix old and new batteries.
•Do not mix alkaline, standard (carbon-zinc)
or rechargeable (ni-cad, ni-mh, Li-ion, etc.)
batteries.
1
C
onnections
HDMI cable
2
(not included)
1
AC
plug
3
MBP5630
POWER

Wireless and Wired Connections

You need to configure network settings in order to use Internet services.
Wireless Connection
Active Internet connection is required to your
or modem or broadband router. If there is trouble
connecting to the Internet, refer to relevant
topics in TROUBLESHOOTING.
Wired Connection
LAN cable (not included)
3
N S
etwork
Wireless
Setup
Network Interface Ethernet
Language Wireless Setting Wireless
Streaming Co... Network Status
Security Connection Test
System IP Setting
Select "Network"A A
Select "Ne e twork" S ele lect "N " e e twork o "
" " Interface"A A "Wireless".
"Interface" " Interface" " " "Wireless".
Setup
Network
Wireless Setting
Language
Scan
Streaming Co...
Manual
Auto
Security
System Exit Next
Select the desired wireless Select the desired wireless S elect the lect th esired wirele ired wirel i d i
setup method. setup method. setup method. etup me hod o o o
Wired
Select "Network"A"Interface"A"Ethernet".
Connect a LAN cable, and then configuration Connect a LAN cable, and then configuration
will automatically be performed. will automatically be performed.
How to check the connection
Select "Network"A"Connection Test".
Network Interface More
Language Wireless Setting
Streaming Co... Network Status
Security Connection Test
System IP Setting
2
Turn On the unit and your TV, then select the input on your TV.
Language Selection
Page: 1/5
Language Setting
Please select your language for on-screen
display. If you want to use the Voice Guide
function, please set to "English" or
"Español".
4
HDMI1
HDMI CEC Setting
INPUT / SOURCE
Page: 3/5
fun-Link(HDMI CEC) Setting
Set up fun-Link(HDMI CEC) function.
For details, please check the owner's manual.
Previous

Network Setting

Wireless broadband
Page: 5/5
router

Network Connection Set up

By connecting this unit to the Internet,
the following functions are available :
To use the above functions,
please setup with Network Settings.
Internet
Previous
Yes
3
Modem or N
etwork
Router
S
etup
etup
Setup
Scan
Network Network
SSID
Language Language
access_point_
Scanning... access_poi...
Streaming Co... Streaming Co...
access_poi...
access_poi...
Security Security
access_poi...
System System access_poi...
Cancel
The unit automatically searches for The unit automatically searches for Select the SSID (wireless Select the SSID (wireless
nearby wireless access points. nearby wireless access points. access point) to connect to. access point) to connect to.
Setup
| a b c d e 1 2 3
Network
Select "Enter", Select "Enter",
f g h i j 4 5 6
Language
k l m n o 7 8 9
then press then press
p q r s t . @ 0
Streaming Co...
u v w x y z ABC
Security
Back Space Enter Clear
System
Enter the password of your Enter the password of your At the confirmation screen, At the confirmation screen,
wireless router. wireless router. select [Next ] select
Setup
Auto
Network
WPS(Wi-Fi Protected Setup)
Language
PBC
PBC
PIN
Streaming Co...
Please press Push Button on the Access Point within
120 seconds after you select the "Next" Button below.
Security
System
Refresh Previous Next
Select the desired wireless Select the desired wireless
setup method. setup method.
If your router has a PBC* (Push Button Configuration) button,
you can use "PBC" which is the easiest way to set up a
NOTE( ):
S wireless connection.
•If you are experiencing signal issues with your
If your router does not have it, please use the "Scan" setup.
wireless connection, please confirm that your
* PBC button may be called WPS button on your wireless router.
wireless router is placed close enough to the unit.
I S
nitial etup
Problem
No power.
Voice Guide Setting

Easy Setup

Page: 2/5 Easy Setup
No sound or
picture.
Switch Voice Guide On or Off.
English On
Français
Off
Español Sets On the Voice Guide, "Audio
Output/HDMI" setting will set to "PCM"
No reaction
automatically.
to the remote
control.
Next Previous Next
No sound
or distorted
sound.
Automatically Check Software
Cannot play
back a disc.
Easy Setup Page: 4/5 Easy Setup
Automatically check for latest software
On On
Off Off
When connected to the internet, the unit
will automatically check for the latest
software. Cannot
connect to
the network.
Next Previous Next
Easy Setup
No
Set up now
Not now
HOME MENU
DISC USB Setup
Next
Disc Disc USB USB Setup Setup
Netflix VUDU YouTube
If you do not find a solution above, please visit our website
www.magnavox.com/support/
NETFLIX VUDU YouTube
Please download it and then refer to "TROUBLESHOOTING"
section for more information. If additional support is required,
please contact our Customer Service at 1-866-341-3738.
Setup Setup
Network
Security Signal Strength
Language WPA2-PSK
WPA2-PSK 100%
_
WPA-PSK 100%
Streaming Co...
WPA2-PSK 100%
WPA2-PSK 100%
Security
WPA-PSK 100%
WPA2-PSK 100% System
Previous Exit Next
Password entry screen Password entry screen
appears. appears.
Setup
Network
WPA2-PSK Language
********** Waiting...
Streaming Co...
Security
System
Previous Exit Next Cancel
Wireless connection process now Wireless connection process now ss connection proces
[Next ] to move on. to move on. starts. starts.
Please push PBC button
on your access point.
Wireless network setting is completed.
Enjoy wireless online entertainment with built-in streaming apps!
T
roubleshooting
Tip
• Check if the AC power cord is properly connected.
• Unplug the AC power cord, and wait for about 5-10 seconds.
Plug it back in and attempt to Power On the unit.
• Make sure both the TV and Blu-ray Disc™ player are turned On.
• Confirm the connections to the TV are made properly as shown in
CONNECTIONS, then select the input on your TV.
• Confirm that the player's AC power cord is plugged into a power outlet.
• Check the batteries in the remote control, and make sure they
are inserted properly by + or - symbols.
• Adjust the volume.
• Make sure the HDMI cable is not plugged into an HDMI-DVI
adapter which does not handle Digital sound.
• Make sure that the product supports the disc.
• Check the region code of the disc. This unit supports the
following region codes.
- Blu-ray Disc™: "A" - DVD: "ALL" or "1"
• Clean the disc.
• Check to see if the modem / router has Power turned On.
• Confirm, if the Internet light is showing activity (light blinking) on
the modem / router.
• Turn Off this unit and the modem/router (if it has a Power
button), then unplug their AC cords. After 30 seconds, plug
them back in and turn the devices back On. If you have a
telephone / Internet modem with your cable service, then you
may have to use its reset button or remove the backup battery
to reset this type of modem. Now wait for the lights to show
activity and try reconnecting.
• Check the cable connections to the router when connecting with
a LAN cable.
• Confirm the security protocol of the router. WPS (Wi-Fi Proteced
Setup) cannot be used if the security protocol is set to "WEP".
• If none of the above suggestions fix the issue, please contact
your ISP (Internet Service Provider) for further assistance.
• Once you have activated the wireless connection, please wait
30 seconds for the connection to be established after turning
On the unit, before trying to access network features such as
BD-Live™ and the third-party network services.
for the Online Owner's Manual.
Please verify your settings and try again.
For detailed instructions, refer to the Online Owner's manual.
www.magnavox.com/support/
Setup Setup
Network
Language
Connection Failed.
Streaming Co...
Security
System
OK
Connection failure message appears. Connection failure message appears.
Setup
Network
Language
Streaming Co... Connection success and IP is obtained.
Security
System
OK
Connection success message appears. Connection success message appears.
