Summary of Contents for QAcoustics 3010i
- Page 1 3 0 0 0 i S e r i e s O W N E R ’ S M A N U A L...
- Page 2 Designed and engineered in the United Kingdom.
-
Page 3: Important Safety Information And Warnings
Important Safety Information and Warnings 1. Safety Information and Warnings Before making connections your Retain the packaging for future transport. If you loudspeakers make sure that all active units in dispose of the packaging, please do so following your system are switched off at the mains. all recycling regulations in your area. - Page 4 Waste Electrical and Electronic Equipment Symbol This symbol indicates that when the unit is to be discarded, it must be separated from other household-type waste and sent to separate collection facilities for recovery and recycling of electrical and electronic equipment. Please make sure you are familiar with your local rules on the separate collection of electrical and electronic...

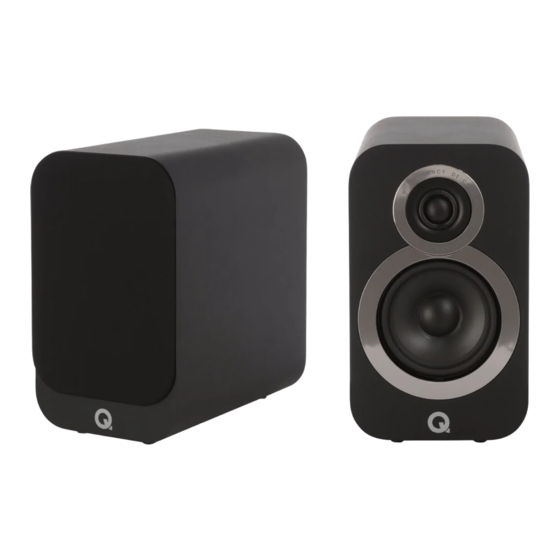

- Page 5 2-channel audiophiles and discerning movie enthusiasts. The range comprises: 3010i: Compact bookshelf speaker with a 100 mm (4.0 inches) bass driver. 3020i: Bookshelf speaker with a 125 mm (5.0 inches) bass driver. 3050i: Floorstander with 2 x 165 mm (6.5 inches) bass drivers.
- Page 6 Preparation Lift the speakers from the cartons by holding the cabinets. Do not touch the driver units or use the protective bags to lift them. The 3050i and 3060S are heavy - get assistance to lift them if necessary. Foam Bung The 3000i series speakers are rear ported and designed to work best with some space behind them i.e.
- Page 7 3010i and 3020i The 3010i and 3020i are ideally mounted on Q Acoustics floor stands or wall mounted. If you are stand mounting, a simple guide is that the treble unit should be at ear level to a seated listener. Wall mounted speakers may be mounted slighter higher with the speaker angled down.
- Page 8 Effects loudspeakers 3090Ci The 3090Ci is designed to be operated close to a TV screen and central to it. It should be placed immediately above or below the screen. If you have a Plasma or LCD monitor, mount the 3090Ci to the wall or other suitable surface immediately above or below the screen using the Q Acoustics Wall Bracket.
- Page 9 Turn up the level gradually. Terminals and Connectors The 3010i, 3020i, 3050i and 3090Ci have standard two terminal crossovers. 3010i, 3020i & 3050i & 3090Ci Loudspeaker Cables Specialist loudspeaker cables will offer a higher standard of reproduction than general purpose ‘bell’...
-
Page 10: Right Speaker
Connecting a Terminal Unscrew the terminal anticlockwise to expose the Tight Loose mounting hole in the base of the terminal column. Insert the bare end of the cable into the hole. Re- tighten the terminal fully hand tight. Make sure there are no stray wires which could touch adjacent terminals. - Page 11 Aftercare Cabinet Care Clean cabinets only with a lightly dampened cloth. Do not use solvent based cleaning materials. Never use abrasives of any kind. The cabinet surfaces will usually only require light dusting. Should an aerosol or other cleaner be used, apply the cleaner onto the cloth first and not directly onto the product.
-
Page 12: Warranty
The warranty does not in any way affect your legal rights. Warranty can be extended to 5 years (2 years for subwoofer) by registering your product at www.qacoustics.co.uk/register. For service information contact: info@qacoustics.co.uk Q Acoustics Stortford Hall Industrial Park Bishops Stortford, Hertfordshire, UK... - Page 13 Accessories Wall Bracket (Single) 3010i / 3020i / 3090Ci Black and White ° 159 mm 70 mm 99 mm 3020i 3010i ° ° ° ° 5 - 45 mm 5 - 45 mm Speaker Stand (Pair) Subwoofer Wall Bracket 3010i / 3020i...
-
Page 14: Specifications
Specifications Passive Loudspeakers 3010i 3020i Enclosure type: 2-way reflex 2-way reflex Bass unit: 100 mm (4.0 in) 125 mm (5.0 in) Treble unit: 22 mm (0.9 in) 22 mm (0.9 in) Frequency response (+3 dB, -6 dB): 65 Hz - 30 kHz... - Page 15 3050i 3090Ci 2-way reflex 2-way reflex 2 x 165 mm (6.5 in) 2 x 100 mm (4.0 in) 22 mm (0.9 in) 22 mm (0.9 in) 44 Hz - 30 kHz 75 Hz - 30 kHz 6 Ω 6 Ω 4 Ω...
- Page 16 Q A C O U S T I C S . C O . U K Our policy is one of continuous product improvement. We reserve the right to change the designs and specifications without notice. This document contains information that is subject to change without notice Q16400-IS-EN_r0...
