Kroy K6200 Quick Installation Manual

Quick Installation Guide

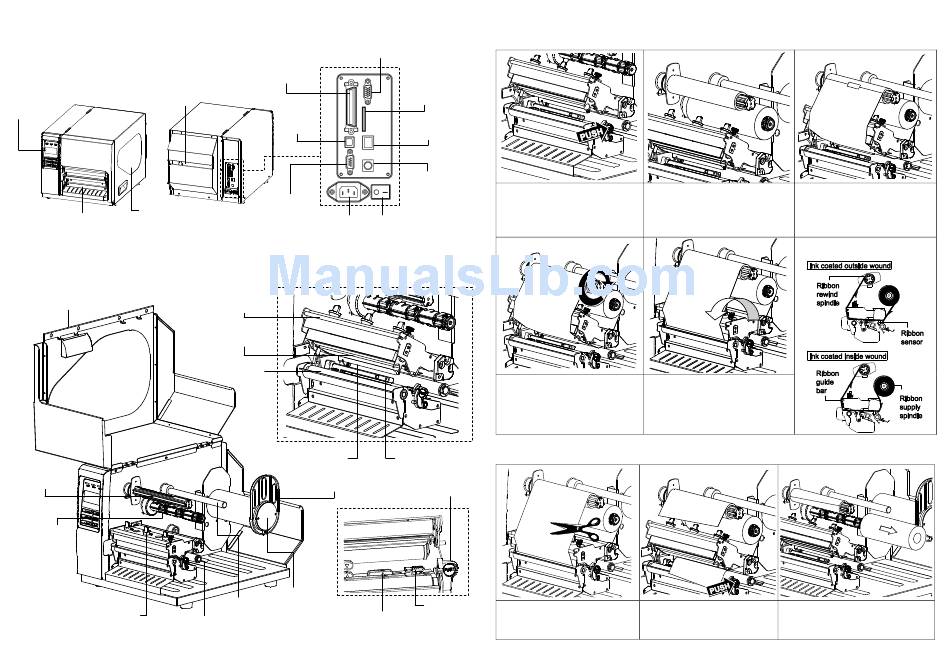

Printer Overview
Fan-fold Paper
Entrance Chute
Graphic LCD with
Backlit Display
Media View
Window
Lower Front
Cover
Note:
The interface picture here is for reference only. Please refer to the product specification for the interfaces
availability.
Printer Cover
Ribbon Rewind
Spindle
Ribbon Supply
Spindle
Print Head Pressure
Adjustment Knobs
GPIO Interface (Option)
Centronics
Interface
USB
Interface
RS-232C
Interface
Power Jack
Socket
Ribbon Guide Bar
Print Head
Platen Roller
Ribbon Sensor
Label Roll Guard
Label Supply
Media
Spindle
Guide Bar
Black Mark
Damper
Sensor
Loading Ribbon
SD Card Socket
Ethernet Interface
PS/2 Interface
(1) Lift printer cover open. Push print
head release lever to open print
head mechanism.
Power Switch
(4) Wind the ribbon rewind spindle
clockwise roughly 3~5 circles until
ribbon is smooth, properly stretched
and wrinkle-free.
Replace Ribbon
Media Sensor
Print Head
Release Lever
(1) Break the ribbon between the
Label Guide
ribbon guide bar and ribbon rewind
spindle.
Page 1 of 2
(2) Install the ribbon and paper core (3) Thread ribbon through the ribbon
onto ribbon supply spindle and sensor slot and print head. Stick
ribbon rewind spindle. ribbon onto ribbon rewind paper
core, keeping the ribbon flat and
wrinkle-free.
* Loading path for ribbon
(5) Close the print head mechanism,
making sure the latches are
engaged properly.
(2) Push the print head release lever (3) Slide the ribbon off from the ribbon
to open the print head rewind spindle.
mechanism.
