20-INCH DECK WIDTH SELF-PROPELLED MOWER
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-888-3KOBALT (1-888-356-2258), 8 a.m. - 8 p.m., EST,
Monday - Friday.
AB17851
Purchase Date
1
ITEM #0934218
MODEL #KMP 5040-06
Español p. 25
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kobalt KMP 5040-06
Summary of Contents for Kobalt KMP 5040-06
- Page 1 ITEM #0934218 20-INCH DECK WIDTH SELF-PROPELLED MOWER MODEL #KMP 5040-06 Español p. 25 ATTACH YOUR RECEIPT HERE Serial Number Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-888-3KOBALT (1-888-356-2258), 8 a.m. - 8 p.m., EST, Monday - Friday.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Product Specifications......................2 Package Contents........................3 Symbols..........................4 Safety Information ......................6 Preparation ........................... 11 Assembly Instructions ......................12 Operating Instructions ....................... 15 Care and Maintenance......................19 Troubleshooting........................22 Warranty ..........................23 Replacement Parts List...................... 24 PRODUCT SPECIFICATIONS SPECIFICATIONS Battery type 40 V Lithium-ion Charge time 2.5 hours, for 40 V 172 Wh battery... -
Page 3: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Lawn mower Self-propel lever Bail lever Self-propel speed controls Safety lock-out button Grass catcher Upper handle Handle lock knobs Lower handle Side discharge chute Rear discharge cover Mulching plug Height adjustment lever Charger Side discharge cover Battery 40 V 5 Ah... -
Page 4: Symbols
HARDWARE CONTENTS (not shown actual size) Handle bolt Handle knob Qty. 2 Qty. 2 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, if not DANGER avoided, will result in death or serious injury. - Page 5 SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their mean- ing. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOLS DESIGNATION EXPLANATION Volts Voltage Amperes Current Hertz...
-
Page 6: Safety Information
SAFETY INFORMATION GENERAL SAFETY RULES READ ALL INSTRUCTIONS CAREFULLY WARNING • This symbol indicates important safety instructions. If these instructions are not followed, it could endanger the personal safety and/or property of the operator and others. Read and understand all instructions in this manual before attempting to operate the mower. - Page 7 SAFETY INFORMATION • Never pull the mower back toward you while you are walking. If you must back the mower away from a wall or an obstruction, first look down and behind in order to avoid tripping, and then follow these steps: •...
- Page 8 Store indoors only. Always remove the battery from mower and charger when cleaning or storing the tool. BATTERY & CHARGER CAUTION Use only Kobalt approved replacement batteries. Other batteries may cause injury or damage to the mower. For use only with Kobalt 40-volt batteries and charger. BATTERY SAFETY RULES •...
- Page 9 SAFETY INFORMATION • When battery pack is not in use, keep it away from other metal objects like: paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause sparks, burns, or a fire. •...
- Page 10 SAFETY INFORMATION WARNING When transporting or servicing unit, always remove the battery. WARNING (PROPOSITION 65) Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some exam- ples of these chemicals are: •...
-
Page 11: Preparation
SAFETY INFORMATION PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. UNPACKING • Carefully remove the product and any accessories from the box. -
Page 12: Assembly Instructions
ASSEMBLY INSTRUCTIONS WARNING • If any parts are damaged or missing, do not operate this product until the parts are replaced. Us- ing a product with damaged or missing parts could result in serious personal injury. • Do not attempt to modify this product or create accessories not recommended for use with this product. - Page 13 ASSEMBLY INSTRUCTIONS 2. Removing the mulching plug • To remove the mulching plug (N), lift the rear dis- charge door (F). • Grasp the handle of the mulching plug (N). Using this handle, lift and pull the mulch plug out. •...
- Page 14 ASSEMBLY INSTRUCTIONS WARNING Always remove battery from your tool when you are assembling parts, making adjustments, cleaning, or when not in use. Removing battery will prevent accidental starting that could cause serious person- al injury. 5a. To install battery • Lift and hold up the battery door.
-
Page 15: Operating Instructions
OPERATING INSTRUCTIONS 1. Starting/Stopping the mower a. To start the mower: • Raise the battery door. • Install battery. • Close the battery door. • Press and hold the safety lock-out button (C). • Pull the bail lever (B) upward to the handle to start the mower and release the safety lock-out button. - Page 16 OPERATING INSTRUCTIONS 3. Self-propelled mowing a. To engage the self-propelled feature: • Open the battery door. • Insert the battery. • Pull the self-propel lever (I) upward to meet the handle. b. To disengage the self-propelled feature: • Release the self-propel lever (I). c.
- Page 17 OPERATING INSTRUCTIONS WARNING • The operation of any mower can result in foreign objects being thrown into the eyes, which can cause severe eye damage. Always wear safety glasses while operating the mower and while per- forming any adjustments or repairs. •...
- Page 18 OPERATING INSTRUCTIONS Mowing tips Note: A sharp blade will greatly enhance the performance of the mower, especially when cutting high grass. Be sure to check the blade and to sharpen it at least once per year, as described in the Care and Maintenance section. •...
-
Page 19: Care And Maintenance
Always protect your hands by wearing heavy gloves and/or wrapping the cutting edges with rags or other materials when performing any maintenance on the blades. Always remove the battery when servicing or transporting the mower. Use only a Kobalt replacement blade (Item #0812963, sold separately). • Remove battery. - Page 20 CARE AND MAINTENANCE STORING THE MOWER: The following steps should be taken in order to prepare the lawn mower for storage. • Clean the mower as described in the previous section. • Inspect the blade and replace it or sharpen it, if required (refer to the Replacing the cutting blade section).
- Page 21 CARE AND MAINTENANCE Service Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service, it is suggested you return the product to your nearest AUTHORIZED SER- VICE CENTER for repair. When servicing, use only identical replacement parts. WARNING •...
-
Page 22: Troubleshooting
TROUBLESHOOTING If you still have questions or an unresolved issue after going through this troubleshooting guide, or just want to speak to a Kobalt product expert, please call our Kobalt customer service department at 1-888-356-2258. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION The mower does 1. -
Page 23: Warranty
This Kobalt 40 V 20” cordless self-propelled lawn mower is warranted to the original purchaser from the original purchase date for five (5) years subject to the warranty coverage described herein. This Kobalt 40V Lithium-ion Battery carries a three (3) year warranty from the original user to be free from defects in material and workmanship. -
Page 24: Replacement Parts List
REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-888-356-2258. PART DESCRIPTION PART # Mulching plug 341021555 Grass catcher 349011555 Blade 333011555 Blade bolt 32201179AC Handle bolt 322041179 Handle knob 341291179 Front wheel 341981555 Rear wheel 341971555 341191179-2 Safety key 311191555...
Need help?
Do you have a question about the KMP 5040-06 and is the answer not in the manual?
Questions and answers
can the blades be sharpened by the user?
Yes, the Kobalt KMP 5040-06 blades can be sharpened by the user. The manual recommends checking and sharpening the blade at least once per year to maintain performance.
This answer is automatically generated
Rear wheel locks up
The rear wheel of a Kobalt KMP 5040-06 could lock up if the handle is rotated into the fully locked storage position, activating the storage switch which disables the mower. Additionally, if the mulching plug or grass catcher bag is not installed or removed properly, it may interfere with the discharge area, potentially causing wheel obstruction.
This answer is automatically generated

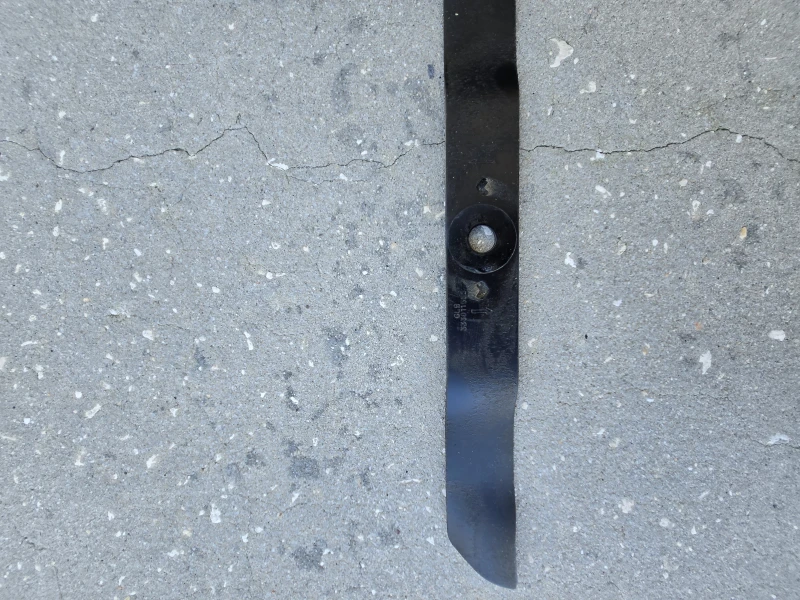

I need this 333011555 blade replacement
The replacement blade for the Kobalt KMP 5040-06 mower has part number 333011555. However, it is reported as unavailable. To find a replacement, you can check with Kobalt customer service at 1-888-356-2258. Additionally, you may look for compatible GreenWorks blades, but no specific cross-reference part number is provided in the available information.
This answer is automatically generated
I need the blade 333011555
Yes, the Kobalt KMP 5040-06 is compatible with blade 333011555, as it is listed in the manual as the designated blade for this mower.
This answer is automatically generated
We've used this mower for a few years. Then, halfway through mowing the lawn, when I came back from emptying the bag, it would not start when I push the start button (yes the blue bar is being held too). I can engage the drive mode and the mower moves forward so it's not the battery. It's something in the start mechanism. The blade moves freely. The motor just won't start.
