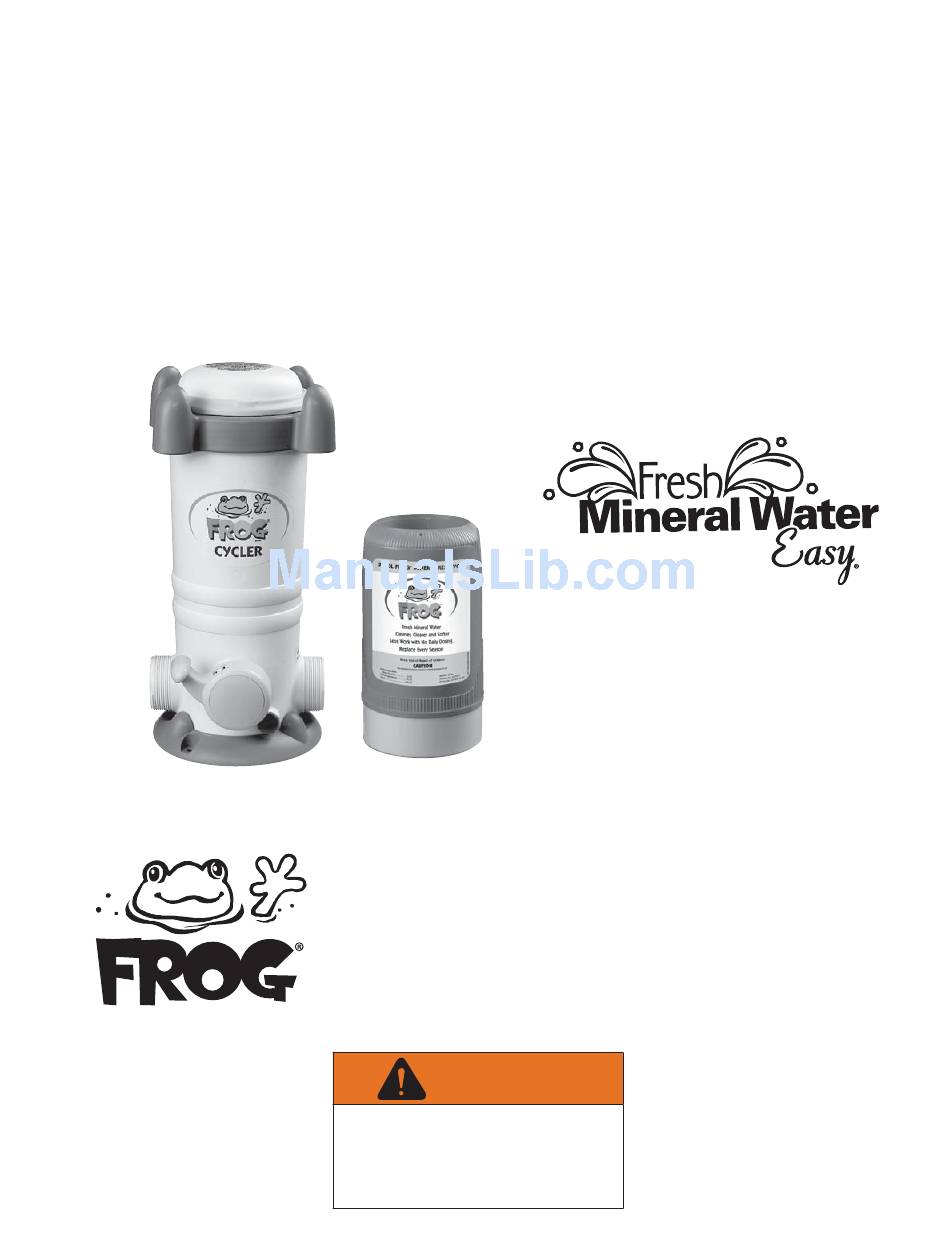

POOL FROG
Instruction Manual
Mineral Pool-Care Cycler
for Pools up to 25,000 Gallons
Ver la versión en español de este manual en frogproducts.com/product/pool-frog-model-6100

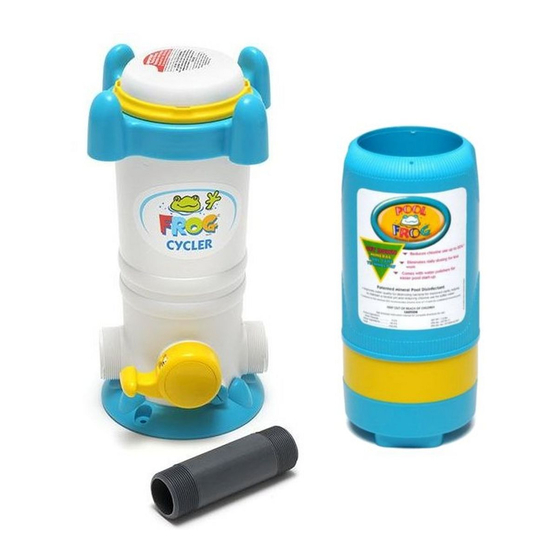

POOL FROG Cycler comes with the
POOL FROG Mineral Reservoir
Patented Mineral Disinfectant
Customer Service 800-222-0169
WARNING
To minimize the risk of serious injury, death or
damage, before installing or first using this
equipment, read Instruction Manual and all safety
labels and follow all safety instructions and
precautions. Save manual for future reference.
®
6100
Cleaner
because it kills bacteria two ways
Clearer
because it helps keep pH in range
Softer
because it reduces chlorine use up to 50%*
Easier
with pre-fi lled pacs for no mess,
no guess and no stress
frogproducts.com
1
