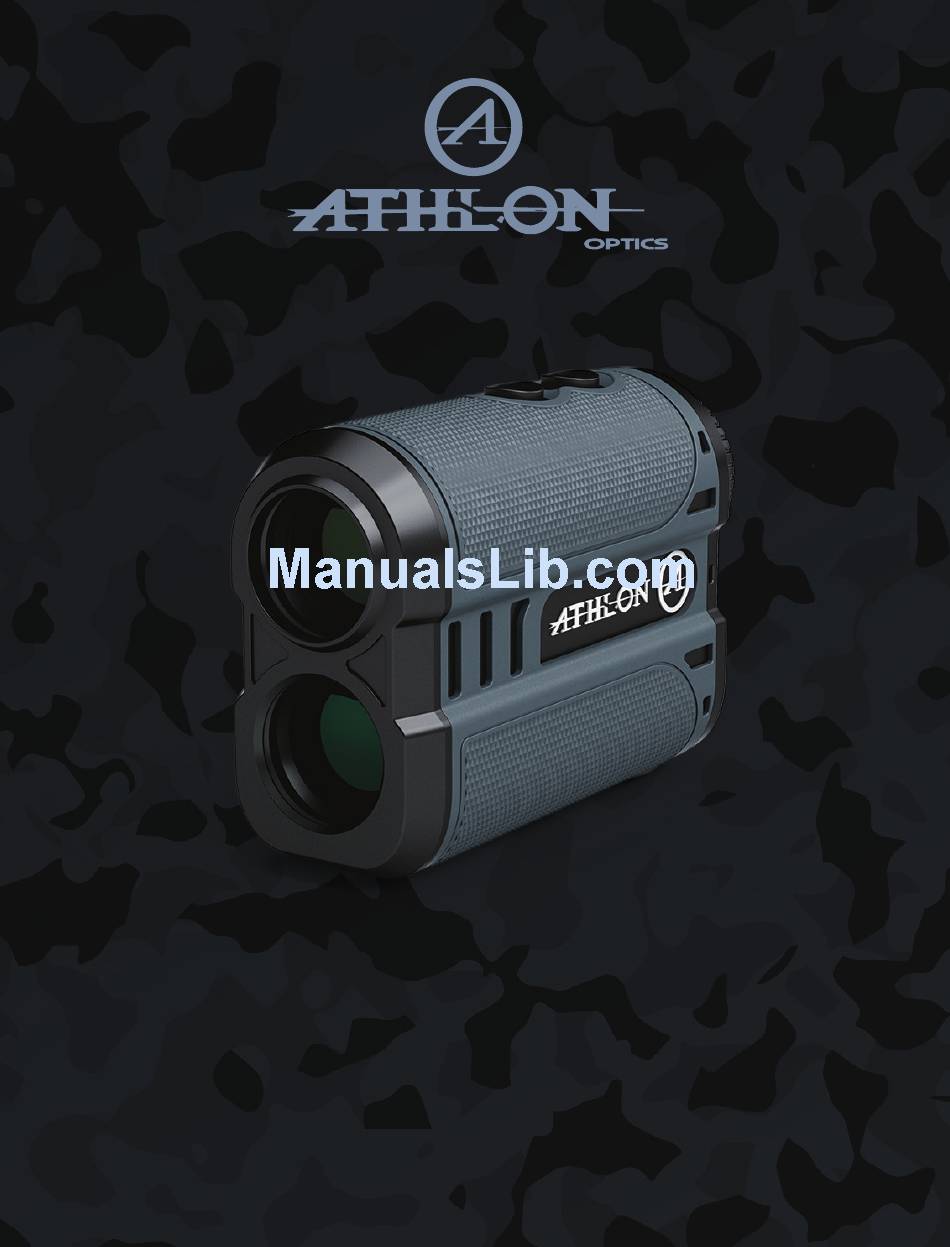

- Page 1 MIDAS 1200Y U S E R M A N U A L A N D C A R E I N S T R U C T I O N S...
- Page 2 Rangefinder Elements “Mode“ Button Battery Compartments “Ranging“/”Power” Button Laser Receiving Objective Eyepiece Laser Emission Objective...
-
Page 3: Startup And Shutdown
Startup and Shutdown 1. Remove the battery cap on the bottom and insert a CR2- 3V battery into the battery chamber, having the positive side facing up, then close the battery cap; 2. Short press the “Power” button to power on. You should see the startup display by looking through the eyepiece;... - Page 4 Eyepiece LCD Display Unit: M--Meter, Y--Yard; Unit: M--Meter, Y--Yard; Secondary Display: Incline Angle, Vertical Distance, True Horizontal Distance; Aiming Reticle; Low Battery Indicator; Sight Distance Display, “----” represents that target can- not be measured.
- Page 5 Menu Operational Summary 1. Power ON: Press to power on, LCD will display as fol- lowing: 2. Ranging: Short press “Ranging” button shortly, the range reading is displayed as below:...
- Page 6 3. Scanning Mode: Holding the “Ranging” button skimming among different targets the Rangefinder will scan a group of measurable targets at different distances and give you constant readings of different angular and distance information. 4. Change Unit of Measurement: Holding the “Mode” but- , and then within 2 seconds short press the “Rang- ing”...
- Page 8 Memory Mode: Long press the “Mode” button switch from Normal Mode (N) to Memory Mode (M) (see the illustration below). Long press the “Mode” button Long press “Ranging” button Release back to Normal Mode; The system will “Mode” button automatically go back to Normal Mode if no operation within 10 seconds Short press the “Ranging”...
- Page 9 1) Maximum reading data up to 100 sets; 2) Short press “Ranging” button for page up, short press “Mode” button for page down; 3) Enter Memory mode, the default display is the last date, that is the 100th data, and the system will over- write the oldest data set.
- Page 10 THE ATHLON GOLD MEDAL LIFETIME WARRANTY* Your Athlon product is not only warranted to be free of de- fects in materials and workmanship for the lifetime of the product. Athlon will also repair or replace, at no charge to you, your product if you should damage it through normal use.
- Page 12 TOLL FREE : 1 - 855- 913 - 56 78 CONTA CT@A T HLON OPT I CS.CO M 14308 W 96TH TERRACE LENEXA, KS 66215...
