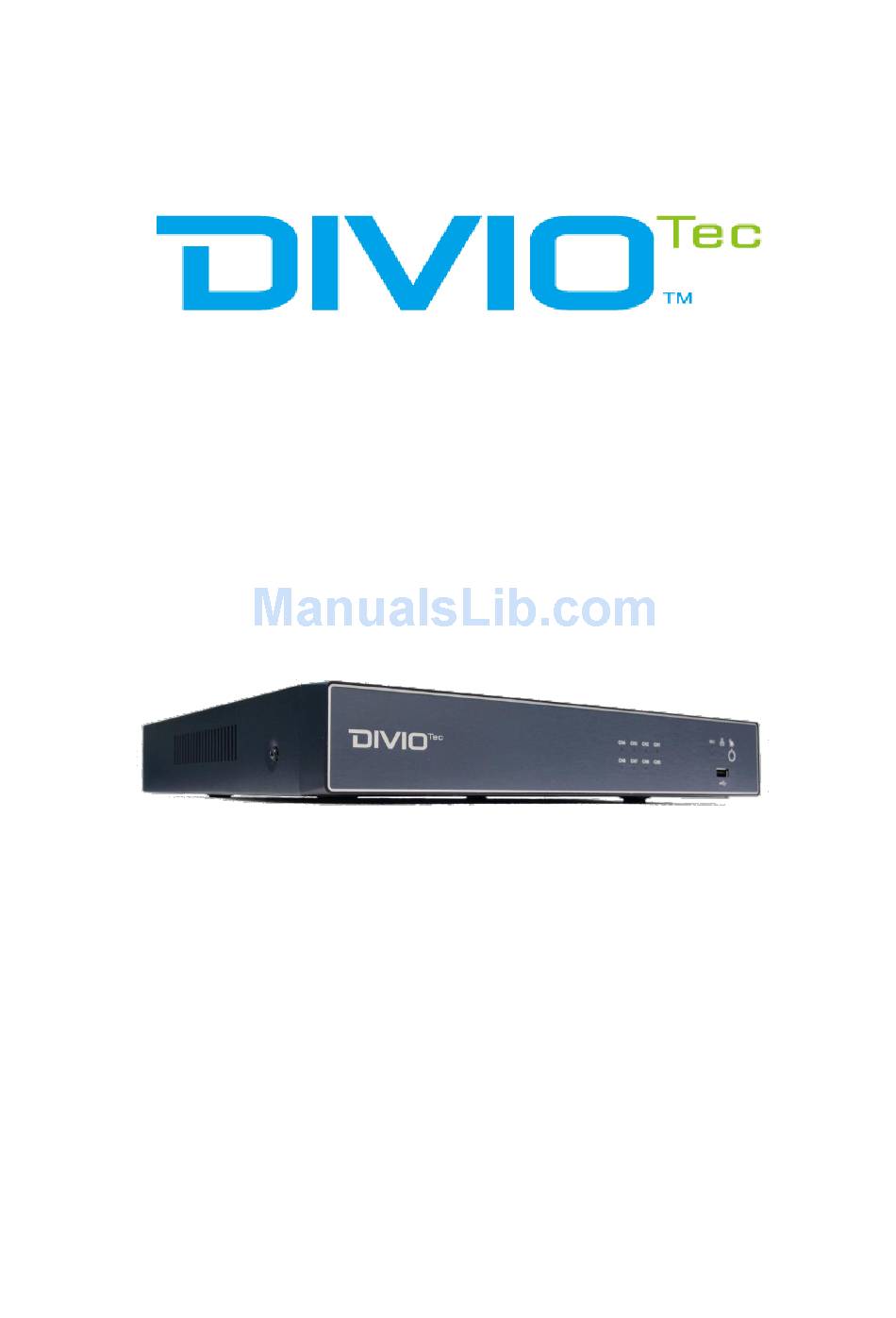

Page 1: Quick Installation Guide
SRA311-008P8 Series Network Video Recorder Quick Installation Guide Note: The Quick Guide is subject to change without notice 2018-05-31 released... - Page 2 1. 8CH H.265 PoE NVR Front Panel 8CH PoE NVR Front Panel Power/ Alarm: Power indicator turns on when NVR turns on. Alarm indicator blinks when the system alarm is detected. Network : Network indicator turns on when NVR network access is connected. Record : Rec indicator turns on when NVR is recording.
- Page 3 Item Description Connect up to 4 alarm inputs to the alarm input connectors. N.C or Alarm In/Out N.O type alarm signal out. RS485 Connect a Pan/Tilt/Zoom camera to the RS485 port. Connect a speaker or other audio output device to the audio output Audio Out connectors.
- Page 4 Connect SATA & Power cables to Hard Disk. Place the HDD in accordance with the two holes in the bottom. Put HDDs on right positions of the case. Step3. Turn the device upside down and fix the four screws of HDD firmly. Step4.
