Omron G9SE-221-T User Manual

Original instructions
Type G9SE-201 Type G9SE-401
Type G9SE-221-T□
Safety Relay Unit
USER'S MANUAL
English
Thank you for purchasing G9SE Safety Relay Unit.
Please read and understand this manual before using the products.
Keep this manual ready to use whenever needed.
Only quali ed person trained in professional electrical technique should handle G9SE.
Please consult your OMRON representative if you have any questions or comments.
4022078-4 A
EC Declaration of Conformity
OMRON declares that G9SE series are in conformity with the requirements of the following
EC Directives:
- EMC Directive: 2004/108/EC
- Machinery Directive: 2006/42/EC
Standards
G9SE series are designed and manufactured in accordance with the following standards:
- EN ISO13849-1: 2008 PL e Category 4
- IEC/EN 60947-5-1, - IEC/EN 62061 SIL3,
- EN81-1 - EN81-2
- UL508 - CAN/CSA C22.2 No.14
Precaution for Safe Use
Meanings of Signal Words
The following signal words are used in this manual.
Indicates a potentially hazardous situation which, if not avoided, will
result in minor or moderate injury, or may
WARNING
result in serious injury or death.
Additionally there may be signi cant property damage.
Meaning of Alert Symbols
The following alert symbols are used in this manual.
Indicates prohibited actions
Indicates mandatory actions
Alert Statements
WARNING
Serious injury may possibly occur due to breakdown of safety outputs.
Do not connect loads beyond the rated value tothe safety outputs.
Serious injury may possibly occur due to loss of required safety functions.
Wire G9SE properly so that supply voltages or voltages for loads do NOT touch the
safety inputs accidentally or unintentionally.
Serious injury may possibly occur due to loss of safety functions.
Use appropriate devices referring to the information shown below.

Controlling Devices

Requirements
Emergency stop switch Use approved devices with Direct Opening Mechanism complying with
IEC/EN 60947-5-1
Door interlocking switch Use approved devices with Direct Opening Mechanism complying with
Limit switch IEC/EN 60947-5-1 and capable of switching micro loads of 24VDC, 5mA.
Safety Sensor Use approved devices complying with the relevant product standards,
regulations and rules in the country where it is used.
Relay with forcibly guided Use approved devices with forcibly guided contacts complying with
contacts EN 50205.
For feedback purpose use devices with contacts capable of switching
micro loads of 24VDC, 5mA.
Contactor Use contactors with forcibly guided mechanism to input the signal to
Feedback/Reset input of G9SE through the NC contact of the contactor.
For feedback purpose use devices with contacts capable of switching
micro loads of 24VDC, 5mA.
Failure to open contacts of a contactor cannot be detected by monitoring
its auxiliary NC contact without forcibly guided mechanism.
Other devices Evaluate whether devices used are appropriate to satisfy the requirements
of safety category level.

Precautions for Safe Use

(1) Use G9SE within an enclosure with IP54 protection or higher of IEC/EN60529.
(2) When ready for wiring, the power source should be disconnected rst. Further, at operating this unit, do not touch
the terminals in order to prevent an electrical shock.
(3) Do not apply any excessive voltage or current to the input or output circuit the G9SE. Doing so may result in damage
to the G9SE or cause a re.
(4) Incorrect wiring may lead to loss of safety function. Wire conductors correctly and verify the operation of G9SE
before commissioning the system in which G9SE is incorporated.
(5) Do not apply DC voltages exceeding the rated voltages, or AC voltages to G9SE.
(6) Use DC supply satisfying requirements below to prevent electric shock.
- DC power supply with double or reinforced insulation, for example, according to IED/EN60950 or EN50178 or
a transformer according to IEC/EN61558.
- DC supply satis es the requirement for class 2 circuits or limited voltage/current circuit stated in UL 508.
(7) The lifetime of G9SE depends on the conditions of switching of its outputs. Be sure to conduct its test operation
under actual operating conditions in advance and use it within appropriate switching cycles. Apply protection
circuitry against back electromotive force in case connecting inductive loads to safety outputs.
(8) Do not operate the G9SE with ammable or explosive gas. An arc with operation and the heat of relay will cause
a re or an explosion.
(9) Do not drop G9SE to the ground or , dismantle, repair, modify G9SE, otherwise an electric shock may occur or
the G9SE may malfunction . It may lead to loss of its safety functions.
(10) Use protective device (Fuse etc.) for short-circuit protection and ground fault protection, otherwise a re may occur
or the G9SE may malfunction.
(11) Auxiliary monitoring outputs are NOT safety outputs. Do not use auxiliary outputs as any safety output.
Such incorrect use causes loss of safety function of G9SE and its relevant system.
(12) After installation of G9SE, quali ed personnel should con rm the installation, and should conduct test
operations and maintenance.
The quali ed personnel should be quali ed and authorized to secure the safety on each phases of design,
installation, running, maintenance and disposal of system.
(13) A person in charge, who is familiar to the machine in which G9SE is to be installed, should conduct and verify
the installation.
(14) Perform daily and 6-month inspections for the G9SE. Otherwise, the system may fail to work properly,
resulting in serious injury. Turn OFF the signal to Safety input and make sure G9SE operates without fault by
checking the state of the LED indicator in inspection.
(15) Conformity to requirements of performance level is determined as an entire system. It is recommended to consult
a certi cation body regarding assessment of conformity to the required safety level.
(16) OMRON shall not be responsible for conformity with any safety standards regarding to customer's entire
system.
(17) Dispose of the Units according to local ordinances as they apply.

Precautions for Correct Use

(1) Handle with care
Do not drop G9SE to the ground or expose to excessive vibration or mechanical shocks. G9SE may be damaged
and may not function properly.
(2) Adhesion of solvent such as alcohol, thinner, trichloroethane or gasoline on the product should be
avoided. Such solvents make the marking on G9SE illegible and cause deterioration of parts.
(3) Conditions of storage
Do not store in such conditions stated below.
1) In direct sunlight
2) At ambient temperatures out of the range of -10 to 55 ℃
3) At relative humidity out of the range of 25% to 85% or under such temperature change that causes
condensation.
4) At atmospheric pressure out of the range 86 to 106 kPa.
5) In corrosive or combustible gases
6) With vibration or mechanical shocks out of the rated values.
7) Under splashing of water, oil, chemicals
8) In the atmosphere containing dust, saline or metal powder.
G9SE may be damaged and may not function properly.
(4) At least 50 mm above top face of G9SE and below bottom face of G9SE should be available to apply rated
current to outputs of G9SE and for enough ventilation.
(5) Mounting multiple units
When mounting multiple units close to each other, the rated current will be 3 A. Do not apply a current
higher than 3 A. If the output current is 3 A or more, make sure that there is a minimum distance of
10mm each between all adjacent G9SE units.
(6) DIN rail mounting
Mount G9SE to DIN rails with attachments (TYPE PFP-M, not incorporated to this product), not to
drop out of rails by vibration etc. especially when the length of DIN railing is short compared to the widths of G9SE.
(7) Wire correctly according to 8 Wiring.
(8) Use cables with length less than 100 m to connect to Safety Inputs, Feed-back/Reset inputs, respectively.
(9) G9SE may malfunction due to electro-magnetic disturbances. Be sure to connect the negative terminal of
DC power supply to ground. When using a DC power supply with light curtains, use DC power supply
which has no interruption by a power failure of 20 ms.
(10)This is a class A product. In residential areas it may cause radio interference, in which case the user may be
required to take adequate measures to reduce interference.
(11) Do NOT mix AC load and DC load to be switched in the following terminals.
- G9SE-201 : between 13-14 terminal and 23-24 terminal
- G9SE-401 : between 13-14 terminal and 23-24 terminal, 33-34 terminal and 43-44 terminal
- G9SE-221-T□ : between 13-14 terminal and 23-24 terminal, 37-38 terminal and 47-48 terminal
(12) Start entire system after more than 2s have passed since applying supply voltage to G9SE.
(13) Set the time duration of OFF-delay (Type G9SE-221-T□ )
1) Set the time duration of OFF-delay to an appropriate value
that does not cause the loss of safety function of system.
2) Set both of the two O -delay Time Preset Switches, one each
on the front and back, to the same value. When setting the
di erent value, it is detected as a fault.
After setting, make sure G9SE operating time is correct.
(14) To determine safety distance to hazards, take into account the
delay of Safety outputs caused by the following time:
1) Response time
2) Preset o -delay time and accuracy of o -delay time
(15) Before G9SE outputs become in ON-state, non-regular self-
diagnosis for Safety output circuit may be executed.
On this occasion, the operating noise of internal relays occurs.
(16) In the place subjected to strong vibration or shock, mount G9SE
to a mounting surface with screws and the screw mounting attachment.
Otherwise, G9SE may not function properly due to vibration or
mechanical shocks out of the rated values caused by sympathetic
vibration of G9SE and the mounting parts, and so on.
1

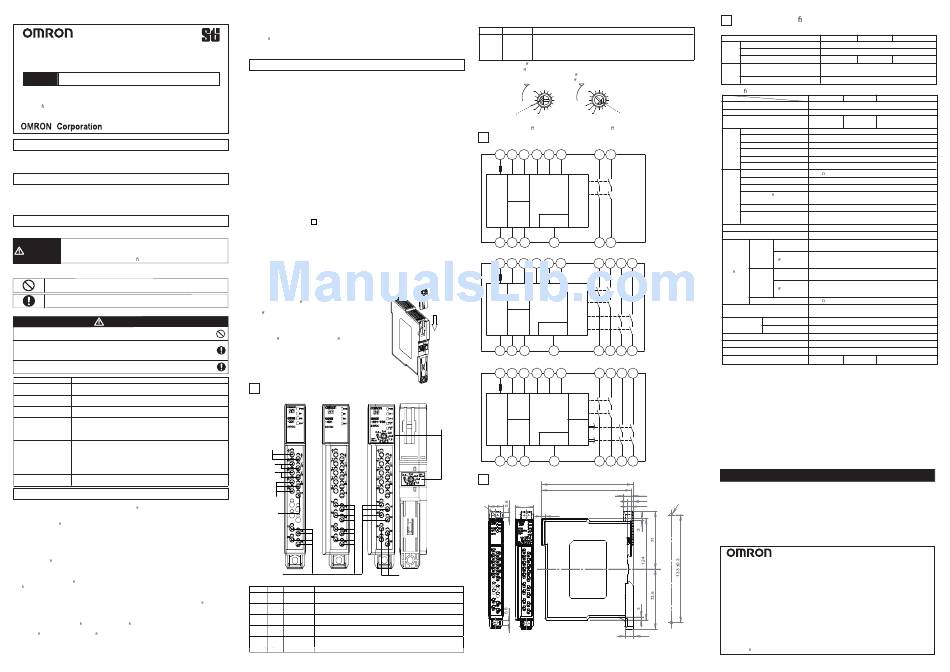

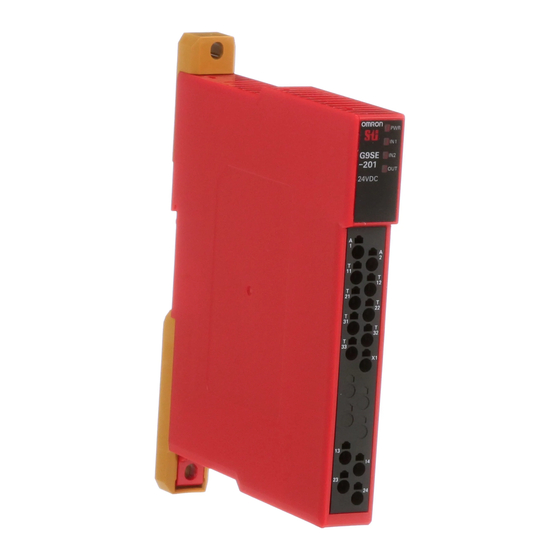

Appearance and Explanation of Each Parts

Type G9SE-221-T □
Type G9SE-401
Type G9SE-201
Power Supply
Safety Input1
Safety Input2
Reset/Feedback
Input
Auxiliary output
Safety Outputs
(Instantaneous) Safety Outputs (OFF-delay)
● LED Indicators
Marking Color
Name Function
Lights up while power is supplied.
Power supply
PWR Green
Blinks corresponding to the occurring error
Indicator
Lights up while high signal is input to T12
Safety Input
IN1 Orange
Blinks when error relating to Safety input #1 occurs.
#1 indicator
Lights up while high signal is input to T22
Safety Input
IN2 Orange
Blinks when error relating to Safety input #2 occurs.
#2 indicator
Lights up while Safety outputs (13-14, 23-24, 33-34, 43-44) are in ON-state.
OUT Safety Output
Orange
Blinks when an error relating to Safety output occurs.
OUT1 indicator
OFF-delayed
Lights up while off-delayed Safety outputs (37-38, 47-48) are in ON-state.
OUT2 Orange Safety Output
Blinks when an error relating to Safety off-delayed solid-state output occurs.
indicator
● Preset Switches (only applies to Type G9SE-221-T □ )
Change the value of the preset switches only when G9SE is disconnected from power supply.
Function Value
Name
Presets OFF-delay For Type G9SE-221-T05
OFF-delayed
0(default setting value)/0.1/0.2/0.3/0.4/0.5/0.6/0.7/0.8/1.0/1.5/2.0/2.5/3.0/4.0/5.0(s)(*2)
time (duplicate)
time preset
For Type G9SE-221-T30
switch (*1)
0(default setting value)/1/2/4/5/6/7/8/9/10/12/14/16/20/25/30(s)(*2)
(*1)
Set both of the two O -delay Time Preset Switches, one each on the front and back, to the same value.
When setting the di erent value, it is detected as a fault.
(*2) See following illustration for setting position of O -delay Time Preset Switch. Make sure that the direction of cutting
edge of preset switch is correctly pointed to the o -delay time value which must be set.
0.4 0.4
0.3 0.5 0.3 0.5
0.2 0.6 0.2 0.6
0.1 0.7
0.1 0.7
0
0 0.8
5.0 1.0
5.0 1.0
4.0 1.5 4.0 1.5
3.0
3.0 2.0 2.0
2.5 2.5
cutting edge
OFF-DELAY OFF-DELAY
ex.1) 0 second o -delay setting ex.2) 1.5 second o -delay setting
2

Internal Connection

● Type G9SE-201
A1 T11 T12 T31 T32 T33 13 23
Safety
Input 1
Reset/
Power
Safety
Feedback
supply
Outputs
Input
circuit
(instanta
Safety
neous)
Input 2
Auxiliary
Output
A2 T21 T22 X1 14 24
● Type G9SE-４01
A1 T11 T12 T31 T32 T33 13 23
Screw mounting
Safety
attachment
Input 1
Reset/ Safety
Power
Feedback Outputs
supply
Input (instanta
circuit
neous)
Safety
Insert
Input 2
Auxiliary
Output
A2 T21 T22 X1 14 24 34 44
● Type G9SE-221-T□
A1 T11 T12 T31 T32 T33 13 23
Safety
Safety
Outputs
Input 1
(instanta
Reset/
Power
neous)
OFF-delay Feedback
supply
time preset Input
circuit Safety
switch
Safety
Outputs
Input 2
Auxiliary (OFF-
delay)
Output
A2 T21 T22 X1 14 24 38 48
3

Dimensions

111.6
109
17.5
R2.3 22.5
4
Type G9SE-201 Type G9SE-401
Type G9SE-221-T□ Type G9SE-221-T□ Type G9SE-221-T□ Type G9SE-221-T□
4 Ratings and Speci cations
●Ratings
Item
Rated supply voltage
Power
Operating voltage range
input
Rated power consumption (See Note1)
Safety output
Outputs OFF-delayed Safety output
Auxiliary output
●Speci cations and performance
0.8
Operating time (OFF to ON state) (See Note2)
Response time (ON to OFF state) (See Note2)
cutting edge
Accuracy of OFF-delay time
Input current
ON voltage
OFF voltage
Inputs
OFF current
Maximum cable length
Reset input time
Contact resistance (See Note5)
Mechanical durability
Electrical durability
Contact
Switching speci cation for
outputs
Inductive load (IEC/EN60947-5-1)
Minimum applicable load
Conditional short-circuit current
(IEC/EN60947-5-1)
Pollution degree
Over voltage category (IEC/EN60664-1)
Impulse Between input
and output
withstand
voltage Between
(IEC/EN di erent poles
33 43
60947-5-1) of output
Insulation
Between input
speci cation
and output
Dielectric
Between
strength
di erent poles
of output
Insulation resistance
Vibration resistance (See Note7)
Mechanical
Destruction
shock resistance
Malfunction
(See Note7)
Surround Air Temperature
Ambient humidity
Degree of protection
Weight
Note:
37 47
(1) Power consumption of loads not included .
(2) This does not include the bounce time of internal relay in the G9SE.
(3) This is in normal operation. When executing non-regular self-diagnosis for Safety output circuit,
G9SE operating time become 500 ms max..
(4) This is initial value using the voltage-drop method with 1A at 5VDC.
(5) Use an 8A fuse that conforms to IEC 60127 as a short-circuit protection device. This fuse is not
included with the G9SE.
(6) Condition: G9SE is mounted to mounting surface with screw and the screw mounting attachment.
In the case of DIN rail mounting, mount DIN rail with G9SE to the place without big vibration.
(Amplitude guideline: Less than 0.15 mm half amplitude (0.3 mm double amplitude))
Suitability for Use
Omron Companies shall not be responsible for conformity with any standards, codes or regulations
which apply to the combination of the Product in the Buyer' s application or use of the Product. At
11.4
Buyer' s request, Omron will provide applicable third party certification documents identifying ratings
Two, 4.2 dia.
6.6 and limitations of use which apply to the Product. This information by itself is not sufficient for a
or M4
complete determination of the suitability of the Product in combination with the end product, machine,
4
system, or other application or use. Buyer shall be solely responsible for determining appropriateness
of the particular Product with respect to Buyer' s application, product or system. Buyer shall take
application responsibility in all cases.
NEVER USE THE PRODUCT FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR
PROPERTY OR IN LARGE QUANTITIES WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE
HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT(S) IS
PROPERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL
EQUIPMENT OR SYSTEM.
OMRON Corporation (Manufacturer)
Shiokoji Horikawa, Shimogyo-ku, Kyoto, 600-8530 JAPAN
Regional Headquarters
OMRON EUROPE B.V. (Importer in EU)
Wegalaan 67-69, 2132 JD Hoofddorp
The Netherlands
Tel: (31)2356-81-300/Fax: (31)2356-81-388
OMRON ASIA PACIFIC PTE. LTD.
No. 438A Alexandra Road # 05-05/08
(Lobby 2), Alexandra Technopark,
Singapore 119967
Tel: (65) 6835-3011/Fax: (65) 6835-2711
9.9 Mounting holes
Contact: www.ia.omron.com
[mm]
Note: Speci cations subject to change without notice.
G9SE-201 G9SE-401 G9SE-221-T□
24 VDC
-15% to 10% of rated supply voltage
3 W max. 4 W max. 4 W max.
Contact output
250 VAC 5 A 30 VDC 5 A (resistance load)
PNP transistor output Load current：100 mA DC max.
G9SE-201 G9SE-401 G9SE-221-T□
100 ms Max. (See Note3)
15 ms Max.
ー ー Within plus or minus 10% of
the set value (See Note4)
5 mA Min.
11 VDC Min.
5 VDC Max.
1 mA Max.
100 m Max.
250 ms Min.
100 m Max.
5,000,000 operations Min.
50,000 operations Min.
AC15: 240 VAC 2 A
DC13: 24 VDC 1.5 A
24 VDC 4 mA
100 A (See Note6)
2
Safety output: Class Ⅲ, the others: Class Ⅱ
6 kV
6 kV (between 13-14/23-24 and 33-34/43-44(37-38/47-48))
4 kV (between 13-14 and 23-24,
between 33-34(37-38) and 43-44(47-48))
2,200 VDC
1,500 VAC
100 M Min.
Frequency:10 to 55 to 10 Hz
Amplitude:0.35 mm half amplitude (0.7 mm double amplitude)
2
300 m/s
2
100 m/s
-10 to 55℃ (No freezing or condensation)
25% to 85%RH
IP20
approx. 150 g approx.180 g approx.180 g
OMRON SCIENTIFIC TECHNOLOGIES INC.
6550 Dumbarton Circle Fremont
CA 94555 U.S.A
Tel: (1) 510-608-3400/Fax: (1) 510-744-1442
OMRON (CHINA) CO., LTD.
Room 2211, Bank of China Tower,
200 Yin Cheng Zhong Road,
PuDong New Area, Shanghai, 200120, China
Tel: (86) 21-5037-2222/Fax: (86) 21-5037-2200
