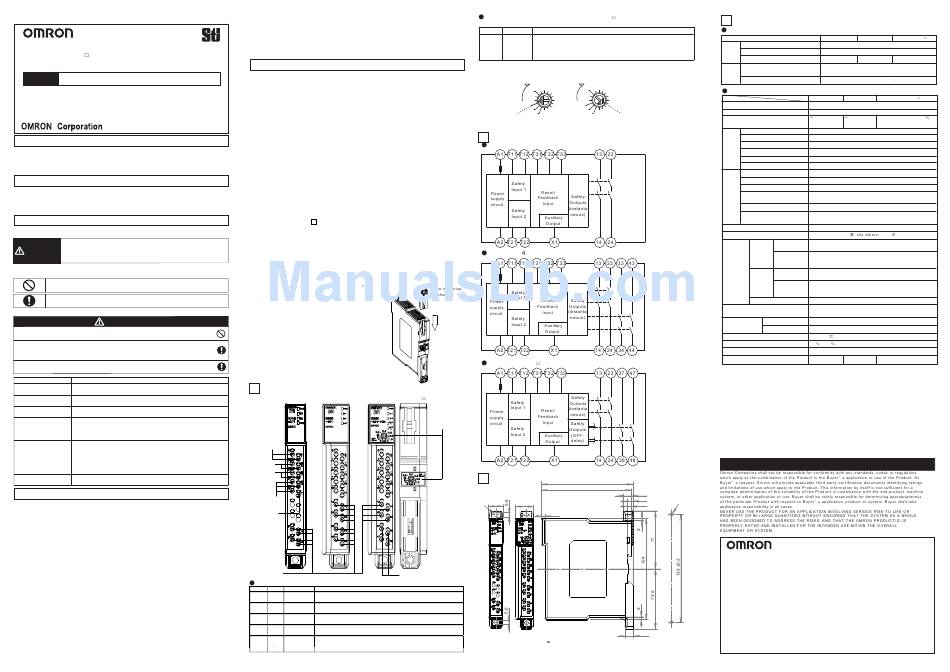

Omron G9SE-201 User Manual

Original instructions
Type G9SE-201 Type G9SE-401
Type G9SE-221-T
Safety Relay Unit
USER'S MANUAL
English
Thank you for purchasing G9SE Safety Relay Unit.
Please read and understand this manual before using the products.
Keep this manual ready to use whenever needed.
Only qualified person trained in professional electrical technique should handle G9SE.
Please consult your OMRON representative if you have any questions or comments.
4022078-4 C
EU/EC Declaration of Conformity
OMRON declares that G9SE series are in conformity with the requirements of the following
EU/EC Directives. If you need a complete Declaration of Conformity, please contact your
Omron representative:
- EMC Directive: 2004/108/EC, 2014/30/EU
- Machinery Directive: 2006/42/EC
Standards
G9SE series are designed and manufactured in accordance with the following standards:
- EN ISO13849-1: 2008 PL e Category 4
- IEC/EN 60947-5-1, - IEC/EN 62061 SIL3,
- EN81-1 - EN81-2
- UL508 - CAN/CSA C22.2 No.14 - GB14048.5
Precaution for Safe Use
Meanings of Signal Words
The following signal words are used in this manual.
Indicates a potentially hazardous situation which, if not avoided, will
result in minor or moderate injury, or may
WARNING
result in serious injury or death.
Additionally there may be significant property damage.
Meaning of Alert Symbols
The following alert symbols are used in this manual.
Indicates prohibited actions
Indicates mandatory actions
Alert Statements
WARNING
Serious injury may possibly occur due to breakdown of safety outputs.
Do not connect loads beyond the rated value to the safety outputs.
Serious injury may possibly occur due to loss of required safety functions.
Wire G9SE properly so that supply voltages or voltages for loads do NOT touch the
safety inputs accidentally or unintentionally.
Serious injury may possibly occur due to loss of safety functions.
Use appropriate devices referring to the information shown below.
Controlling Devices Requirements
Emergency stop switch Use approved devices with Direct Opening Mechanism complying with
IEC/EN 60947-5-1
Door interlocking switch Use approved devices with Direct Opening Mechanism complying with
Limit switch IEC/EN 60947-5-1 and capable of switching micro loads of 24VDC, 5mA.
Safety Sensor Use approved devices complying with the relevant product standards,
regulations and rules in the country where it is used.
Relay with forcibly guided Use approved devices with forcibly guided contacts complying with
contacts EN 50205.
For feedback purpose use devices with contacts capable of switching
micro loads of 24VDC, 5mA.
Contactor Use contactors with forcibly guided mechanism to input the signal to
Feedback/Reset input of G9SE through the NC contact of the contactor.
For feedback purpose use devices with contacts capable of switching
micro loads of 24VDC, 5mA.
Failure to open contacts of a contactor cannot be detected by monitoring
its auxiliary NC contact without forcibly guided mechanism.
Other devices Evaluate whether devices used are appropriate to satisfy the requirements
of safety category level.
Precautions for Safe Use
(1) Use G9SE within an enclosure with IP54 protection or higher of IEC/EN60529.
(2) When ready for wiring, the power source shall be disconnected first. Further, at operating this unit, do not touch
the terminals in order to prevent an electrical shock.
(3) Do not apply any excessive voltage or current to the input or output circuit the G9SE. Doing so may result in damage
to the G9SE or cause a fire.
(4) Incorrect wiring may lead to loss of safety function. Wire conductors correctly and verify the operation of G9SE
before commissioning the system in which G9SE is incorporated.
(5) Do not apply DC voltages exceeding the rated voltages, or AC voltages to G9SE.
(6) Use SELV/PELV DC porwer supply satisfying requirements below to prevent electric shock.
- DC power supply with double or reinforced insulation, for example, according to IEC/EN60950 or EN50178 or
a transformer according to IEC/EN61558.
- DC supply satisfies the requirement for class 2 circuits stated in UL 508.
(7) The lifetime of G9SE depends on the conditions of switching of its outputs. Be sure to conduct its test operation
under actual operating conditions in advance and use it within appropriate switching cycles. Apply protection
circuitry against back electromotive force in case connecting inductive loads to safety outputs.
(8) Do not operate the G9SE with flammable or explosive gas. An arc with operation and the heat of relay will cause
a fire or an explosion.
(9) Do not drop G9SE to the ground or dismantle, repair, modify G9SE, otherwise an electric shock may occur or
the G9SE may malfunction . It may lead to loss of its safety functions.
(10) Use protective device (Fuse etc.) for short-circuit protection and ground fault protection, otherwise a fire may occur
or the G9SE may malfunction.
(11) Auxiliary monitoring outputs are NOT safety outputs. Do not use auxiliary outputs as any safety output.
Such incorrect use causes loss of safety function of G9SE and its relevant system.
(12) After installation of G9SE, qualified personnel shall confirm the installation, and shall conduct test
operations and maintenance.
The qualified personnel shall be qualified and authorized to secure the safety on each phases of design,
installation, running, maintenance and disposal of system.
(13) A person in charge, who is familiar to the machine in which G9SE is to be installed, shall conduct and verify
the installation.
(14) Perform daily and 6-month inspections for the G9SE. Otherwise, the system may fail to work properly,
resulting in serious injury. Turn OFF the signal to Safety input and make sure G9SE operates without fault by
checking the state of the LED indicator in inspection.
(15) Conformity to requirements of performance level is determined as an entire system. It is recommended to consult
a certification body regarding assessment of conformity to the required safety level.
(16) OMRON shall not be responsible for conformity with any safety standards regarding to customer's entire
system.
(17) Dispose of the Units according to local ordinances as they apply.
Precautions for Correct Use
(1) Handle with care
Do not drop G9SE to the ground or expose to excessive vibration or mechanical shocks. G9SE may be damaged
and may not function properly.
(2) Adhesion of solvent such as alcohol, thinner, trichloroethane or gasoline on the product should be
avoided. Such solvents make the marking on G9SE illegible and cause deterioration of parts.
(3) Conditions of storage
Do not store in such conditions stated below.
1) In direct sunlight
2) At ambient temperatures out of the range of -10 to 55 ℃
3) At relative humidity out of the range of 25% to 85% or under such temperature change that causes
condensation.
4) At atmospheric pressure out of the range 86 to 106 kPa.
5) In corrosive or combustible gases
6) With vibration or mechanical shocks out of the rated values.
7) Under splashing of water, oil, chemicals
8) In the atmosphere containing dust, saline or metal powder and other conductive dusts.
G9SE may be damaged and may not function properly.
(4) At least 50 mm above top face of G9SE and below bottom face of G9SE should be available to apply rated
current to outputs of G9SE and for enough ventilation.
(5) Mounting multiple units
When mounting multiple units close to each other, the rated current will be 3 A. Do not apply a current
higher than 3 A. If the output current is 3 A or more, make sure that there is a minimum distance of
10mm each between all adjacent G9SE units.
(6) DIN rail mounting
Mount G9SE to DIN rails with attachments (TYPE PFP-M, not incorporated to this product), not to
drop out of rails by vibration etc. especially when the length of DIN railing is short compared to the widths of G9SE.
(7) Wire correctly according to 8 Wiring.
(8) Use cables with length less than 100 m to connect to Safety Inputs, Feed-back/Reset inputs, respectively.
(9) G9SE may malfunction due to electro-magnetic disturbances. Be sure to connect the negative terminal of
DC power supply to ground. When using a DC power supply with light curtains, use DC power supply
which has no interruption by a power failure of 20 ms.
(10)This is a class A product. In residential areas it may cause radio interference, in which case the user may be
required to take adequate measures to reduce interference.
(11) Do NOT mix AC load and DC load to be switched in the following terminals.
- G9SE-201 : between 13-14 terminal and 23-24 terminal
- G9SE-401 : between 13-14 terminal and 23-24 terminal, 33-34 terminal and 43-44 terminal
- G9SE-221-T : between 13-14 terminal and 23-24 terminal, 37-38 terminal and 47-48 terminal
(12) Start entire system after more than 2s have passed since applying supply voltage to G9SE.
(13) Set the time duration of OFF-delay (Type G9SE-221-T )
1) Set the time duration of OFF-delay to an appropriate value
that does not cause the loss of safety function of system.
2) Set both of the two Off-delay Time Preset Switches, one each
on the front and back, to the same value. When setting the
different value, it is detected as a fault.
After setting, make sure G9SE operating time is correct.
(14) To determine safety distance to hazards, take into account the
delay of Safety outputs caused by the following time:
1) Response time
2) Preset off-delay time and accuracy of off-delay time
(15) Before G9SE outputs become in ON-state, non-regular self-
diagnosis for Safety output circuit may be executed.
On this occasion, the operating noise of internal relays occurs.
(16) In the place subjected to strong vibration or shock, mount G9SE
to a mounting surface with screws and the screw mounting attachment.
Otherwise, G9SE may not function properly due to vibration or
mechanical shocks out of the rated values caused by sympathetic
vibration of G9SE and the mounting parts, and so on.
1
Appearance and Explanation of Each Parts
Type G9SE-201 Type G9SE-401 Type G9SE-221-T
Power Supply
Safety Input1
Safety Input2
Reset/Feedback
Input
Auxiliary output
Safety Outputs
(Instantaneous) Safety Outputs (OFF-delay)
LED Indicators
Marking Color Name Function
Power supply
Lights up while power is supplied.
PWR Green
Indicator Blinks corresponding to the occurring error
Safety Input
Lights up while high signal is input to T12
IN1 Orange
#1 indicator Blinks when error relating to Safety input #1 occurs.
Safety Input Lights up while high signal is input to T22
IN2 Orange
#2 indicator Blinks when error relating to Safety input #2 occurs.
OUT Safety Output Lights up while Safety outputs (13-14, 23-24, 33-34, 43-44) are in ON-state.
Orange
OUT1 indicator Blinks when an error relating to Safety output occurs.
OFF-delayed
Lights up while off-delayed Safety outputs (37-38, 47-48) are in ON-state.
OUT2 Orange Safety Output
Blinks when an error relating to Safety off-delayed solid-state output occurs.
indicator
Preset Switches (only applies to Type G9SE-221-T )
Change the value of the preset switches only when G9SE is disconnected from power supply.
Function Value
Name
Presets OFF-delay For Type G9SE-221-T05
OFF-delayed
0(default setting value)/0.1/0.2/0.3/0.4/0.5/0.6/0.7/0.8/1.0/1.5/2.0/2.5/3.0/4.0/5.0(s)(*2)
time (duplicate)
time preset
For Type G9SE-221-T30
switch (*1)
0(default setting value)/1/2/4/5/6/7/8/9/10/12/14/16/20/25/30(s)(*2)
(*1)
Set both of the two Off-delay Time Preset Switches, one each on the front and back, to the same value.
When setting the different value, it is detected as a fault.
(*2) See following illustration for setting position of Off-delay Time Preset Switch. Make sure that the direction of cutting
edge of preset switch is correctly pointed to the off-delay time value which must be set.
0.4 0.4
0.3 0.5 0.3 0.5
0.2 0.6
0.2 0.6
0.1 0.7 0.1 0.7
0 0.8 0 0.8
5.0 1.0 5.0 1.0
4.0 1.5 4.0 1.5
3.0 2.0 3.0 2.0
2.5 2.5
cutting edge
OFF-DELAY OFF-DELAY
ex.1) 0 second off-delay setting ex.2) 1.5 second off-delay setting
2 Internal Connection
Type G9SE-201
Type G9SE- 01
Insert
Type G9SE-221-T
OFF-delay
time preset
switch
3 Dimensions
111.6
109
17.5
R2.3 22.5
4
Type G9SE-201 Type G9SE-401
Type G9SE-221-T Type G9SE-221-T Type G9SE-221-T Type G9SE-221-T
4 Ratings and Specifications
Ratings
Item
Rated supply voltage
Power
Operating voltage range
input
Rated power consumption (See Note1)
Safety output
OFF-delayed Safety output
Outputs
Auxiliary output
Specifications and performance
Operating time (OFF to ON state) (See Note2)
Response time (ON to OFF state)
cutting edge
Accuracy of OFF-delay time
Input current
ON voltage
OFF voltage
Inputs
OFF current
Maximum cable length
Reset input time
Contact resistance (See Note4)
Mechanical durability
Electrical durability
Contact
Switching specification for
outputs
Inductive load (IEC/EN60947-5-1)
Minimum applicable load
Conditional short-circuit current
(IEC/EN60947-5-1)
Pollution degree
Over voltage category (IEC/EN60664-1)
Impulse Between input
and output
withstand
voltage Between
(IEC/EN different poles
60947-5-1) of output
Insulation
Between input
specification
and output
Dielectric
Between
strength
different poles
of output
Insulation resistance
Vibration resistance (See Note6)
Mechanical
Destruction
shock resistance
Malfunction
(See Note7)
Surrounding Air Temperature
Ambient humidity
Degree of protection
Weight
Note:
(1) Power consumption of loads not included .
(2) This does not include the bounce time of internal relay in the G9SE.
(3) This is in normal operation. When executing non-regular self-diagnosis for Safety output circuit,
G9SE operating time become 500 ms max..
(4) This is initial value using the voltage-drop method with 1A at 5VDC.
(5) Use for each contact output an 8A fuse that conforms to IEC 60127 as a short-circuit protection device.
This fuse is not included with the G9SE.
(6) Condition: G9SE is mounted to mounting surface with screw and the screw mounting attachment.
In the case of DIN rail mounting, mount DIN rail with G9SE to the place without big vibration.
(Amplitude guideline: Less than 0.15 mm half amplitude (0.3 mm double amplitude))
Suitability for Use
11.4
Two, 4.2 dia.
6.6
or M4
4
OMRON Corporation (Manufacturer)
Shiokoji Horikawa, Shimogyo-ku, Kyoto, 600-8530 JAPAN
Regional Headquarters
OMRON EUROPE B.V.
(Representative and Importer in EU)
Wegalaan 67-69, 2132 JD Hoofddorp
The Netherlands
OMRON ASIA PACIFIC PTE. LTD.
No. 438A Alexandra Road # 05-05/08
(Lobby 2), Alexandra Technopark,
Singapore 119967
Tel: (65) 6835-3011/Fax: (65) 6835-2711
9.9 Mounting holes
Contact: www.ia.omron.com
[mm]
Note: Specifications subject to change without notice.
G9SE-201 G9SE-401 G9SE-221-T
24 VDC
-15% to 10% of rated supply voltage
4 W max.
3 W max. 4 W max.
Contact output
250 VAC 5 A 30 VDC 5 A (resistive load)
PNP transistor output Load current 100 mA DC max.
G9SE-201 G9SE-401 G9SE-221-T
100 ms Max. (See Note3)
15 ms Max.
Within plus or minus 10 of
the set value
5 mA Min.
11 VDC Min.
5 VDC Max.
1 mA Max.
100 m Max.
250 ms Min.
100 mΩ Max.
5,000,000 operations Min.
50,000 operations Min.
AC15: 240 VAC 2 A
DC13: 24 VDC 1.5 A
24 VDC 4 mA
100 A (See Note5)
2
Safety output: Class Class
6 kV
6 kV (between 13-14/23-24 and 33-34/43-44(37-38/47-48))
4 kV (between 13-14 and 23-24,
between 33-34(37-38) and 43-44(47-48))
2,200 VDC
1,500 VAC
100 MΩ Min.
Frequency:10 to 55 to 10 Hz
Amplitude:0.35 mm half amplitude (0.7 mm double amplitude)
2
300 m/s
2
100 m/s
-10 to 55 (No freezing or condensation)
25 to 85 RH
IP20
approx. 150 g approx.180 g approx.180 g
Continued on back page
OMRON SCIENTIFIC TECHNOLOGIES INC.
6550 Dumbarton Circle Fremont
CA 94555 U.S.A
Tel: (1) 510-608-3400/Fax: (1) 510-744-1442
OMRON (CHINA) CO., LTD.
Room 2211, Bank of China Tower,
200 Yin Cheng Zhong Road,
PuDong New Area, Shanghai, 200120, China
Tel: (86) 21-5037-2222/Fax: (86) 21-5037-2200
