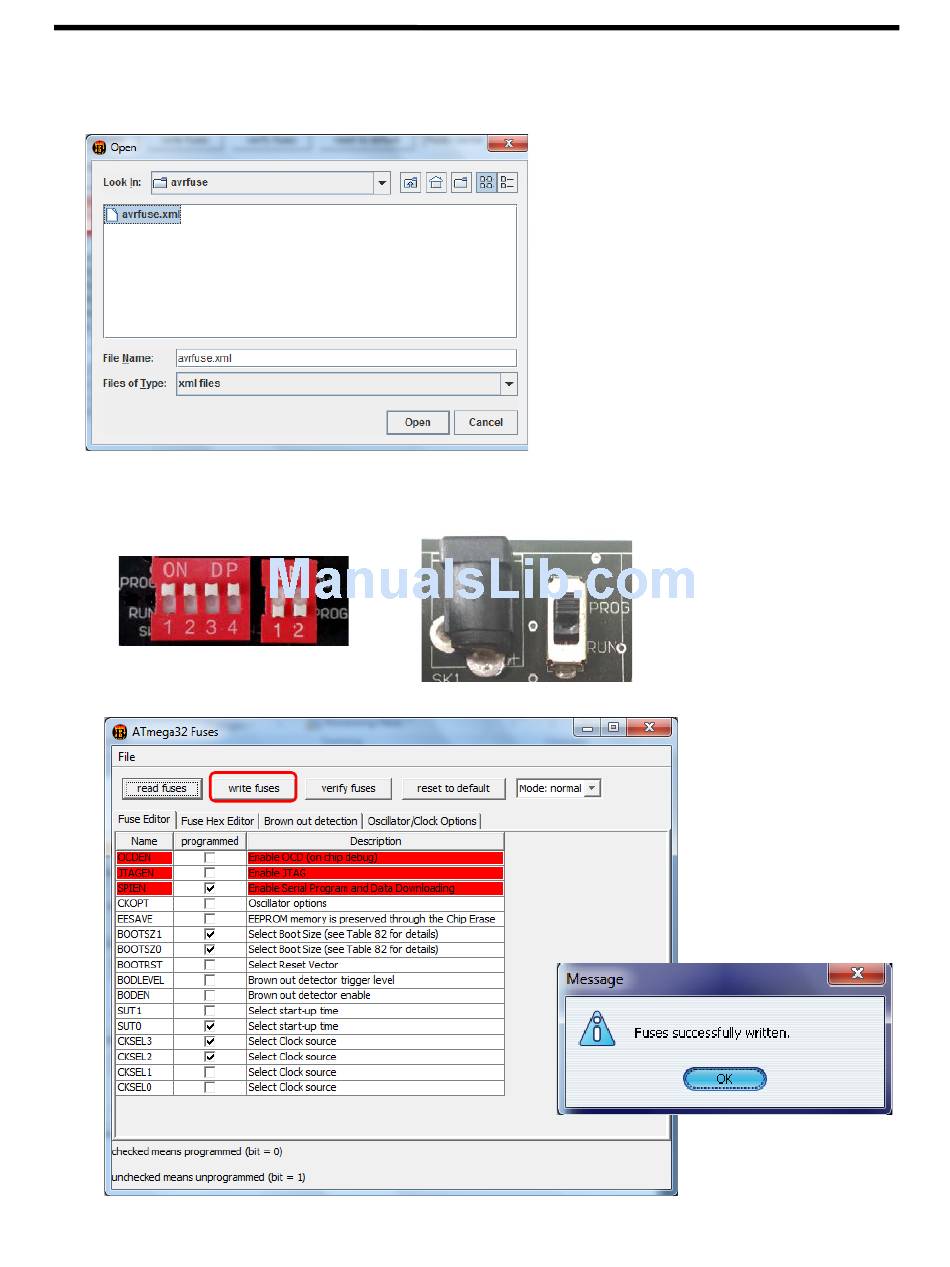

3. A "Open File Windows" will be pop out. Select the avrfuse.xml file from the "..avr\avrfuse"
directory. You may find this in the AVR Utilities CD supplied. Click "Open" to load the file.
4. Set the DIP Switches to PROG, set the slide switch to PROG. Then select "Write fuses". A
"Fuses successfully written" message will be pop up when finish write fuses.
Programmer DIP Switch
Setting
AVR Development Board – AVR-DK20A User Manual
Programmer Slide Switch
beside the DC power jack,
Switch to "PROG"
