Version 970 v2.2
A&W Food Services of Canada Inc.
POINT-OF-SALE (POS) JS970 SYSTEM
Before the Panasonic installation representative arrives at your restaurant, we require that
your restaurant personnel and contractor complete the pre-installation preparations
If you have a new store, or are in the process of remodeling, give this manual to your
construction supervisor, electrical engineer, contractor and electrician so that they may
incorporate the system's requirements into their construction plans.
It is your responsibility to provide the pre-installation
preparations before the Panasonic Representative
arrives. The system may not be installed if all the
preparations are not completed and
extra charges will be incurred.
Orion Mengistu 1-855-465-8912 ext 104 (Vancouver)

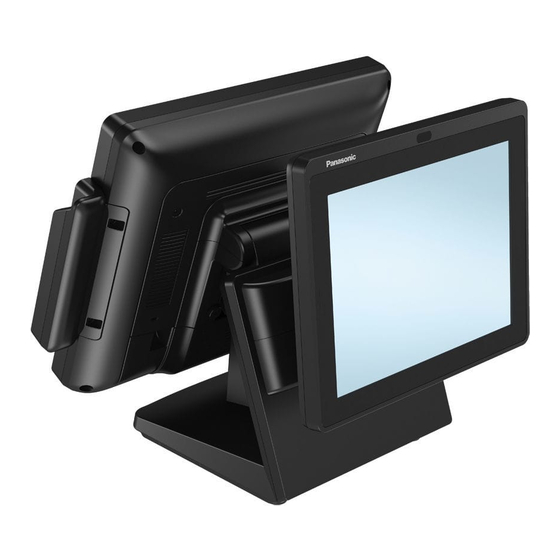

PANASONIC TOUCH SCREEN
PRE-INSTALLATION GUIDE
** IMPORTANT **
contained in this manual.
#108 – 20285 Stewart Crescent
Maple Ridge, BC V2X 8G1
E-mail:
omengistu@qsrsolutions.com
Advertisement
Table of Contents
Related Manuals for Panasonic JS970
Summary of Contents for Panasonic JS970
- Page 1 POINT-OF-SALE (POS) JS970 SYSTEM PRE-INSTALLATION GUIDE ** IMPORTANT ** Before the Panasonic installation representative arrives at your restaurant, we require that your restaurant personnel and contractor complete the pre-installation preparations contained in this manual. If you have a new store, or are in the process of remodeling, give this manual to your construction supervisor, electrical engineer, contractor and electrician so that they may incorporate the system’s requirements into their construction plans.
-
Page 2: Pre-Installation Requirements Checklist
A&W Food Services of Canada Inc. Pre-Installation Requirements Checklist Install the ORANGE ISOLATED GROUND (IG) electrical receptacles as per the enclosed specifications. Install the CAT5 data communications cable as per the enclosed specifications. Install a CAT5 data communications cable from the switch to the burger chute order printer. -
Page 3: Electrical Requirements
A&W Food Services of Canada Inc. ELECTRICAL REQUIREMENTS The most probable cause of a system malfunction is due to improper electrical wiring. The following electrical requirements MUST be met before the installation to prevent problems. The complete system, including touch screen terminals, video monitors, printers, kitchen video controller and the back office computer MUST be on a single DEDICATED circuit originating at the main breaker. -
Page 4: Cable Requirements
A&W Food Services of Canada Inc. CABLE REQUIREMENTS Another probable cause of a system malfunction is due to improper cable wiring. The following cabling requirements MUST be met before the installation to prevent problems. CABLING (TO BE COMPLETED BE THE GENERAL CONTRACTOR) *The cable supplied is not FT6 Plenum rating. -
Page 5: Wiring Diagrams
A&W Food Services of Canada Inc. Wiring Diagrams Diagram #1a – Touch Screen POS Network Drive-Thru CAT5e Communications Cable, BLUE WIRE OCB Display The Network rack, patch panel is located above the Manager’s desk on the top Leave 6’ of cable at each location for shelf or on the top of the cabinet. -
Page 6: E-Pic Video
A&W Food Services of Canada Inc. Diagram #1b – Kitchen Video Subsystem ** IMPORTANT NOTE ** The CAT5 BLACK cable is for the video monitors CAT5 Black Video Cable CAT5 White Bump Bar Cable The Video Splitter and E-Pic Video 30’Audio Cable Controller are usually located above the Manager’s desk on the top shelf or on the... - Page 7 A&W Food Services of Canada Inc. Drive-thru Speaker Post Display Unit Dimensions 13.8125W, 10.125H, 1.125D Dimensions are in inches. Speaker Post Dimensions 19.0W, 52.0H, 11.0D Dimensions are in inches. Electrical Requirements 24VAC power adaptor at the speaker post ...
- Page 8 A&W Food Services of Canada Inc. Network Rack Port Assignment 24 Port KEYSTONE 48PORT Device/Equipment Switch Router CUT OUT PANEL ADSL or Cable Modem Back Office PC 192.168.11.11 Port #1 Port #10 Touch Screen Terminal #1 192.168.11.81 Port #1 Port #1 Touch Screen Terminal #2 192.168.11.82 Port #2...
