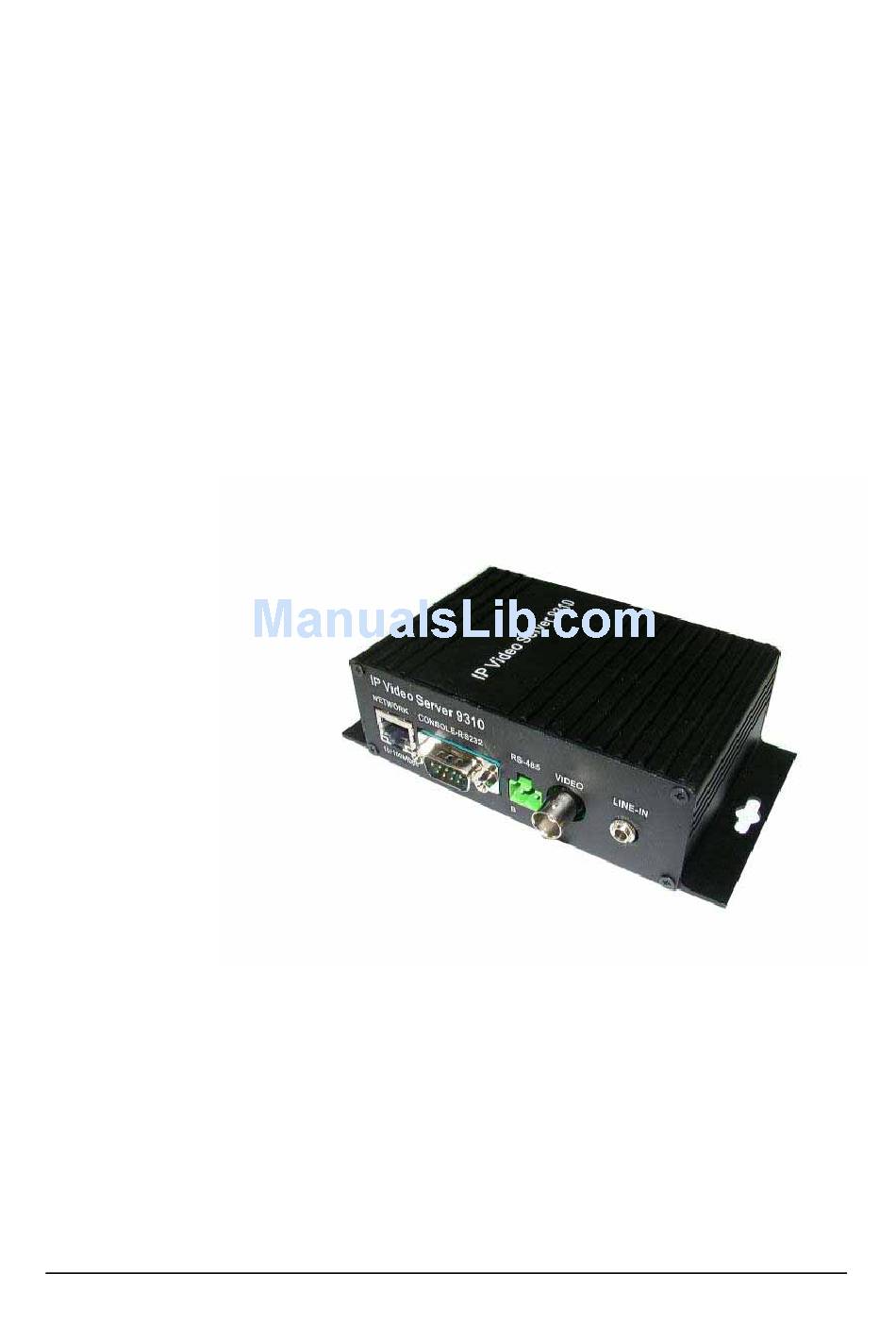

  • Page 1 IP SERVER 9310 User Manual...
  • Page 2 IP SERVER 9310 USER MANUAL USER MANUAL IP Server 9310 Version: 1.0 2007.3 - 1 -...
  • Page 3 IMPORTANT NOTICE IP SERVER 9310 is deigned on the fundamental principle of learning in kit. 2. IP SERVER 9310 is deigned to be used in-door, we have no responsibility for the possible damage in out-door use especially in the rain.

  • Page 4: Table Of Contents

    IP SERVER 9310 USER MANUAL Table of Content 1. INTRODUCTION ......................4 ：........................EATURES BEFORE YOU START .................... 5 9310 ....................PACKAGE CONTENTS ..................INIMUM YSTEM EQUIREMENTS 3. INTERFACE DESCRIPTION ..................6 HARDWARE & SOFTWARE INSTALLATION ........... 7 ....................ARDWARE INSTALLATION ....................

  • Page 5: Introduction

    IP SERVER 9310 USER MANUAL 1. Introduction Depending on the built-in IP network server in 9310, you can transmit the input video and audio to the network through an IP address. User can easily achieve security protection, children or sickroom nursing, long-distance teaching, TV play, video game through the standard network browser (such as IE).

  • Page 6: Before You Start

    *Sensitivity ratio adjustable 2. Before you start 9310 package contents ＊ One set of IP Server 9310 ＊ One network wire with RJ45 port ＊ One 110~220V adaptor ＊ One composite video cable (yellow) ＊ One 3.5Φ audio terminal ＊...

  • Page 7: Minimum System Requirements

    Internet network (Ethernet, ADSL or other ways, depends on whether you need far end control ability or not) 3. Interface Description The front panel of 9310 :( from left to right) 1. RJ45 network port 2. RS-232 port 3. PTZ control(RS-485) port 4.

  • Page 8: Hardware & Software Installation

    IP SERVER 9310 USER MANUAL 4. Hardware & Software installation Before you star to use IP SERVER 9310, please follow the steps below: Check the package to make sure the contents is complete. Prepare one Ethernet HUB, or Router Check the voltage of the power supply to make sure it is AC 110-240 volt...

  • Page 9: Initial Settings

    5. Initial Settings Initial settings through the Ethernet Please make sure that the 9310 is power on and has been connected to the Ethernet, and the PC installed ipEdit.exe is in the same network. Double click the ipEdit.exe in the desktop.
  • Page 10 IP SERVER 9310 USER MANUAL 3. Click the equipment you want to edit, its name will turn dark and its name and IP address will display in the little window below. You can rename (please use numbers and letters only), set the IP address and subnet mask (please set it in the same network as the pc you want to connect to).
  • Page 11 IPEDIT visit the network first. 1. Click the IP of 9310, it will turn dark and its name, IP, gateway, subnet mask will display in the right window. You must configure the IP of PC in the LAN to be in the same subnet so that you can open the IE interface.

  • Page 12: Search 9310 In Internet

    IP SERVER 9310 USER MANUAL 2. Search 9310 in INTERNET After you finish setting a correct IP setting for 9310 and connect it to internet, 9310 will send data to the preset IP server, report the IP address of 9310 (as the figure shows, you need to open the IP server option and set the IP address of IP server properly).

  • Page 13: Webpage Function Introduce

    IP SERVER 9310 USER MANUAL 6. Webpage Function Introduce After you have set the IP configuration of 9310 with IPEDIT, you can achieve all kinds of settings of 9310 through IE. Click the corresponding 9310 video directly in the IPEDIT window you can open the IE login interface of 9310.

  • Page 14: Image Settings

    IP SERVER 9310 USER MANUAL Image Settings There are four setting slides on the left of webpage which are used to set the image parameters. 1. Brightness Control Shift the slide’s position under the Brightness Control, the value on the right side will change along with that, so you can set the brightness of image.

  • Page 15: Ptz Control

    IP SERVER 9310 USER MANUAL PTZ Control User can control the movement of special CCTV camera through the RS485 interface of 9310. Clicking the direction button in PTZ control area under the image setting area, user can control the movement of camera. Click the stop button in the middle of PTZ control user can stop the movement of camera.

  • Page 16: Real Time Video Play, Stop And Stop Snap Function

    When user are using the other function of PC, you can stop transfer video first to lower the load of cpu and convenient for operation. You can record AV format video file defined by 9310 using RecAV function, you can also record standard AVI format video file using RecAVI function. The RecAV button will turn bright orange when recording, the Status on the right will become bright orange too.

  • Page 17: Play The Recorded Video

    Click the REC View button on the left upside, a new webpage as the figure below shows will appear. User can find the video file you want to play on the browser column on the upside of the webpage (AV format video file recorded by 9310 only). Click the play button to start playing.

  • Page 18: Basic Configuration

    Click the Basic configuration button, the webpage will change as the figure below shows: Status Report Click the STATUS button, a webpage will pop up to report the status of 9310, including the version of firmware, IP parameters and OCX parameter of activeX control etc. User Management Click the Administrator button on the left side, the user management webpage will pop up.
  • Page 19 IP SERVER 9310 USER MANUAL 1. Remove user：Select a user and click Remove button can remove this user. 2. Add user：Use the Add button, a new area will appear in the webpage as the figure below shows. After filling in the new name, password, user group and click Add button, you can add a new user.

  • Page 20: Change Password

    2. We suggest you change the user’s password once you begin to use 9310. 3. We suggest you set a particular name for your 9310 if you use the IP server function at the same time, in order to be convenient for searching.
  • Page 21 The IP address of 9310 should be in the same subnet with the PC you want to visit 9310 in the LAN. For example, IP address of the PC you plan to visit the video of 9310 is 192.168.10.155, so the IP address of 9310 should be set to 192.168.10.x(x=1~254, and can not be the same with the exits IP address).

  • Page 22: Pppoe Configuration

    Reset button to restart the equipment in order to start the new configurations. PPPOE Configuration If you want your 9310 to dial and connect to the internet automatically, you need to finish the PPPoE configuration. Click the PPPOE option and you can enter the PPPoE configuration webpage.

  • Page 23: Date & Time Settings

    IP SERVER 9310 USER MANUAL The status of PPPOE is displayed on the bottom of the webpage and you can check the status of PPPOE. The parameters will refresh when you click the Refresh button. Date & Time Settings Click the DATE&TIME option as the figure bellow shows you can enter the Date &...

  • Page 24: Video Settings

    IP SERVER 9310 USER MANUAL 2. NTP Server settings： If you want to adjust the time of 9310 with NTP server, please fill the address of NTP servers. 3. Update Server Time： You can choose to update server time via the NTP server, or input the time manually then click the Update button to finish the update.
  • Page 25 9310 will set that parameter for you automatically. If you disable the auto mode, 9310 will set the video transfer speed as following: Tune: Adjust according to the Frame rate or QP (Quality of Picture) Internet Speed: choose according to the speed you apply for your ISP.
  • Page 26 You can choose the path that the snapped images will be saved to, whether put a time label on the snapped images and the label color. 7. OSD Setting： You can choose whether enable the OSD on the video played by 9310 and the content, position, color, font size of OSD. 8. Video Recording Setting：...

  • Page 27: Audio Settings

    IP SERVER 9310 USER MANUAL You can choose the directory that the record file will be saved to, the record duration time, whether enable the record time label and the label color in this area. NOTICE： After finishing above configurations, you should click the Save button to save those configurations and click the Reset button to restart the equipment in order to start the new configurations.

  • Page 28: Advance Configuration

    IP SERVER 9310 USER MANUAL 6. 5 Advance Configuration Click the advance configuration option you can enter the advance configuration menu. Maintenance Function Click the maintenance option you can enter the maintenance webpage, you can restart, get back to original factory settings and update the firmware here.
  • Page 29 1. Restart： Click the Restart button，9310 will restart automatically. 2.Restore： Click the Restore button, 9310 will reset all parameters in MPEG option, except the IP parameters, to the original factory settings. 3.Default： Click the default button, 9310 will reset all parameters to the original factory settings.

  • Page 30: Dynamic Dns Setting

    When you use 9310 connect to the internet through the method such as ADSL, the IP address obtained by 9310 is dynamic distribute by your ISP. So the visitor may not be able to visit 9310 because he does not know the IP address of 9310. We use the dynamic DNS (DDNS) service provided by www.DynDNS.org...

  • Page 31: Smtp Setting

    SMTP Setting 9310 can obtain internet IP address via e-mail, can report its IP address after power on via e-mail, can send the snapped images to preset mailbox when the motion detection is trigged or on the preset time.

  • Page 32: Ftp Setting

    The directory 9310 under the root directory of ftp server is used to store the images and video files of 9310. User name is 9310test and password is xxxxx. So you should fill in the settings as the following figure shows.

  • Page 33: Gpio Settings

    IP SERVER 9310 USER MANUAL GPIO Settings Click the GPIO option and you can enter the GPIO settings webpage to set the GPIO output voltage level control. ＊We can provide 4 DO currently but we will provide other 2 DI in the future, please pay attention to our website.

  • Page 34: Ip Server Settings

    IP address of your 9310 through the free IP server provided by our company. Sometimes user can not obtain the internet IP of their 9310 which is dial up to the internet. The DDNS service sometimes does not work normally. At this moment you can search the name of your 9310 to know its internet IP address through the IP server provided by our company for free.

  • Page 35: Snap Shot Schedule

    2. Interval to snap shot As the following figure shows 9310 will snap shot every 10 minutes. 3. Work Time As the following figure shows the snap shot take place during 17:30 to 08:30 in the next day.(this option will work only if the snap shot option is selected)

  • Page 36: Faq

    A2: Please update your IE to version 6.0. Q3: why the video recording can not stop immediately? A3: if your 9310 obtain its IP address through DHCP server, the video recording will stop immediately. But if 9310 use fixed IP address or obtain its IP through PPPOE method, you need to wait for about one second.
