IP Video 9100(B)
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9100(B) and is the answer not in the manual?

Questions and answers

Related Manuals for Aviosys 9100(B)

Summary of Contents for Aviosys 9100(B)

  • Page 1 IP Video 9100(B) User Guide...

  • Page 2: User Guide

    IP VIDEO 9100 & 9100B PLUS USER MANUAL User Guide IP Video 9100(B) Manual version: 2.38 Date: NOV, 2006 - 1 - VER. 2.32,...
  • Page 3 Caution: Any changes or modifications not approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for FCC and CE. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in commercial environment.

  • Page 4: Table Of Contents

    IP VIDEO 9100 & 9100B PLUS USER MANUAL Table of Contents 1. PRODUCT OVERVIEW....................4 ...................... FEATURES 2. PHYSICAL DESCRIPTION ..................5 ........................SPECIFICATION ..................SYSTEM MINIMUM REQUIRNMENT 3. PANEL DESCRIPTION…………………………………………………………………6 ……………………………………………………………………………… FRONT PANEL ……………………………………………………………………………….. BACK PANEL 4. INSTALLATION………………………………………………………………………..7 ........................PREPERATION ....................

  • Page 5: Product Overview

    1. Product Overview IP Video 9100(B) has an IP digital web server inside. With this great gadget you can put up 4 different sources with only one set of IP, for example (live security observing, online education, TV shows, video games and etc) make remote locations immediately accessible through standard web browsers.

  • Page 6: Physical Description

    IP VIDEO 9100 & 9100B PLUS USER MANUAL 2. Physical Description BOX CONTENT IP Video 9100 package content： IP Video 9100(B) 1 x RJ 45 internet line 1 x DC Power adopter (110~240V) 2 x Composite Cable (RCA jacks) 4 x BNC to RCA jacks 1 x CD (a.

  • Page 7: Panel Description

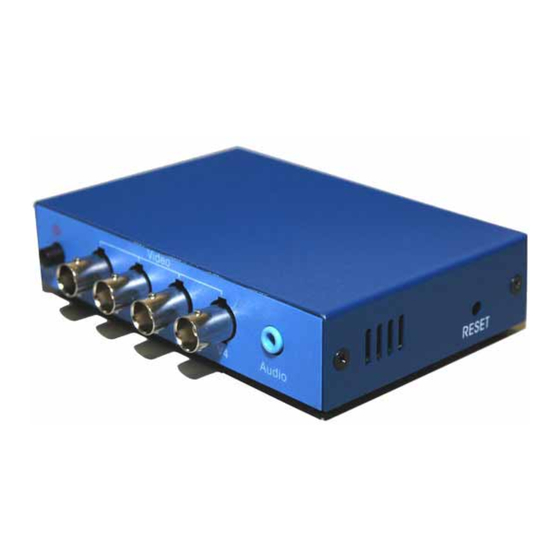

    3. Panel Description Back Panel: from left to right: 1. Power On / Off 2. 4 Video Input 3. Audio input 4. Reset Button Side Panel: 1. DC Power - 5V, 110 ~ 240. 2. Network - RJ 45 - 6 -...

  • Page 8: Installation

    IP VIDEO 9100 & 9100B PLUS USER MANUAL 4. Installation Before using IP Video 9100(B), follow bellow: Before installation: Reconfirm your package content Prepare a Hub for Internet monitor Electricity 110 ~ 240 V Hardware installation 1. Plug in IP Video 9100(B) Power 2.
  • Page 9 SOFTWARE INSTALLER Please follow the steps below to install the software. 1. Insert the CD in package and windows will auto-run. If not please browser the file Autorun.html in CD. Chose the langrage you can read. 2. Click IP KamVid 1070 in driver of CD and click OPEN top install the driver procedure.
  • Page 10 IP VIDEO 9100 & 9100B PLUS USER MANUAL 2. User can change its name (please use numbers or letter) or IP (please set in the same subnet as your PC) in the text windows. Then click Submit after setting finish. After about 20 seconds, the new setting will work.
  • Page 11 IP_ KAM VID_ 1070 After connecting the power and RJ 45 line, following the steps below to install the software. Step 1: Install IP KAM by executes Setup.exe in the CD; choose setup language and the install shield Wizard will help finish the program. Step 2: Then you can see shortcut icon “IP KamVid 1070 “on desktop, click this icon.
  • Page 12 IP VIDEO 9100 & 9100B PLUS USER MANUAL NOTE: 1. After you have installed IP 9100(B) on your PC, the IP 9100(B) was registered in DirectX. IP9000A can be used as local camera by any software that supported DirectX, such as MSN, Amcap, Media encoder, Yahoo Messenger as long as you not change the directory path of ipcam’s driver.
  • Page 13 Work with Yahoo /MSN Messenger 1. Work with Yahoo /MSN Messenger: We use Yahoo for instance. Select the friend you would like to send your video. For instance, we pick up YahooHelper. - 12 -...
  • Page 14 IP VIDEO 9100 & 9100B PLUS USER MANUAL 2. Choose Webcam then system will ask your Internet connecting speed. 4. You can type in appointed IP address (No matter Real IP or Dynamic IP) and confirm by click “Add” and choose if reverse the out streaming video. We support A.
  • Page 15 If the video is upside down, you can choose D to get rotate video. And also adjust the video color ; Brightness, contrast, Hue, Saturation, Sharpness Note 1 : for safety issue , as transfer video by Yahoo /MSN, only Administrator can do the video streaming.
  • Page 16 IP VIDEO 9100 & 9100B PLUS USER MANUAL 1-1 : Using Still IP: list your still IP address 1-2 : Choose “Reboot immediately”. Please close your browser and reboot again and type in your IP address once again. If using DHCP, please choose‘ Automatically by DHCP” *And please use IP EDITOR program (Find users exact IP) that’s included in the CD ROM 2.
  • Page 17 2-1 Enter your user name, password, mail server, mail name (pass word), sender e-mail, and receiver e-mail. 2-2 Choose Save & Dial Now, by using PPPoE it can automatically dial to your ISP, and ISP will provide exact IP address in your mail. 2-3 Turn off your browser of IP Video 9100(B) and restart - 16 -...

  • Page 18: Function

    IP VIDEO 9100 & 9100B PLUS USER MANUAL 6. Functions Please refer to all the function on the left side of IP Video 9100(B) AP; most of its configuration can only be use by Administrator. Functions: 1. IP address 2. Change Password 3.

  • Page 19: Motion Detection Function

    Operation Mode: Continues mode: Video will display continues Period – Video will refresh per millisecond or per second. . 6. View Log – view which IP has been visiting your Live image Note: View/Log / Camera Window As in View Log, the video will not show on windows, to get the video back Please click Camera Window.
  • Page 20 IP VIDEO 9100 & 9100B PLUS USER MANUAL System Setting: Setup Name , Time , show on Windows, The Interval (MS ) means the interval range for IP Video to end picture at mini second. 7-1-1 : Camera name, time and date setup Note: maximum 18 English characyters 7-1-2 : Http Port setup : For customer with IP Sharer device can setup the share port...
  • Page 21 7-1-3 : Reset to factory configuration 7-1-4 : Restart IP Video 9100(B) -1-5 : Renew its firmware : Please note the updat eprocedure can not be int errupt or the sdeviece wourl be not be work probably. 7-2. User Management: Can choose user authorization require optio Choose if viewers need a password or not.
  • Page 22 IP VIDEO 9100 & 9100B PLUS USER MANUAL 7-3-1: Choose motion detection: *Disable – no detection. *Enable: choose – Low / Mid / High -3-1-1: Motion Detection Setup: Fill sender mail and receiver mail. 7-3-1-2 : When send to FTP, please fill in its FTP server address, user name, password, accoun t and upload path,...
  • Page 23 7-3-1-3 :Note setting : Future support. -4 Network setting : Please refer in page 14. 7-5 . Audio : Only Administrator can enable and disable the audio . If audio i on, both administrator and gues user can hear the audio, if th audio is off, both administrator and guest can not hear the...
  • Page 24 IP VIDEO 9100 & 9100B PLUS USER MANUAL 9. Video Window: after click, the left screen ill back to Monitor video. 10. When right click mouse, it can also use: View Splits Rotate Resolution Image Recording Save picture 10-1 View Resizable: adjust screen size.
  • Page 25 Rotate 0 Rotate 180 10-4 Quality: High Medium Clarity Motion 10-5 Resolution 640*480, 352*288 , 320*240, 176*144, 160*120 10-6 Image Recording Record image to JPEG and AVI file. Both format can be recorded in the same time. JPEG: can select how many pictures taken in each file.
  • Page 26 IP VIDEO 9100 & 9100B PLUS USER MANUAL 10-6-1 Recording AVI Select save as AVI, and then select the maximum number of frame in each file. Note: If select No limit, it will continue recording until it used up all memory space.
  • Page 27 12. Firmware update User can update the firmware. First, click Firmware update and it will pop up Firmware Update window. Then, click Browser to select the new firmware. At last, click Upload to update the firmware. - 26 -...

  • Page 28: Other Functions

    IP VIDEO 9100 & 9100B PLUS USER MANUAL 7. Other Functions 1. IP Video 9100 can view 9 different IP at the same time. .基1-1 Adding IP Address A. Add in another IP address Please add in a different IP in “...

  • Page 29: Administrator

    ８. Authorization In IP Video 9100(B) factory set up: factory setting Username: administrator Password: 1234 *Is recommended to change its factory setting password and user name 1. Administrator: Change Password: Camera Control: (Quality) - Low, High, Advance (Resolution) - 640*480, 352*288, 320*240, 176*144 &...

  • Page 30: Caution

    IP VIDEO 9100 & 9100B PLUS USER MANUAL Users entered IP Video 9100(B) ’s AP, it will automatically request for Administrator’s Password. If user or other visitors don’t have the rights to use Administrator authorization password, press, “CANCEL” to ignore the inquiry. Note: IP Video’s AP confirming Administrator Non-administrator enter “system,...
